Tractor · 2008Unverified

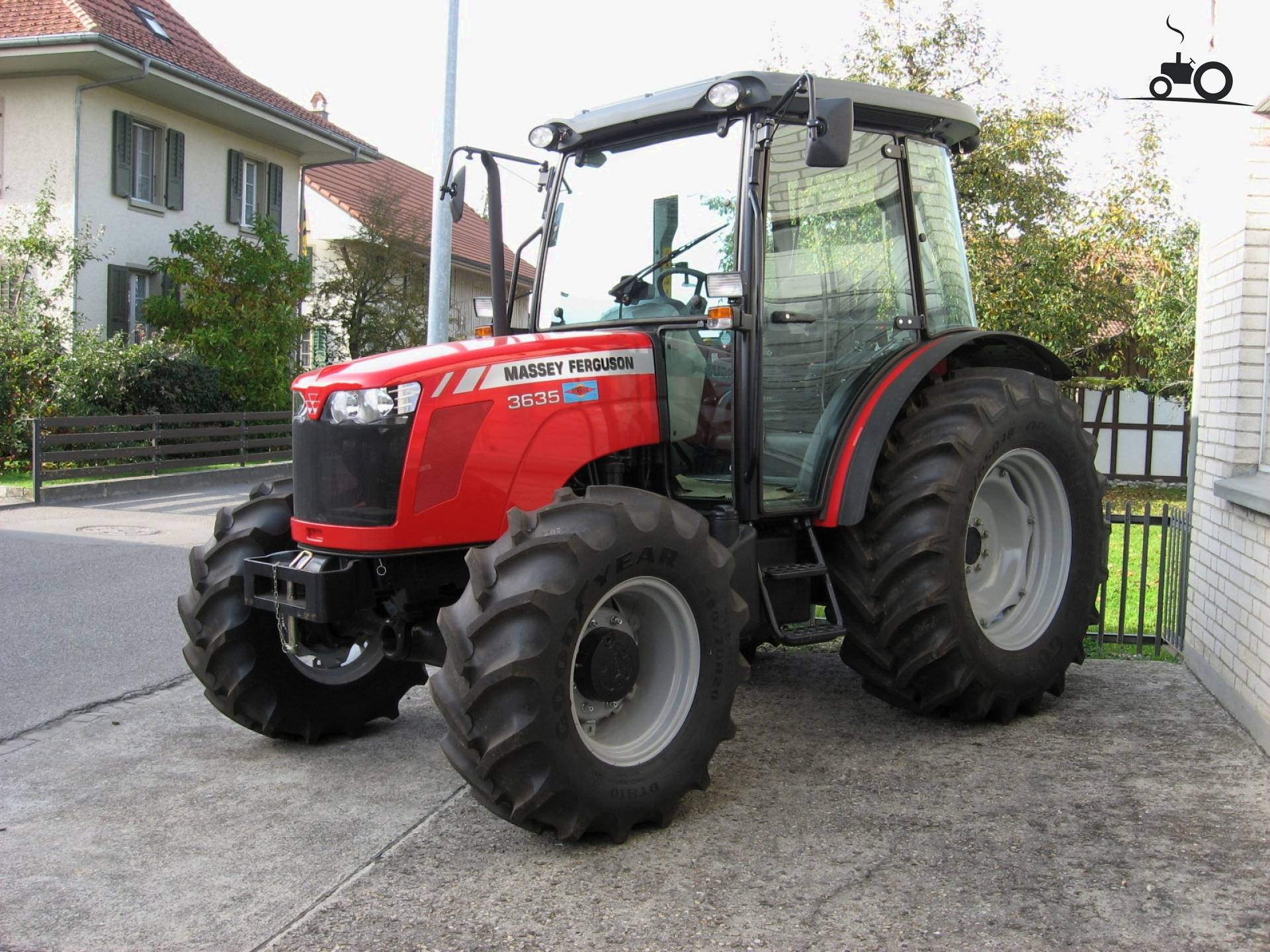

Massey Ferguson 3635 V
Massey Ferguson 3635 V — Agritalia built · 80 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
80 hp
Hover a source tag to verify
Overview
DistributorMassey FergusonReference
ManufacturerAgritaliaReference
Built in Rovigo, ItalyReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Variants
3635standard tractorReference
3635 Fflex version, narrowReference
3635 Sspecial version, extra narrowReference
3635 Vvineyard version, ultra-narrowReference
3635 GEground effect version, low profileReference
Engine
AGCO SisuDiesel 3.3L dieselReference
Fuel tank70.0 LReference
Engine59.7 kWReference
AGCO SisuDiesel 33DTAReference
turbocharged intercooled dieselReference
liquid-cooledReference
Displacement3.3 LReference
EmissionsTier 3Reference
Power59.7 kWReference
Air cleanerdual dry elementReference
Rated RPM2,200Reference
Starter typeelectricReference
Transmission
12-speed synchronized shuttleReference
24-speed synchronized shuttleReference
24-speed power shuttleReference
24-speed synchronized shuttle with partial power shiftReference
Typesynchronized shuttleReference
Gears12 forward and reverseReference
Gears24 forward and reverseReference
TransmissionPowerShuttleReference
Typepower shuttleReference
TransmissionSpeedShiftReference
Typesynchronized shuttle with partial power shiftReference
PTO & Hydraulics
Pressure190.0 barReference
Rear valves2 to 3Reference
Mid valves2 (optional)Reference
Front valves2 or 4 (optional)Reference
Pump flow48.1 lpmReference
Pump flow62.1 lpmReference
Rear TypeII/IReference
Rear lift (at ends)2500 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Rear PTO Type540/540E (optional)Reference
Rear PTO Type540/1000 (optional)Reference
Rear PTO Typeground (optional)Reference
Dimensions
Wheelbase215 cmReference
Front tire6.00R16Reference
Rear tire360/70R24Reference
Ag front6.00R16 (2WD)Reference
Ag front6.50R16 (4WD)Reference
Ag rear360/70R24 (2WD)Reference
Ag rear11.2R28 (4WD)Reference
Length398 cmReference
Width100 cmReference
Height (cab)230 cmReference
Front tread98 to 137 cmReference
Front tread88 to 100 cmReference
Rear tread89 to 129 cmReference
Rear tread85 to 125 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
