Tractor · 2011Unverified

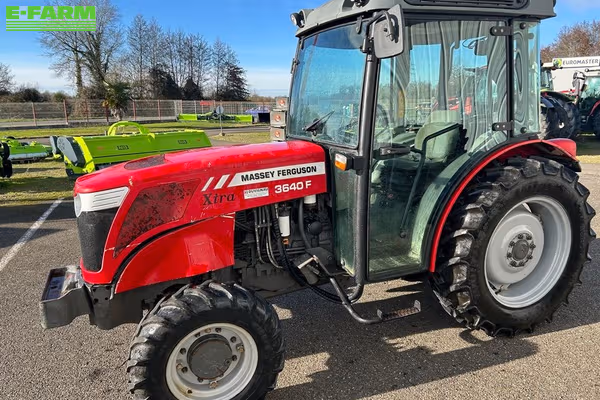

Massey Ferguson 3640F
Massey Ferguson 3640F — Utility tractor · 84 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
84 hp
Weight
6085 to 6559 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Utility tractorReference
Two- or four-wheel driveReference
Differential lockelectro-hydraulic rearReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Two-post ROPS. Cab available with air-condtioning.Reference
Variants
3640AstandardReference
3640FflexReference
3640SspecialReference
3640VvineyardReference
3640GEground effectReference
Engine
AGCO Power 3.3L 3-cyl dieselReference
Fuel tank68.1 LReference
Engine (gross)62.6 kWReference
AGCO Power 33CTAReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke108 x 120 mmReference
Power (gross)62.6 kWReference
Fuel systemcommon rail direct injectionReference
Air cleanerdual dry elementReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed mechanical shuttleReference
24-speed mechanical shuttleReference
24-speed power shuttleReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Four synchronized gears in three ranges with mechanical shuttle. Also available as a 24-speed with mechanical high-low range.Reference
TransmissionSpeedShiftReference
Gears24 forward and reverseReference
Four gears in three ranges with two-speed power shift and mechanical shuttle.Reference
Typepower shuttleReference
Gears24 forward and 12 reverseReference
Clutchelectro-hydraulic wet discsReference
Four gears in three ranges with two-speed power shift and power shuttle.Reference
PTO & Hydraulics
Pressure190.0 barReference
Rear valves2 or 3Reference
Mid valves2Reference
Pump flow62.1 lpmReference
Rear TypeII/IReference
Controlposition and top-link draft controlReference
Rear lift (at ends)2500 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1938Reference
Engine RPM1000@1962Reference
Dimensions
Wheelbase214 cmReference
Weight6085 to 6559 poundsReference
Front tire6.50R16Reference
2WD Rear tire320/85R28Reference
2WD Standard tires (ag)Front: 6.50R16. Rear: 320/85R28Reference
4WD Standard tires (ag)Front: 7.50R20. Rear: 13.6R28Reference
Length398 cmReference
Width145 cmReference
Width130 cmReference
Width115 cmReference
Width100 cmReference
Height (cab)230 cmReference
Height (cab)225 cmReference
4WD ROPS Weight2760 kgReference
4WD Cab Weight2975 kgReference
2WD Front tread119 to 136 cmReference
4WD Front tread119 to 142 cmReference
2WD Rear tread114 to 164 cmReference
4WD Rear tread122 to 162 cmReference
Massey Ferguson 3640F attachments
front-end loaderReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
Massey Ferguson 905 loaderReference
Massey Ferguson 915 loaderReference
Loaders compatible with the 3640F and 3640S variants.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
