Tractor · 1988Unverified

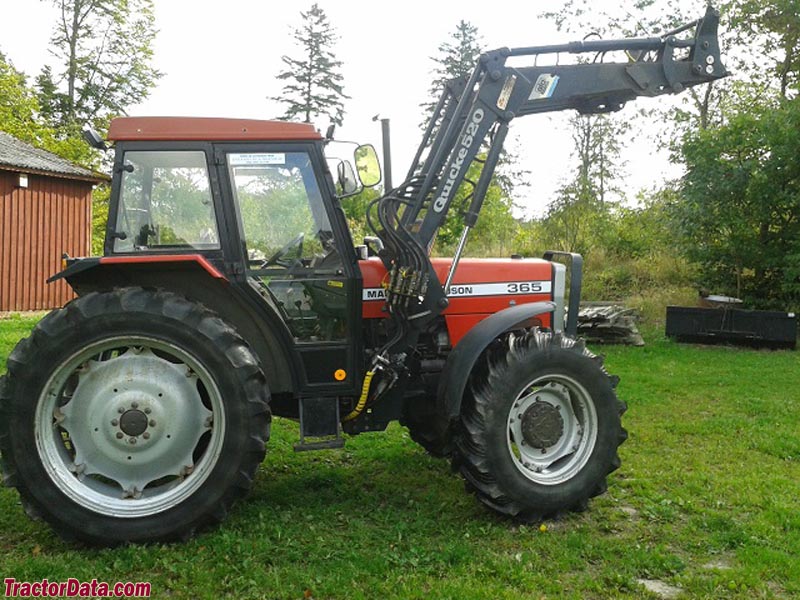

Massey Ferguson 365
Massey Ferguson 365 — 300 Series · 55 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
55 hp
Weight
6861 to 7685 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Utility tractorReference
Built in Coventry, EnglandReference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Two- or four-post ROPS. Cab available.Reference
Engine
Perkins 3.9L 4-cyl dieselReference
Engine45.5 kWReference
Perkins A4.236Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke98 x 127 mmReference
Power45.5 kWReference
Fuel systemdirect injectionReference
Air cleanerdry elementReference
Compression16:1Reference
Rated RPM2200Reference
Idle RPM750-2310Reference
Torque242.7 NmReference
Torque RPM1400Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts12Reference
Oil capacity7.5 LReference
Coolant capacity15.1 LReference
Transmission
8-speed synchronizedReference
12-speed synchronizedReference
12-speed two-speed power shiftReference
TypesynchronizedReference
Gears8 forward and 2 reverseReference
Gears12 forward and 4 reverseReference
TransmissionMulti-PowerReference
Typetwo-speed power shiftReference
PTO & Hydraulics
PTO (claimed)41.0 kWReference
Hydraulic system47.3 LReference
Typeopen centerReference
Capacity47.3 LReference
Pressure206.8 barReference
Pump flow36.0 lpmReference
Pump flow27.6 lpmReference
Total flow63.6 lpmReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear lift (at ends)2145 kgReference
Rear lift (at ends)2528 kgReference
Rear lift (at ends)2585 kgReference
Rear lift (at ends)3059 kgReference
Rear lift (at ends)2453 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1893Reference
Engine RPM1000@1900Reference
Capacities
Fuel107.9 LReference
Dimensions
2WD Wheelbase213 cmReference
4WD Wheelbase234 cmReference
Weight6861 to 7685 poundsReference
Front tire7.50-16Reference
2WD Rear tire18.4/15-30Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 18.4/15-30Reference
4WD Standard tires (ag)Front: 12.4-24. Rear: 18.4/15-30Reference
Length375 cmReference
Width187 cmReference
2WD Operating weight3112 kgReference
4WD Operating weight3485 kgReference
2WD Clearance (front axle)53 cmReference
4WD Clearance (front axle)42 cmReference
Clearance (rear axle)48 cmReference
Clearance (drawbar)36 cmReference
2WD Front tread127 to 187 cmReference
4WD Front tread137 to 193 cmReference
Rear tread142 to 213 cmReference
Steering wheel178 cmReference
365 Serial Number Location
Serial number plate on the right side of the tractor, near the brake pedals.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps45Reference
Battery CCA420 (2x)Reference
Battery CCA540 (1x)Reference
Battery volts12Reference
Massey Ferguson 365 Height
ROPS252 cmReference
Cab250 cmReference
Exhaust248 cmReference
Speeds
With 13.6-36 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
