Tractor · 1987Unverified

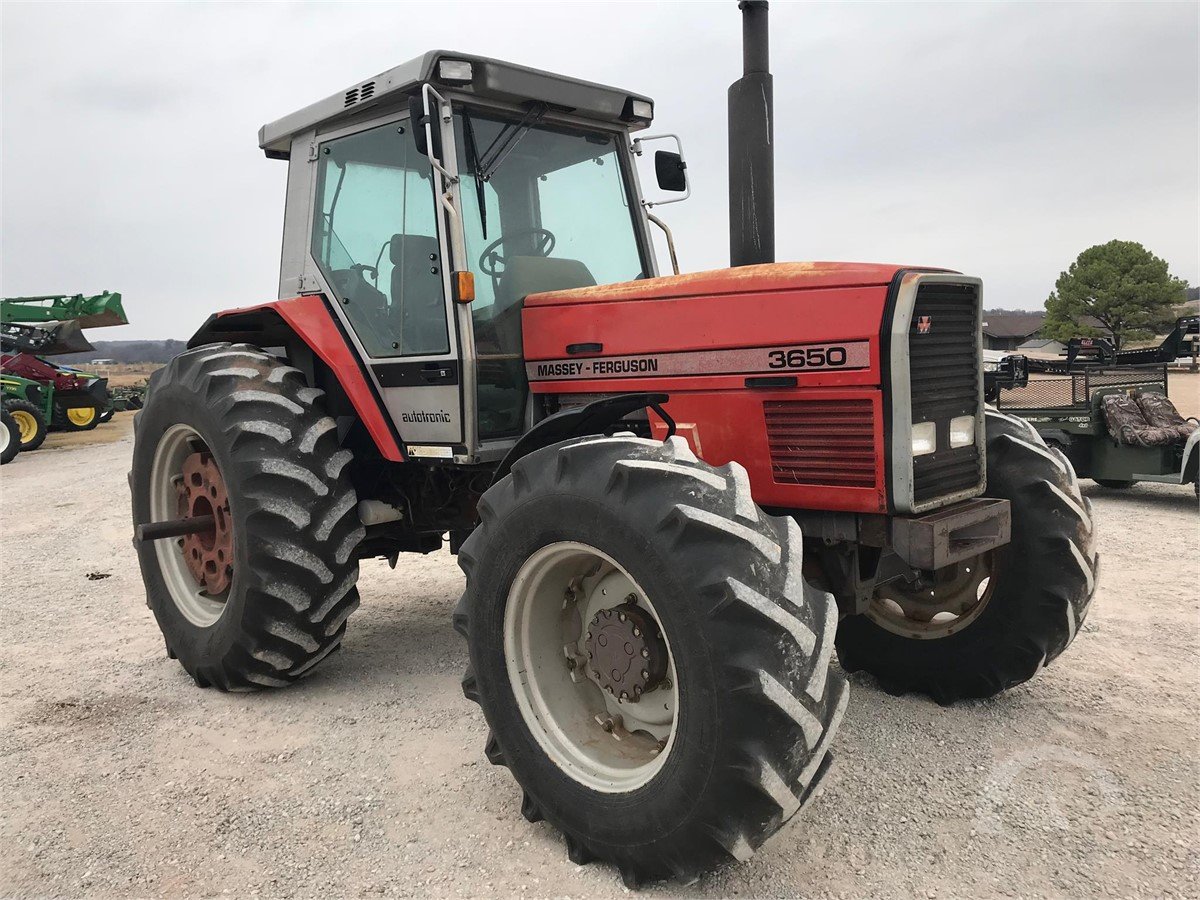

Massey Ferguson 3650
Massey Ferguson 3650 — Row-Crop tractor · 130 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
130 hp
Weight
12037 to 13139 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Row-Crop tractorReference
Built in Beauvais, FranceReference
Original price$53,000 (1990)Reference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Silent Revolution Cab standard with air-conditioning. Autotronic standard. Datatronic optional.Reference
Engine
Perkins 5.8L 6-cyl dieselReference
Perkins AT6.3544CCReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.8 LReference
Bore/Stroke98 x 127 mmReference
Fuel systemdirect injectionReference
Cooling systemviscostatic fanReference
Air cleanerdual dry elementReference
Rated RPM2400Reference
Torque530.2 NmReference
Torque RPM1600Reference
Starter volts12Reference
Oil capacity18.9 LReference
Coolant capacity27.0 LReference
Transmission
16-speed two-speed power shiftReference
Typetwo-speed power shiftReference
Gears16 forward and reverseReference
Clutch352mm cerametallic hydraulic dry discReference
Eight gears with a two-speed power shift.Reference
PTO & Hydraulics
PTO (claimed)96.9 kWReference
Hydraulic system85.2 LReference
Capacity85.2 LReference
Valves2 to 4Reference
Pump flow54.5 lpmReference
Total flow135.5 lpmReference
Steering flow58.3 lpmReference
Rear TypeIIReference
Controlposition control and electronic draft controlReference
Rear lift (at 24"/610mm)4263 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1992Reference
Engine RPM1000@2090Reference
Capacities
Fuel261.2 LReference
Dimensions
Wheelbase277 cmReference
Wheelbase276 cmReference
Weight12037 to 13139 poundsReference
Front tire14L-16Reference
Rear tire16.9-38Reference
Ag front14L-16 (2WD)Reference
Ag front11.00-16 (2WD)Reference
Ag front13.6-28 (4WD)Reference
Ag front14.9-28 (4WD)Reference
Ag front16.9-28 (4WD)Reference
Ag rear16.9-38Reference
Ag rear18.4-38Reference
Ag rear20.8-38Reference
Length464 cmReference
Length466 cmReference
Width238 cmReference
Height288 cmReference
Weight5459 kgReference
Weight5959 kgReference
Ground clearance43 cmReference
Front tread154 to 233 cmReference
Front tread168 to 217 cmReference
Rear tread152 to 246 cmReference
Rear tread152 to 334 cmReference
Rear tread167 to 236 cmReference
Rear tread167 to 324 cmReference
Massey Ferguson 3650 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
Massey Ferguson 246 loaderReference
Massey Ferguson 856 loaderReference
The model 246 loader was specified for tractors with two-wheel drive while the model 856 loader was specified for tractors with four-wheel drive.Reference
Speeds
With 18.4-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
