Tractor · 2011Unverified

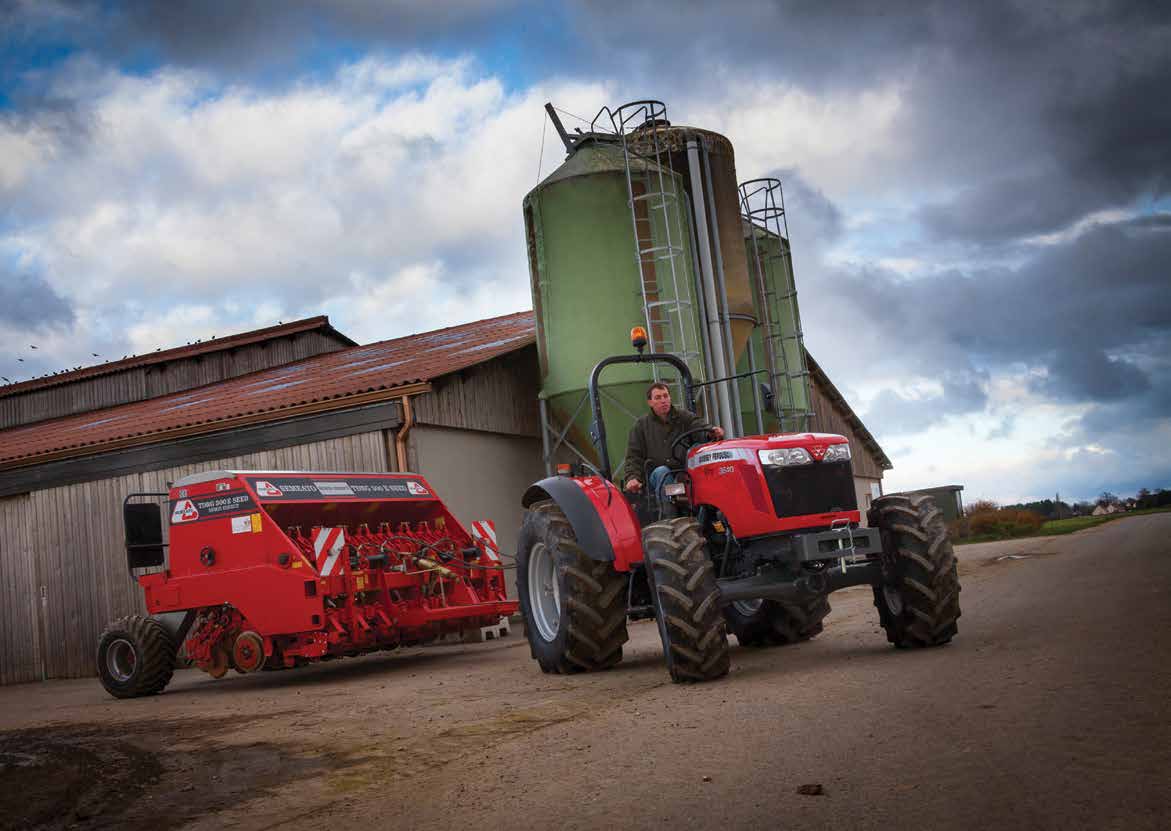

Massey Ferguson 3650A
Massey Ferguson 3650A — Utility tractor · 92 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
92 hp
Weight
6239 to 7187 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Utility tractorReference
Two- or four-wheel driveReference
Differential lockelectro-hydraulic rearReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Two-post ROPS. Cab available with air-condtioning.Reference
Variants
3650AstandardReference
3650FflexReference
3650SspecialReference
3650GEground effectReference
Engine
AGCO Power 3.3L 3-cyl dieselReference
ROPS Fuel tank82.9 LReference
Cab Fuel tank110.1 LReference
Engine (gross)68.6 kWReference
AGCO Power 33CTAReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke108 x 120 mmReference
Power (gross)68.6 kWReference
Fuel systemcommon rail direct injectionReference
Air cleanerdual dry elementReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed mechanical shuttleReference
24-speed mechanical shuttleReference
24-speed power shuttleReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Four synchronized gears in three ranges with mechanical shuttle. Also available as a 24-speed with mechanical high-low range.Reference
TransmissionSpeedShiftReference
Gears24 forward and reverseReference
Four gears in three ranges with two-speed power shift and mechanical shuttle.Reference
Typepower shuttleReference
Gears24 forward and 12 reverseReference
Clutchelectro-hydraulic wet discsReference
Four gears in three ranges with two-speed power shift and power shuttle.Reference
PTO & Hydraulics
Pressure190.0 barReference
Rear valves1 to 3Reference
Mid valves2Reference
Pump flow62.1 lpmReference
Rear TypeII/IReference
Controlposition and top-link draft controlReference
Rear lift (at ends)2500 kgReference
Rear lift (at ends)3000 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1938Reference
Engine RPM1000@1962Reference
Dimensions
Wheelbase208 cmReference
Weight6239 to 7187 poundsReference
Front tire7.50-16Reference
2WD Rear tire16.9R30Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 16.9R30Reference
4WD Standard tires (ag)Front: 11.2R24. Rear: 16.9R30Reference
Length374 cmReference
Width165 cmReference
Height (cab)250 cmReference
4WD ROPS Weight2830 kgReference
4WD Cab Weight3260 kgReference
2WD Front tread143 to 206 cmReference
4WD Front tread131 to 193 cmReference
Rear tread150 to 190 cmReference
Massey Ferguson 3650A attachments
front-end loaderReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
Massey Ferguson 906 loaderReference
Massey Ferguson 916 loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
