Tractor · 2011Unverified

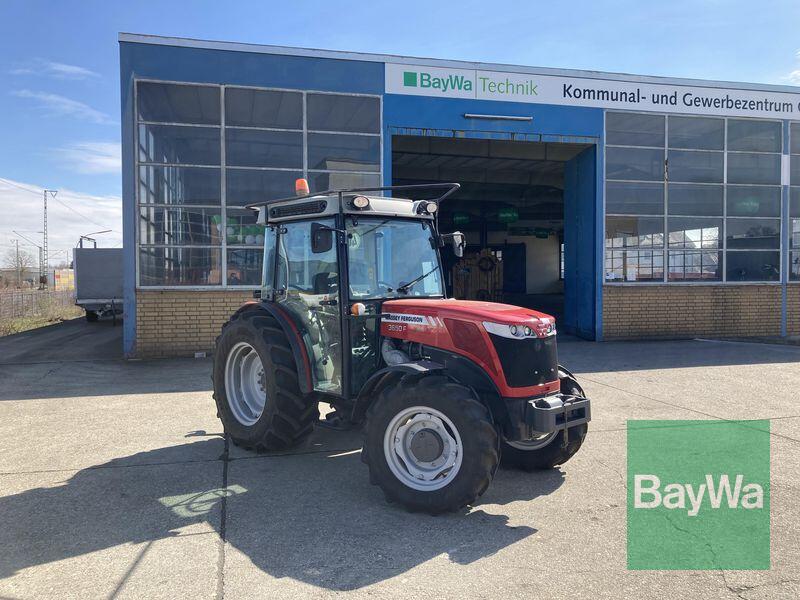

Massey Ferguson 3650F

Name: Massey Ferguson 3650F
Brand: Massey Ferguson

Massey Ferguson 3650F — Utility tractor · 94 hp. Reference specifications; pending source verification.

The Massey Ferguson 3650F is a tractor with a rated output of 94 hp, positioning it towards the middle of its class in terms of power. Manufactured from 2011 to 2017, this model is equipped with a 3-cylinder diesel liquid-cooled engine, which transmits power to four-wheel drive through a hydrostatic transmission. The listed weight for this tractor ranges from 6085 to 6559 pounds. It is suitable for tasks covering approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

94 hp

Max power

94 hp

Weight

6085 to 6559 pounds

Catalogue coverage

Variants represented

Richest spec table

112 rows

Recorded power

94 hp

Recorded weight

2760 kg

Transmissions

12-speed mechanical shuttle

Production years

2011-2017

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Utility tractorReference

Two- or four-wheel driveReference

Differential lockelectro-hydraulic rearReference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Trailer brakeshydraulicReference

Two-post ROPS. Cab available with air-condtioning.Reference

Variants

3650AstandardReference

3650FflexReference

3650SspecialReference

3650GEground effectReference

Engine

AGCO Power 3.3L 3-cyl dieselReference

Fuel tank68.1 LReference

Engine (gross)70.1 kWReference

AGCO Power 33CTAReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement3.3 LReference

Bore/Stroke108 x 120 mmReference

Power (gross)70.1 kWReference

Fuel systemcommon rail direct injectionReference

Air cleanerdual dry elementReference

Rated RPM2200Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders3 cylinderReference

Rated engine speed2,200 RPMReference

Emissions complianceTier II/IReference

Bore and stroke4.252x4.724 inchesReference

Cooling systemliquid-cooledReference

Transmission

12-speed mechanical shuttleReference

24-speed mechanical shuttleReference

24-speed power shuttleReference

Typemechanical shuttleReference

Gears12 forward and reverseReference

Four synchronized gears in three ranges with mechanical shuttle. Also available as a 24-speed with mechanical high-low range.Reference

TransmissionSpeedShiftReference

Gears24 forward and reverseReference

Four gears in three ranges with two-speed power shift and mechanical shuttle.Reference

Typepower shuttleReference

Gears24 forward and 12 reverseReference

Clutchelectro-hydraulic wet discsReference

Four gears in three ranges with two-speed power shift and power shuttle.Reference

Transmission TypeMechanical ShuttleReference

Wheel Drive4WDReference

PTO & Hydraulics

Pressure190.0 barReference

Rear valves2 or 3Reference

Mid valves2Reference

Pump flow62.1 lpmReference

Rear TypeII/IReference

Controlposition and top-link draft controlReference

Rear lift (at ends)2500 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540 (1.375)Reference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@1938Reference

Engine RPM1000@1962Reference

Dimensions

Wheelbase214 cmReference

Weight6085 to 6559 poundsReference

Front tire6.50R16Reference

2WD Rear tire320/85R28Reference

2WD Standard tires (ag)Front: 6.50R16. Rear: 320/85R28Reference

4WD Standard tires (ag)Front: 7.50R20. Rear: 13.6R28Reference

Length398 cmReference

Width145 cmReference

Width130 cmReference

Width115 cmReference

Height (cab)230 cmReference

Height (cab)225 cmReference

4WD ROPS Weight2760 kgReference

4WD Cab Weight2975 kgReference

2WD Front tread119 to 136 cmReference

4WD Front tread119 to 142 cmReference

2WD Rear tread114 to 164 cmReference

4WD Rear tread122 to 162 cmReference

Massey Ferguson 3650F attachments

front-end loaderReference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

Massey Ferguson 905 loaderReference

Massey Ferguson 915 loaderReference

Loaders compatible with the 3650F and 3650S variants.Reference

General

Make & ModelMassey FergusonReference

SCV controlJoystickReference

Rollover protective structureTwo-post ROPS.Reference

Country of manufacturerItalyReference

Capacities

Capacity201 ciReference

Power

Max Power94 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Engine Speed on Rear PTO speed1,000 rpm @1,962 RPMReference

Steering & brakes

Brakeshydraulic wet discReference

Steering typehydrostatic powerReference

Hydraulics

Pump Rated Output (total)16.4 gpmReference

Maximum operating pressure2,756 psiReference

Remote Valves2 or 3 valvesReference

Rear Hitch category (SAE designation)Category II/IReference

Rear Hitch maximum lift capacity2,500.2 kgReference

Rear Hitch Sensing Typeposition and top-link draft controlReference

Dimensions & weight

Height Over Cab230.1 cmReference

Overall Length398.5 cmReference

Overall Width145 cmReference

Overall weight2,760.1 kgReference

Wheels & tyres

Rear Wheel Type13.6R28Reference

Rear wheel tread range48.2 to 63.9 inchesReference

Front Wheel Type7.50R20Reference

Front Wheel tread range47.2 to 56.2 inchesReference

Operator station

Cab AvailabilityTRUEReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
