Tractor · 1990Unverified

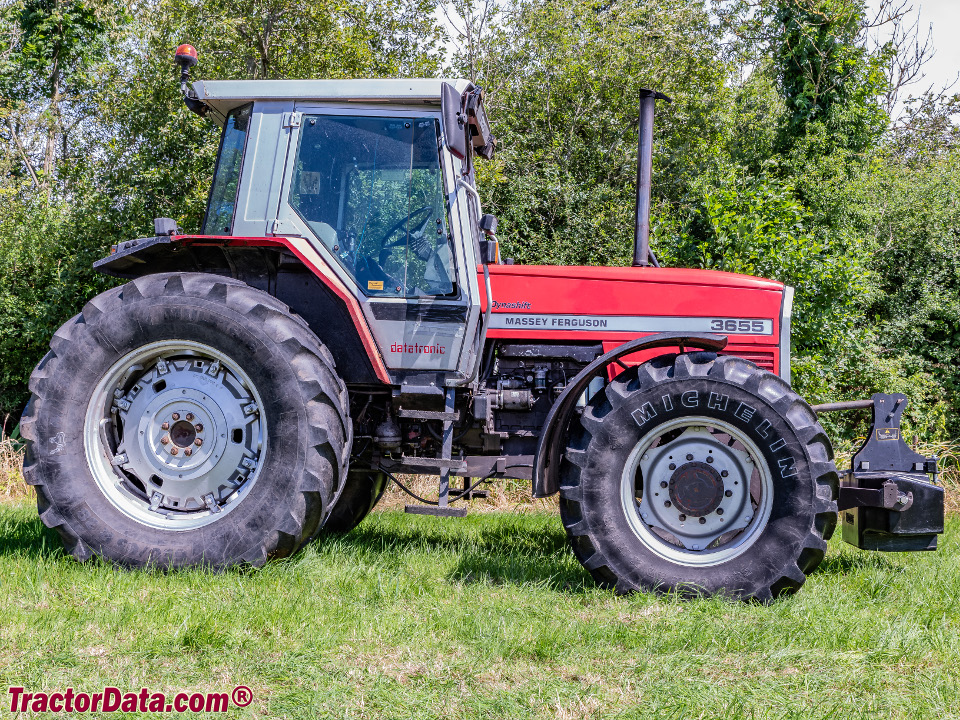

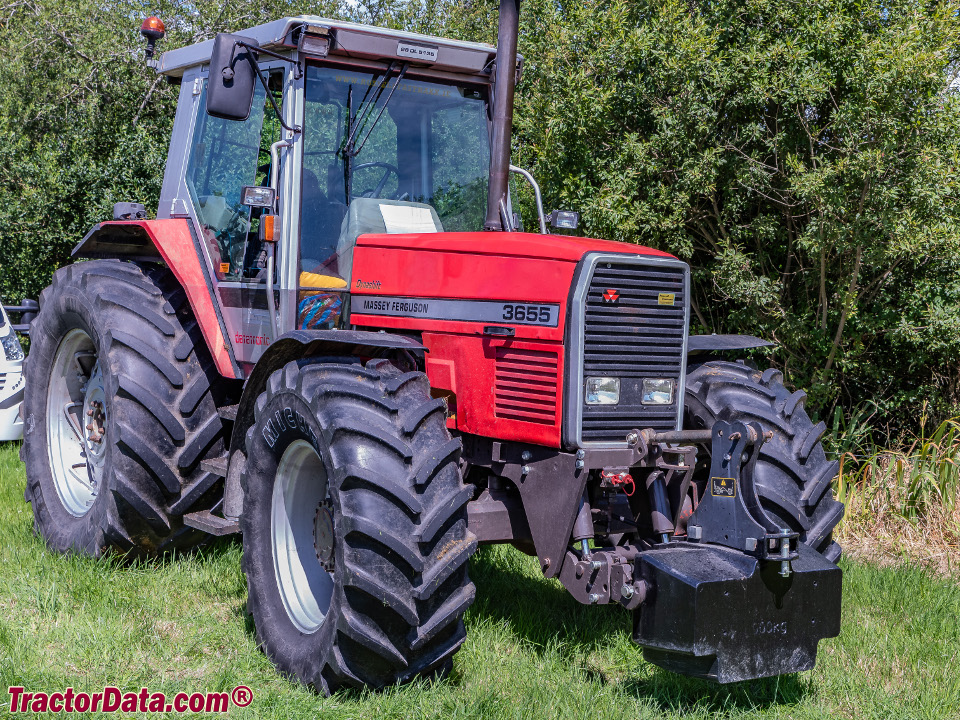

Massey Ferguson 3655
Massey Ferguson 3655 — Row-Crop tractor · 155 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
155 hp
Weight
5806 kg
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Row-Crop tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Cab standard with heat. Air-conditioning optional.Reference
Engine
Perkins 6.0L 6-cyl dieselReference
Engine115.6 kWReference
Perkins 1006.TWGReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.0 LReference
Bore/Stroke100 x 127 mmReference
Power115.6 kWReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
32-speedReference
Gears16 forward and reverseReference
TransmissionDynashiftReference
Gears32 forward and reverseReference
PTO & Hydraulics
Rear TypeIIReference
Rear lift7801 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase276 cmReference
Weight5806 kgReference
Front tire16.9R28Reference
Rear tire20.8R38Reference
Standard tires (ag)Front: 16.9R28. Rear: 20.8R38Reference
Length469 cmReference
Height (cab)289 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
