Tractor · 2008Unverified

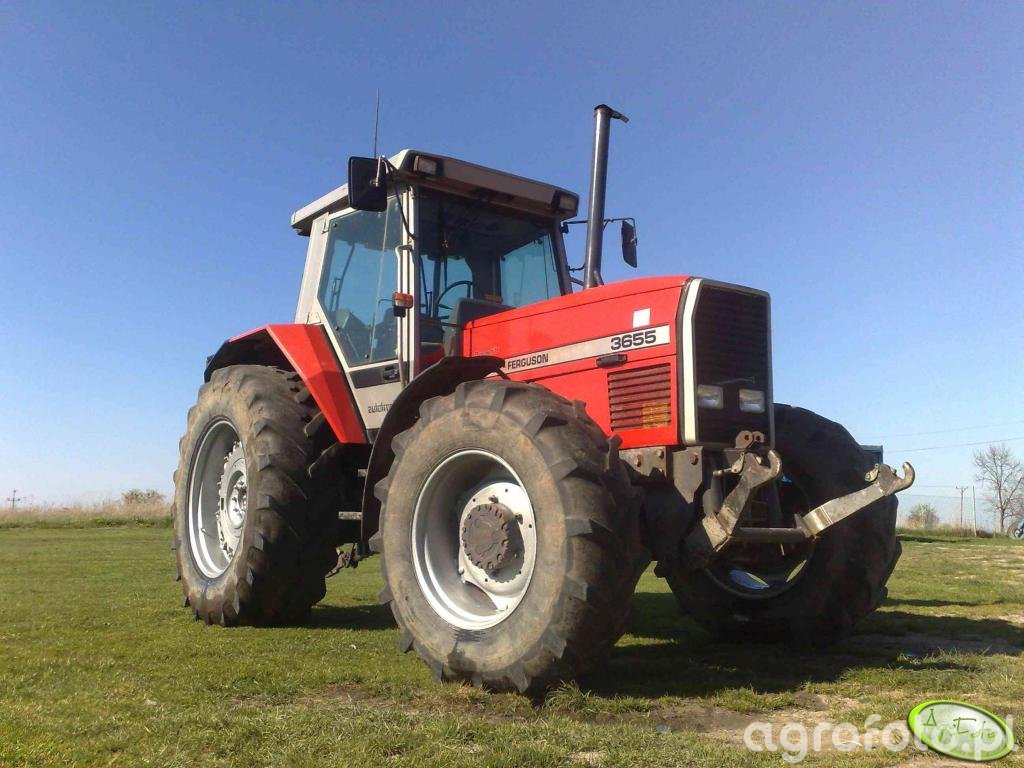

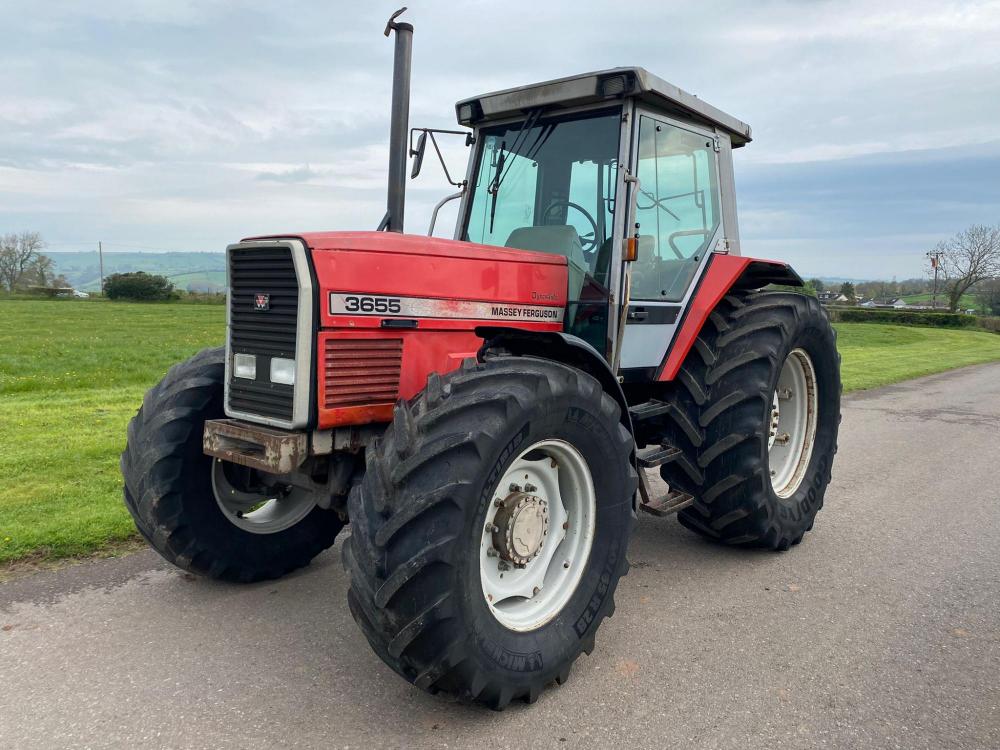

Massey Ferguson 3655 F

Name: Massey Ferguson 3655 F
Brand: Massey Ferguson

Massey Ferguson 3655 F — Agritalia built · 100 hp. Reference specifications; pending source verification.

The Massey Ferguson 3655 F is a tractor with a rated power of 100 hp, a mid-range figure for its class. It was manufactured in 2008. The tractor features a turbocharged intercooled diesel liquid-cooled engine, coupled with mechanical front-wheel drive and a hydrostatic transmission. The 3655 F is suited to operations on areas of 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

100 hp

Max power

100 hp

Catalogue coverage

Variants represented

Richest spec table

87 rows

Recorded power

100 hp

Transmissions

12-speed synchronized shuttle

Production years

2008-2008

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorMassey FergusonReference

ManufacturerAgritaliaReference

Built in Rovigo, ItalyReference

Drive4x2 2WDReference

Drive4x4 MFWD 4WD (optional)Reference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Variants

3655 Fflex version, narrowReference

3655 Sspecial version, extra narrowReference

3655 GEground effect version, low profileReference

Engine

AGCO SisuDiesel 3.3L dieselReference

Fuel tank70.0 LReference

Engine74.6 kWReference

AGCO SisuDiesel 33DTAReference

turbocharged intercooled dieselReference

liquid-cooledReference

Displacement3.3 LReference

EmissionsTier 3Reference

Power74.6 kWReference

Air cleanerdual dry elementReference

Rated RPM2,200Reference

Starter typeelectricReference

Fuel TypedieselReference

Rated engine speed2,200 RPMReference

Emissions complianceTier 3Reference

Cooling systemliquid-cooledReference

Transmission

12-speed synchronized shuttleReference

24-speed synchronized shuttleReference

24-speed power shuttleReference

24-speed synchronized shuttle with partial power shiftReference

Typesynchronized shuttleReference

Gears12 forward and reverseReference

Gears24 forward and reverseReference

TransmissionPowerShuttleReference

Typepower shuttleReference

TransmissionSpeedShiftReference

Typesynchronized shuttle with partial power shiftReference

Transmission TypeSync ShuttleReference

Wheel Drive2WD | 4WDReference

PTO & Hydraulics

Pressure190.0 barReference

Rear valves2 to 3Reference

Mid valves2 (optional)Reference

Front valves2 or 4 (optional)Reference

Pump flow48.1 lpmReference

Pump flow62.1 lpmReference

Rear TypeII/IReference

Rear lift (at ends)2500 kgReference

Rear PTOindependentReference

Rear PTO Type540Reference

Rear PTO Type540/540E (optional)Reference

Rear PTO Type540/1000 (optional)Reference

Rear PTO Typeground (optional)Reference

Dimensions

Wheelbase215 cmReference

Front tire6.50-16Reference

Rear tire12.4R28Reference

Ag front6.50-16 (2WD)Reference

Ag front7.5R20 (4WD)Reference

Ag rear12.4R28 (2WD)Reference

Ag rear13.6R28 (4WD)Reference

Length398 cmReference

Width145 cmReference

Height (cab)230 cmReference

Clearance (front axle)35 cmReference

Front tread99 to 159 cmReference

Front tread124 to 138 cmReference

Rear tread124 to 164 cmReference

Rear tread122 to 162 cmReference

General

Make & ModelMassey FergusonReference

Country of manufacturerItalyReference

Capacities

Capacity201 ciReference

Power

Max Power100 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

Brakeshydraulic wet discReference

Steering typehydrostatic powerReference

Hydraulics

Maximum operating pressure2,756 psiReference

Remote Valves2 to 3 ValvesReference

Rear Hitch category (SAE designation)Category II/IReference

Rear Hitch maximum lift capacity5,512Reference

Dimensions & weight

Height Over Cab230.1 cmReference

Overall Length398.5 cmReference

Overall Width145 cmReference

Front axle clearance35.1 cmReference

Wheels & tyres

Rear Wheel Type12.4R28Reference

Rear wheel tread range49 to 64.8 inchesReference

Front Wheel Type6.50-16Reference

Front Wheel tread range39.25 to 62.8 inchesReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
