Tractor · 2008Unverified

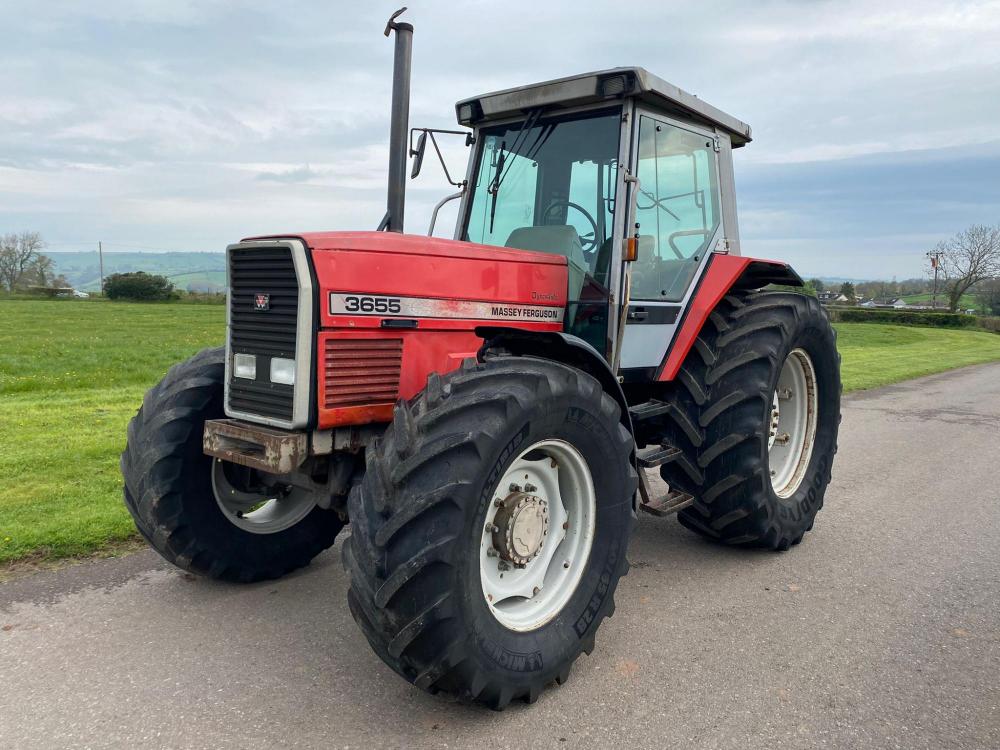

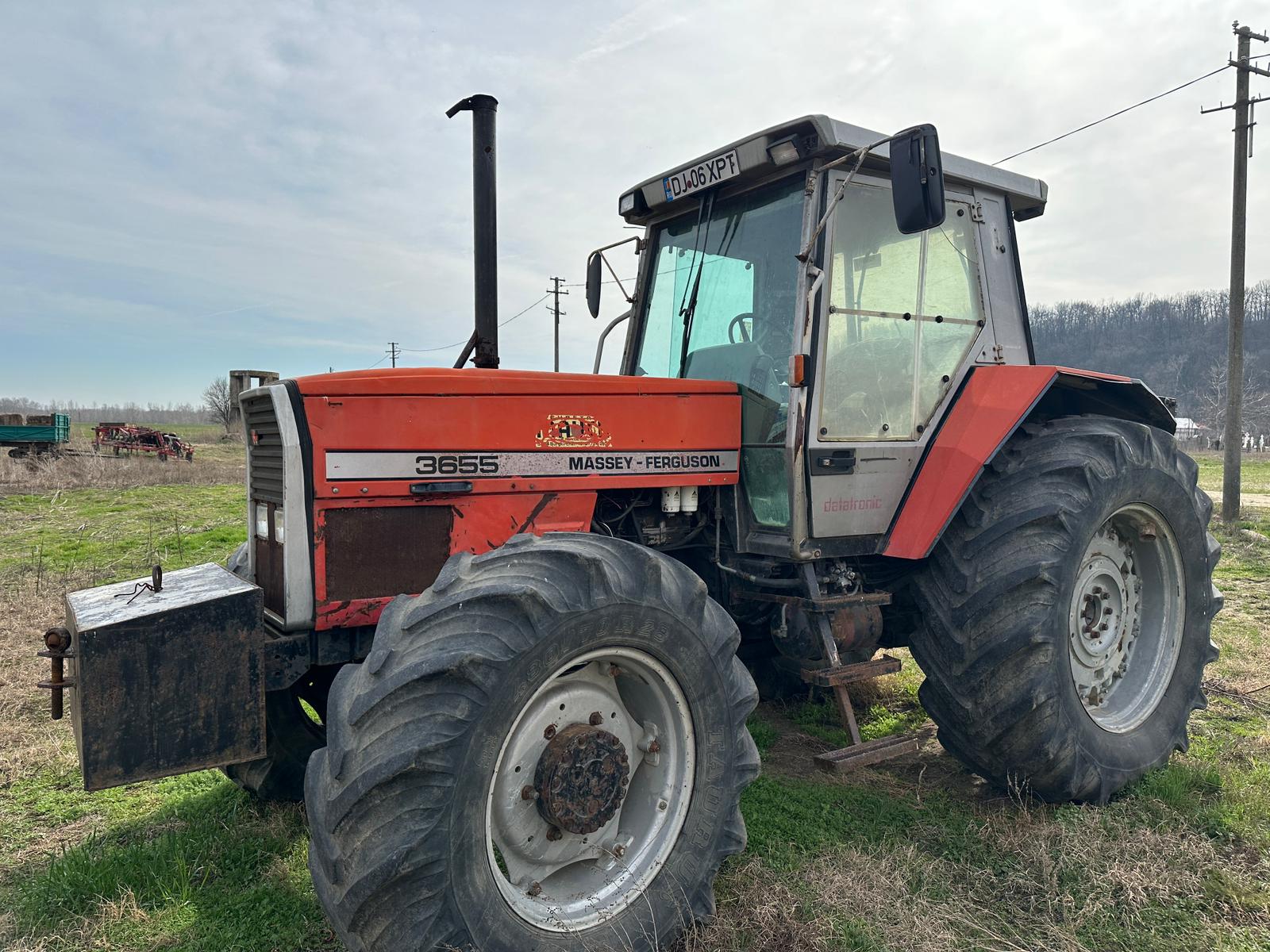

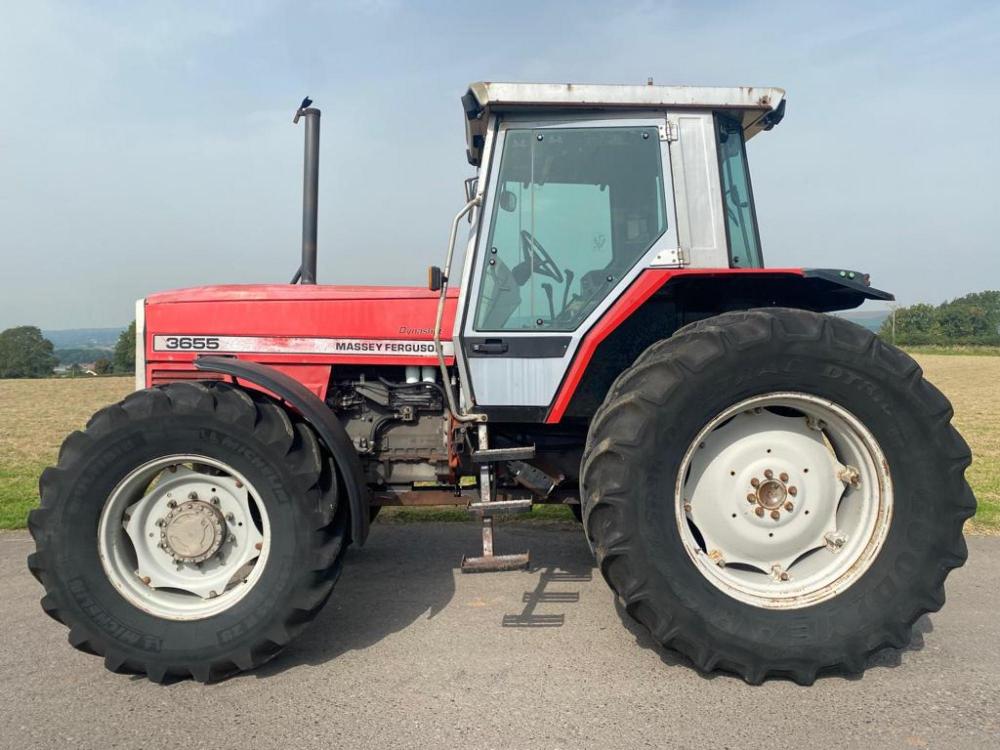

Massey Ferguson 3655 S
Massey Ferguson 3655 S — Agritalia built · 100 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
100 hp
Hover a source tag to verify
Overview
DistributorMassey FergusonReference
ManufacturerAgritaliaReference
Built in Rovigo, ItalyReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Variants
3655 Fflex version, narrowReference
3655 Sspecial version, extra narrowReference
3655 GEground effect version, low profileReference
Engine
AGCO SisuDiesel 3.3L dieselReference
Fuel tank70.0 LReference
Engine74.6 kWReference
AGCO SisuDiesel 33DTAReference
turbocharged intercooled dieselReference
liquid-cooledReference
Displacement3.3 LReference
EmissionsTier 3Reference
Power74.6 kWReference
Air cleanerdual dry elementReference
Rated RPM2,200Reference
Starter typeelectricReference
Transmission
12-speed synchronized shuttleReference
24-speed synchronized shuttleReference
24-speed power shuttleReference
24-speed synchronized shuttle with partial power shiftReference
Typesynchronized shuttleReference
Gears12 forward and reverseReference
Gears24 forward and reverseReference
TransmissionPowerShuttleReference
Typepower shuttleReference
TransmissionSpeedShiftReference
Typesynchronized shuttle with partial power shiftReference
PTO & Hydraulics
Pressure190.0 barReference
Rear valves2 to 3Reference
Mid valves2 (optional)Reference
Front valves2 or 4 (optional)Reference
Pump flow48.1 lpmReference
Pump flow62.1 lpmReference
Rear TypeII/IReference
Rear lift (at ends)2500 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Rear PTO Type540/540E (optional)Reference
Rear PTO Type540/1000 (optional)Reference
Rear PTO Typeground (optional)Reference
Dimensions
Wheelbase215 cmReference
Front tire6.50R16Reference
Rear tire320/85R28Reference
Ag front6.50R16 (2WD)Reference
Ag front7.50R16 (4WD)Reference
Ag rear320/85R28 (2WD)Reference
Ag rear12.4R28 (4WD)Reference
Length398 cmReference
Width130 cmReference
Height (cab)230 cmReference
Front tread94 to 134 cmReference
Front tread100 to 107 cmReference
Rear tread97 to 137 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
