Tractor · 1990Unverified

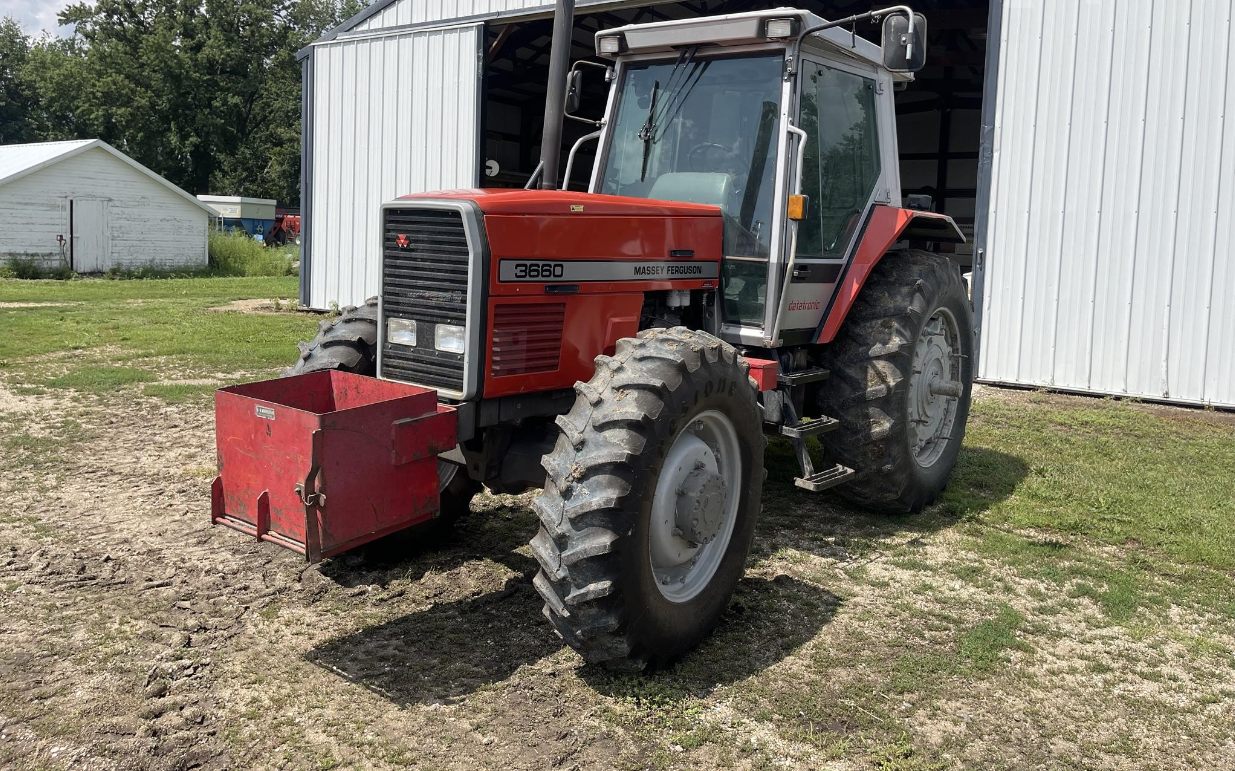

Massey Ferguson 3660

Name: Massey Ferguson 3660
Brand: Massey Ferguson

Massey Ferguson 3660 — Row-Crop tractor · 141 hp. Reference specifications; pending source verification.

The Massey Ferguson 3660 tractor is rated at 141 hp, placing it among the more powerful models in its class. It was manufactured from 1990 to 1994. The tractor features a 6-cylinder turbocharged diesel liquid-cooled engine, paired with a four-wheel drive system and hydrostatic transmission. Its operating weight is specified as 12621 to 13152 pounds, making it suitable for operations covering 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

141 hp

Max power

87.7 kW

Weight

12621 to 13152 pounds

Catalogue coverage

Variants represented

Richest spec table

79 rows

Recorded power

141 hp

Recorded weight

5724 kg

Transmissions

16-speed two-speed power shift

Production years

1990-1994

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Row-Crop tractorReference

Built in Beauvais, FranceReference

Original price$63,800 (1994)Reference

Two- or four-wheel driveReference

Steeringhydrostatic powerReference

Wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Perkins 6.0L 6-cyl dieselReference

Drawbar (tested)87.7 kWReference

PerkinsReference

wastegate turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.0 LReference

Bore/Stroke100 x 127 mmReference

Cooling systemviscous fanReference

Air cleanerdryReference

Rated RPM2200Reference

Starter volts12Reference

Oil capacity18.9 LReference

Coolant capacity25.0 LReference

Power at rated engine speed105.3 kWReference

Max power87.7 kWReference

Transmission

16-speed two-speed power shiftReference

32-speed four-speed power shiftReference

TransmissionSpeedshiftReference

Typetwo-speed power shiftReference

Gears16 forward and reverseReference

Clutch356mm discReference

Eight gears with a two-speed power shift.Reference

TransmissionDynashiftReference

Typefour-speed power shiftReference

Gears32 forward and reverseReference

Four synchronized gears with two-speed high-low and a four-speed power shift. The Dynashift was introduced for the 1993 model year as an optional transmission.Reference

PTO & Hydraulics

PTO (claimed)104.4 kWReference

PTO (tested)105.3 kWReference

Hydraulic system74.9 LReference

Capacity74.9 LReference

Pressure16.5 barReference

Pressure175.1 barReference

Pressure180.0 barReference

Valves2 or 3Reference

Pump flow20.8 lpmReference

Pump flow53.4 lpmReference

Pump flow50.0 lpmReference

Rear TypeIIReference

Controlposition and electronic draft controlReference

Rear lift (at 24"/610mm)5118 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Capacities

Fuel306.6 LReference

Dimensions

Wheelbase276 cmReference

Weight12621 to 13152 poundsReference

Front tire11.00-16Reference

Rear tire18.4R38 (2WD)Reference

Standard tires (ag)Front: 11.00-16. Rear: 18.4R38 (2WD)Reference

Standard tires (ag)Front: 14.9R28. Rear: 18.4R38 (4WD)Reference

2WD Length469 cmReference

4WD Length471 cmReference

Width240 cmReference

Height (cab)292 cmReference

2WD Weight5724 kgReference

4WD Weight5965 kgReference

Ground clearance43 cmReference

Massey Ferguson 3660 attachments

front-end loaderReference

3660 Serial Numbers

1990R001001Reference

1991S001001Reference

1992A001001Reference

1993B001001Reference

1994C001001Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Battery volts12Reference

Test results

Diesel 16-speed 4WD1990Reference

PTO performanceReference

Fuel use30.7 l/hourReference

Drawbar performanceReference

Fuel use29.1 l/hourReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
