Tractor · 1988Unverified

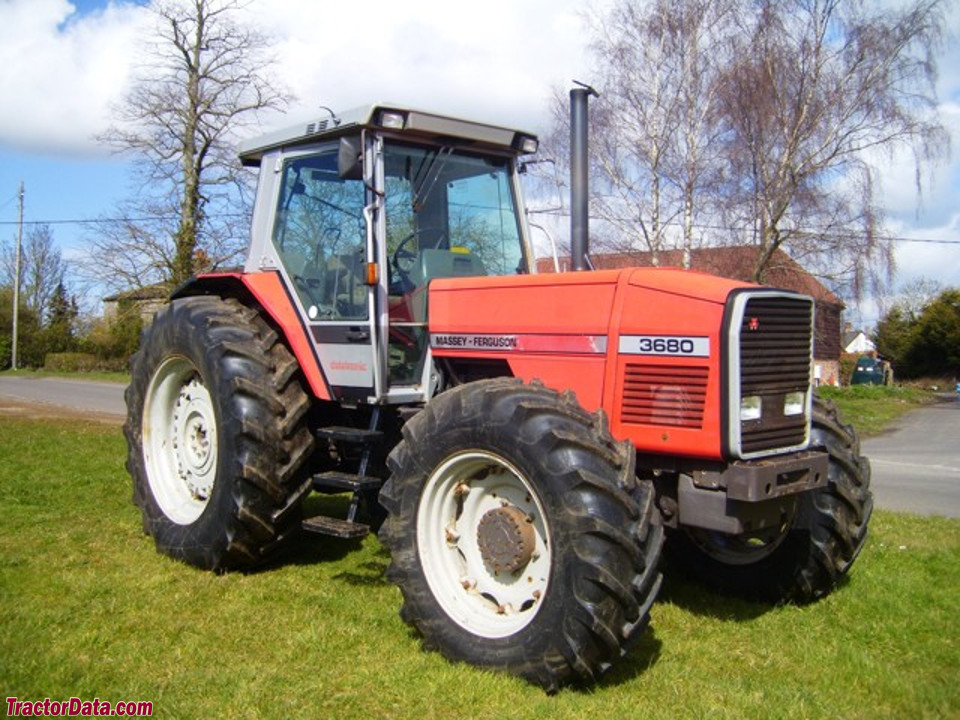

Massey Ferguson 3680
Massey Ferguson 3680 — Row-Crop tractor · 160 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
160 hp
Weight
12786 to 13866 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Row-Crop tractorReference
Built in Beauvais, FranceReference
Original price$64000 (1991)Reference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Valmet 7.4L 6-cyl dieselReference
Valmet 612DSReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.4 LReference
Bore/Stroke108 x 134 mmReference
Cooling systemviscous fanReference
Air cleanerdryReference
Rated RPM2200Reference
Starter volts12Reference
Oil capacity20.8 LReference
Coolant capacity29.9 LReference
Transmission
16-speed two-speed power shiftReference
Typetwo-speed power shiftReference
Gears16 forward and reverseReference
Clutch310mm discReference
Eight gears with a two-speed power shift.Reference
PTO & Hydraulics
PTO (claimed)119.3 kWReference
Hydraulic system74.9 LReference
Capacity74.9 LReference
Pressure16.5 barReference
Pressure175.1 barReference
Pressure180.0 barReference
Valves2 or 3Reference
Pump flow20.8 lpmReference
Pump flow53.4 lpmReference
Pump flow50.0 lpmReference
Rear TypeIIIReference
Controlposition and electronic draft controlReference
Rear lift (at 24"/610mm)5118 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Capacities
Fuel325.5 LReference
Dimensions
2WD Wheelbase293 cmReference
4WD Wheelbase292 cmReference
Weight12786 to 13866 poundsReference
Front tire14L-16Reference
Rear tire20.8R38 (2WD)Reference
Standard tires (ag)Front: 14L-16. Rear: 20.8R38 (2WD)Reference
Standard tires (ag)Front: 16.9R28. Rear: 20.8R38 (4WD)Reference
2WD Length513 cmReference
4WD Length513 cmReference
Width240 cmReference
Height (cab)292 cmReference
2WD Weight5799 kgReference
4WD Weight6289 kgReference
Ground clearance43 cmReference
Massey Ferguson 3680 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
