Tractor · 1991Unverified

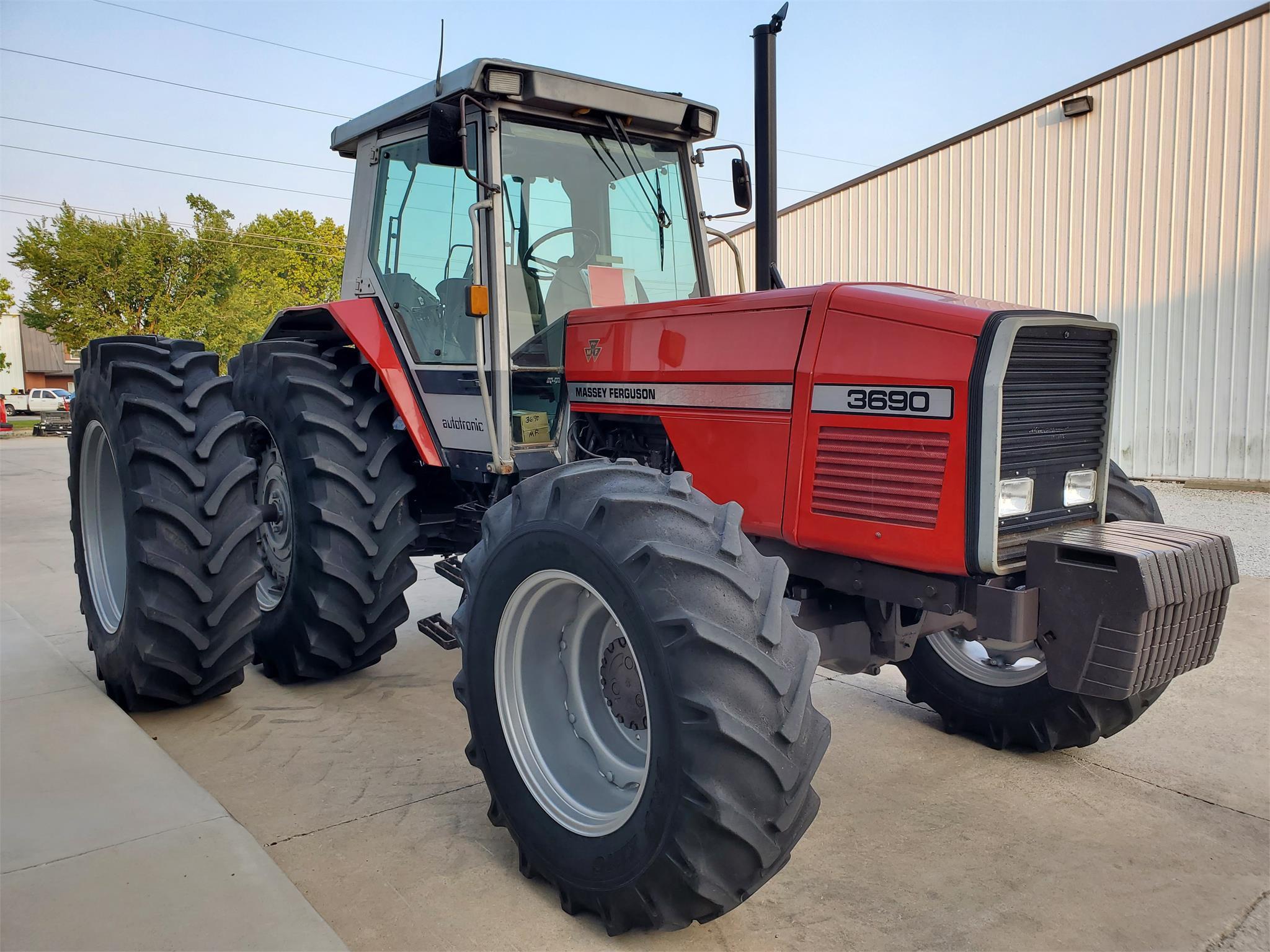

Massey Ferguson 3690

Name: Massey Ferguson 3690
Brand: Massey Ferguson

Massey Ferguson 3690 — Row-Crop tractor · 170 hp. Reference specifications; pending source verification.

The Massey Ferguson 3690 is a tractor rated at 170 hp, positioning it at the high-power end of its class. Manufactured from 1991 to 1994, it is powered by a 6-cylinder turbocharged diesel liquid-cooled engine paired with a four-wheel drive and hydrostatic transmission. Its operating weight is listed as 13073 to 14131 pounds, and it is suitable for operations spanning 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

170 hp

Weight

13073 to 14131 pounds

Catalogue coverage

Variants represented

Richest spec table

64 rows

Recorded power

170 hp

Recorded weight

5929 kg

Transmissions

16-speed two-speed power shift

Production years

1991-1994

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Row-Crop tractorReference

Built in Beauvais, FranceReference

Original price$78,200 (1994)Reference

Two- or four-wheel driveReference

Steeringhydrostatic powerReference

Wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Valmet 7.4L 6-cyl dieselReference

Valmet 612DSReference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement7.4 LReference

Bore/Stroke108 x 134 mmReference

Cooling systemviscous fanReference

Air cleanerdryReference

Rated RPM2200Reference

Starter volts12Reference

Oil capacity20.8 LReference

Coolant capacity26.9 LReference

Transmission

16-speed two-speed power shiftReference

32-speed four-speed power shiftReference

TransmissionSpeedshiftReference

Typetwo-speed power shiftReference

Gears16 forward and reverseReference

Clutch310mm discReference

TransmissionDynashiftReference

Typefour-speed power shiftReference

Gears32 forward and reverseReference

Four synchronized gears with two-speed high-low and a four-speed power shift. The Dynashift was introduced for the 1993 model year as the standard transmission.Reference

PTO & Hydraulics

PTO (claimed)126.8 kWReference

Hydraulic system74.9 LReference

Capacity74.9 LReference

Pressure17.0 barReference

Pressure180.0 barReference

Valves2 or 3Reference

Pump flow20.8 lpmReference

Pump flow53.4 lpmReference

Pump flow50.0 lpmReference

Rear TypeIIIReference

Controlposition and electronic draft controlReference

Rear lift (at 24"/610mm)4536 kgReference

Rear PTOindependentReference

Rear PTO Type1000Reference

Capacities

Fuel306.6 LReference

Dimensions

2WD Wheelbase293 cmReference

4WD Wheelbase292 cmReference

Weight13073 to 14131 poundsReference

Front tire14L-16Reference

Rear tire18.4R42 (2WD)Reference

Standard tires (ag)Front: 14L-16. Rear: 18.4R42 (2WD)Reference

Standard tires (ag)Front: 16.9R28. Rear: 18.4R42 (4WD)Reference

2WD Length539 cmReference

4WD Length537 cmReference

Width256 cmReference

Height (cab)289 cmReference

Weight5929 kgReference

Weight6409 kgReference

Ground clearance43 cmReference

Massey Ferguson 3690 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
