Tractor · 2017Unverified

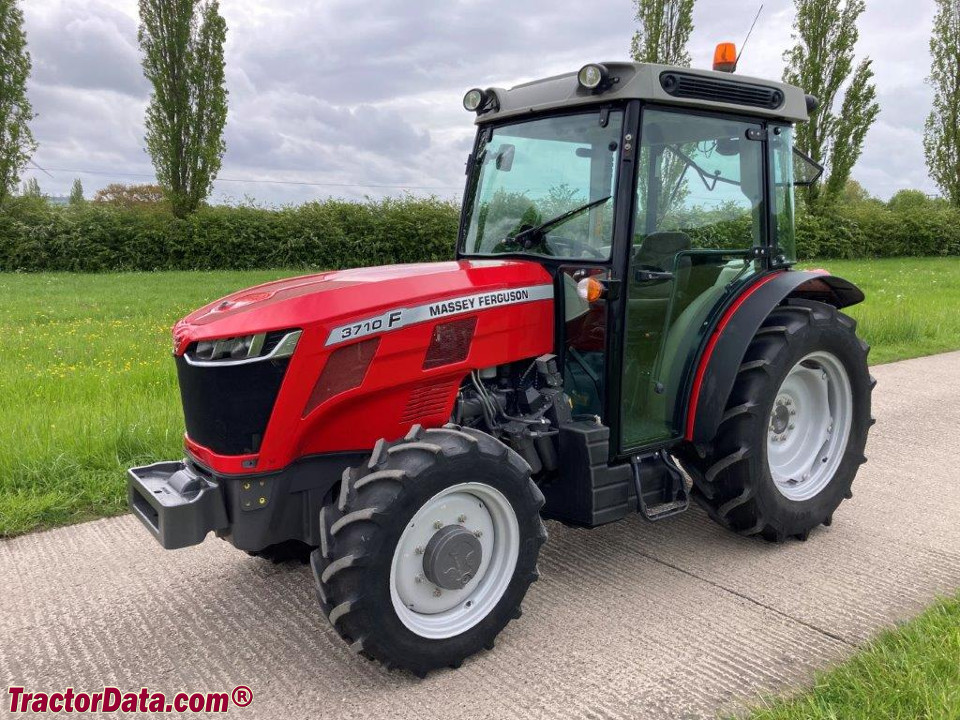

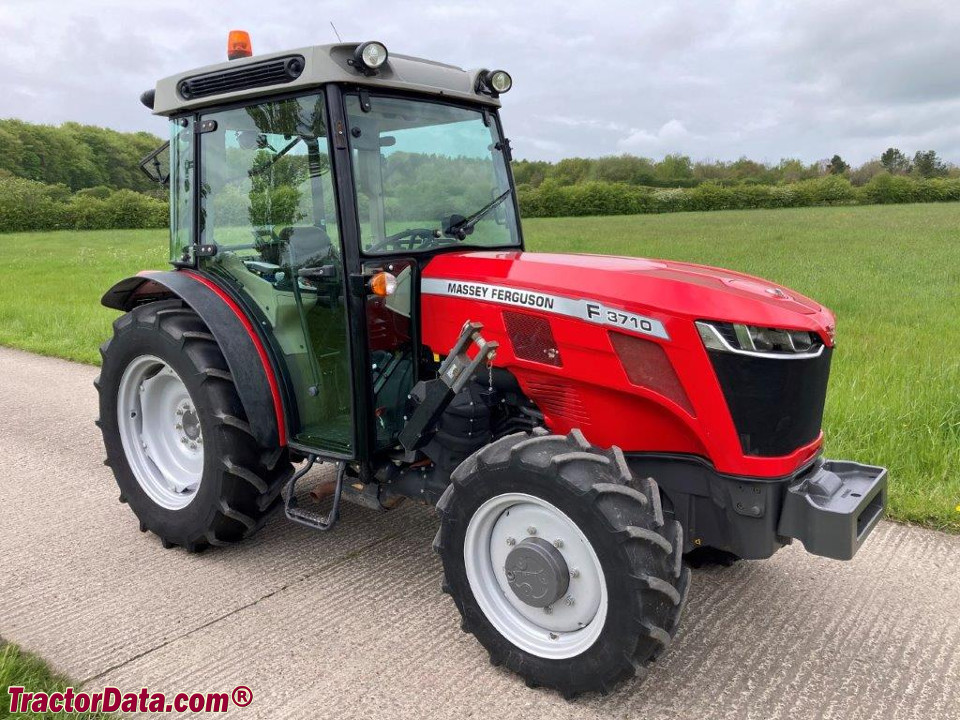

Massey Ferguson 3710F

Name: Massey Ferguson 3710F
Brand: Massey Ferguson

Massey Ferguson 3710F — Orchard/Vineyard tractor · 105 hp. Reference specifications; pending source verification.

The Massey Ferguson 3710F is a tractor with a rated output of 105 hp, placing it in the middle of its class in terms of power. Introduced in 2017, this model features a 4-cylinder diesel liquid-cooled engine, which transmits power through a four-wheel drive system with a 12-speed gearbox. It is designed for use on plots of land ranging in size from 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

105 hp

Catalogue coverage

Variants represented

Richest spec table

69 rows

Recorded power

105 hp

Transmissions

12-speed mechanical shuttle

Production years

2017

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey Ferguson (a part of AGCO)Reference

Orchard/Vineyard tractorReference

Four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Trailer brakeshydraulicReference

Two-post mid-mount folding ROPS. Cab available with optional air-conditioning.Reference

Variants

3710FfruitReference

3710WFwide fruitReference

3710SspecialReference

3710GEground effectsReference

Engine

3.4L 4-cyl dieselReference

Fuel tank74.2 LReference

Fuel tank54.1 LReference

Fuel tank104.1 LReference

Engine (max)78.3 kWReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.4 LReference

EmissionsStage 3BReference

Maximum Power (gross)78.3 kWReference

Fuel systemcommon rail injectionReference

Air cleanerdual dry elementReference

StarterelectricReference

Starter volts12Reference

Transmission

12-speed mechanical shuttleReference

24-speed mechanical shuttleReference

24-speedReference

24-speed power shuttleReference

Typemechanical shuttleReference

Gears12 forward and reverseReference

Gears24 forward and reverseReference

TransmissionSpeedshiftReference

Typepower shuttleReference

Gears24 forward and 12 reverseReference

PTO & Hydraulics

Valves2 to 4Reference

Pump flow65.9 lpmReference

Pump flow26.9 lpmReference

Total flow93.1 lpmReference

Total flow120.0 lpmReference

Steering flow26.9 lpmReference

Rear TypeII/IReference

Controltop-link draft sensingReference

Rear lift (at ends)2500 kgReference

Rear lift (at ends)3000 kgReference

Front HitchIIReference

Front lift (at ends)1650 kgReference

Rear PTOindependentReference

ClutchelectrohydraulicReference

Rear PTO Type540/540EReference

Rear PTO Type540/1000Reference

Front PTO Type540EReference

Front PTO Type1000Reference

Dimensions

Wheelbase212 cmReference

Wheelbase208 cmReference

Wheelbase214 cmReference

Length398 cmReference

Width145 cmReference

Width130 cmReference

Width100 cmReference

Clearance (front axle)25 cmReference

Clearance (rear axle)24 cmReference

Steering wheel81 cmReference

Steering wheel77 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Massey Ferguson 3710F Height

ROPS188 cmReference

Cab171 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
