Tractor · 1994Unverified

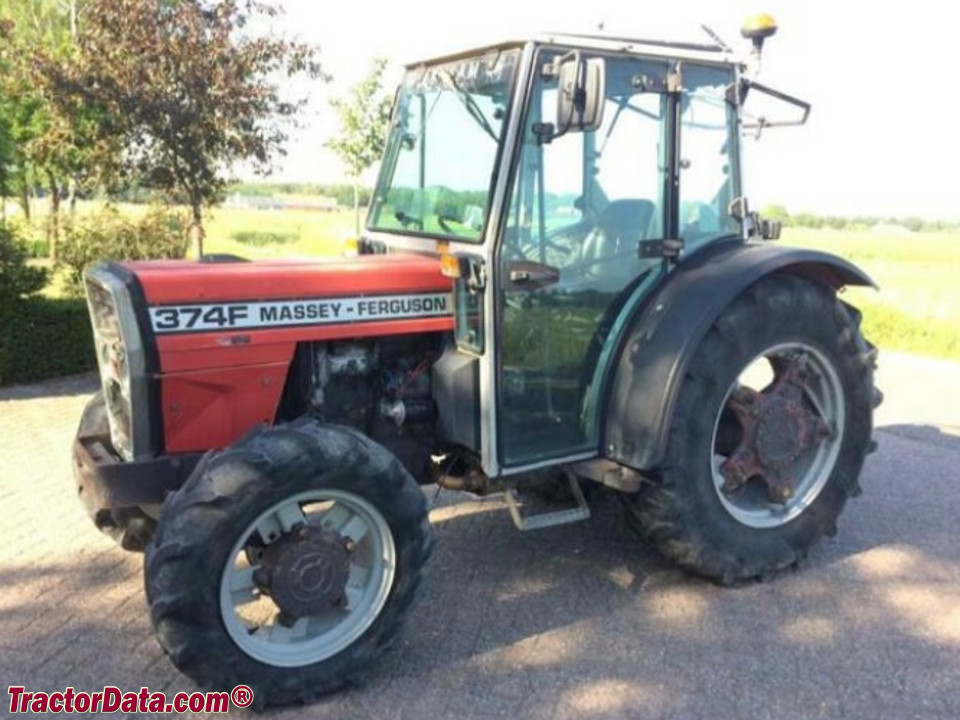

Massey Ferguson 374F
Massey Ferguson 374F — 304 Specialty Series · 64 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
64 hp
Weight
5159 to 5423 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Orchard/Vineyard tractorReference
Two- or four-wheel driveReference
Power steeringReference
Two-post mid-mount ROPS. Cab optional.Reference
Variants
374SnarrowReference
374FnarrowReference
374GElow-profileReference
374Vultra-narrowReference
Engine
Perkins 3.9L 4-cyl dieselReference
Fuel tank60.9 LReference
Engine48.0 kWReference
Perkins A4.236Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke98 x 127 mmReference
Power48.0 kWReference
Rated RPM2200Reference
Torque243.0 NmReference
Torque RPM1400Reference
Starter typeelectricReference
Transmission
12-speed synchroReference
24-speed creeperReference
TypesynchroReference
Gears12 forward and 4 reverseReference
TypecreeperReference
Gears24 forward and 12 reverseReference
PTO & Hydraulics
Pump flow42.4 lpmReference
Rear TypeII/IReference
Rear PTO Type540/750Reference
Engine RPM540@1944Reference
Engine RPM750@1934Reference
Dimensions
4WD Wheelbase201 cmReference
2WD Wheelbase207 cmReference
Weight5159 to 5423 poundsReference
Front tire260/80R-20Reference
4WD Rear tire14.9-28Reference
4WD Standard tires (ag)Front: 260/80R-20. Rear: 14.9-28Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 14.9-28Reference
Length346 cmReference
4WD Width151 cmReference
2WD Width155 cmReference
Height (ROPS)233 cmReference
2WD Weight2340 kgReference
4WD Weight2459 kgReference
2WD Ground clearance32 cmReference
4WD Ground clearance39 cmReference
2WD Front tread124 to 164 cmReference
4WD Front tread124 to 154 cmReference
Rear tread114 to 167 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
