Tractor · 1994Unverified

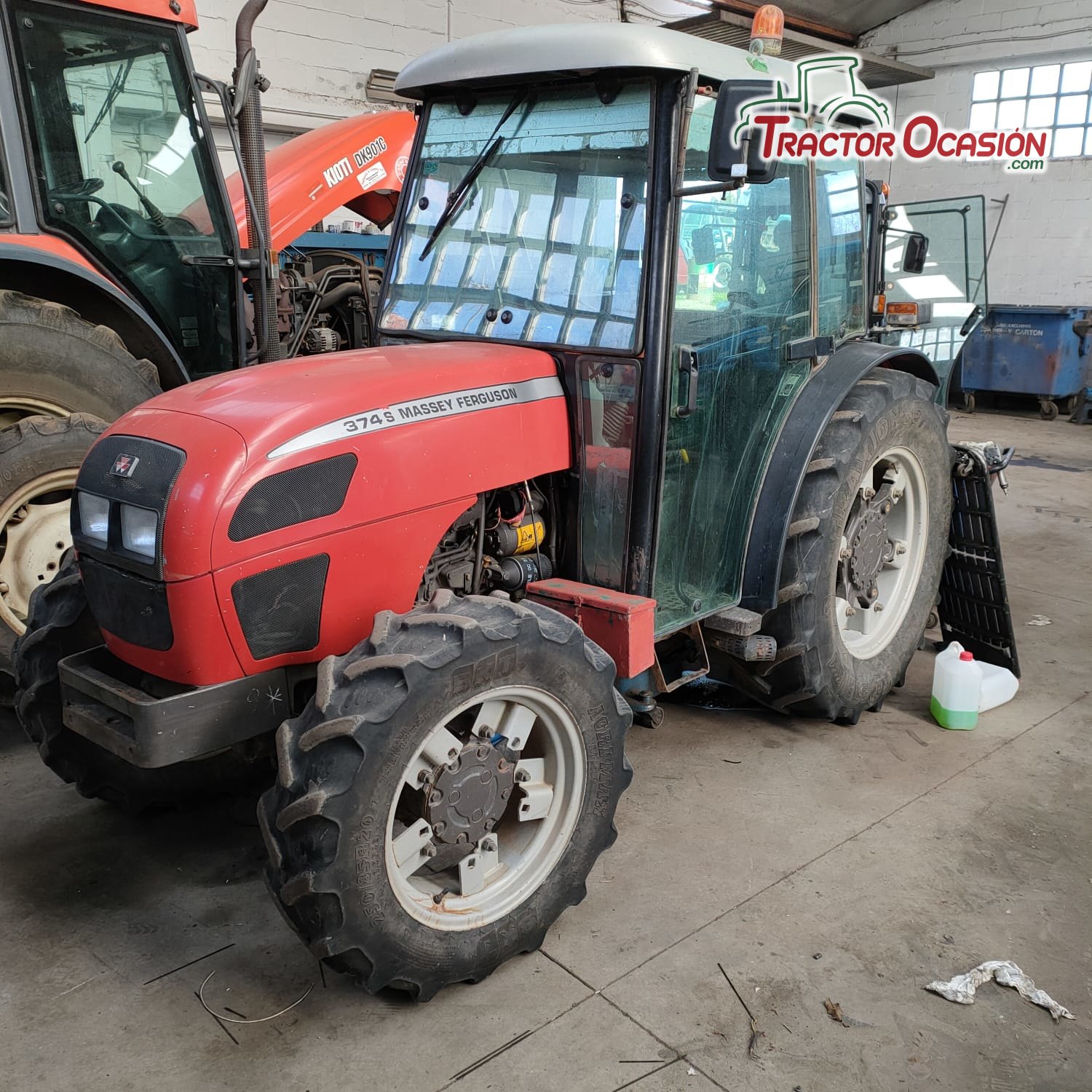

Massey Ferguson 374S

Name: Massey Ferguson 374S
Brand: Massey Ferguson

Massey Ferguson 374S — 304 Specialty Series · 57 hp. Reference specifications; pending source verification.

The Massey Ferguson 374S is a tractor with a power rating of approximately 57 hp, positioning it at the lighter end of its class. It was manufactured between 1994 and 1999 and features a 4-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a 12-speed gearbox. The operating weight of the 374S is specified as between 5181 and 5512 pounds. It is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

57 hp

Weight

5181 to 5512 pounds

Catalogue coverage

Variants represented

Richest spec table

68 rows

Recorded power

57 hp

Recorded weight

2350 kg

Transmissions

12-speed synchro

Production years

1994-1999

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Orchard/Vineyard tractorReference

Built in ItalyReference

Original price was $26,500 in 1999Reference

Two- or four-wheel driveReference

Differential lockelectro-hydraulic front and rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Two-post mid-mount ROPS. Cab available.Reference

Variants

374SnarrowReference

374FnarrowReference

374GElow-profileReference

374Vultra-narrowReference

Engine

Perkins 3.9L 4-cyl dieselReference

Fuel tank53.0 LReference

Perkins A4.236Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.9 LReference

Bore/Stroke98 x 127 mmReference

Air cleanerdryReference

Rated RPM2200Reference

Starter volts12Reference

Transmission

12-speed synchroReference

12-speed shuttleReference

24-speed creeperReference

TypesynchroReference

Gears12 forward and 4 reverseReference

Clutch279mm dry discReference

TypeshuttleReference

Gears12 forward and reverseReference

Clutch305mm dry discReference

TypecreeperReference

Gears24 forward and 12 reverseReference

PTO & Hydraulics

PTO (claimed)42.5 kWReference

Rear valves2Reference

Front valves3Reference

Pump flow42.4 lpmReference

Pump flow54.1 lpmReference

Rear TypeII/IReference

Rear lift (at ends)2600 kgReference

Rear PTOindependentReference

Rear PTO Type540/750Reference

Rear PTO Type540/1000Reference

Engine RPM540@1960Reference

Dimensions

2WD Wheelbase207 cmReference

4WD Wheelbase201 cmReference

Weight5181 to 5512 poundsReference

Front tire7.5L-15Reference

2WD Rear tire14.9-24Reference

2WD Standard tires (ag)Front: 7.5L-15. Rear: 14.9-24Reference

4WD Standard tires (ag)Front: 7.5-18. Rear: 14.9-24Reference

Length344 cmReference

Width135 cmReference

2WD Weight2350 kgReference

4WD Weight2500 kgReference

Clearance (drawbar)36 cmReference

2WD Front tread108 to 148 cmReference

4WD Front tread107 to 137 cmReference

Rear tread98 to 152 cmReference

Steering wheel138 cmReference

Massey Ferguson 374S attachments

front-end loaderReference

Electrical

GroundnegativeReference

Battery volts12Reference

Massey Ferguson 374S Height

Hood124 cmReference

Cab226 cmReference

Speeds

With 13.6-28 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
