Tractor · 1994Unverified

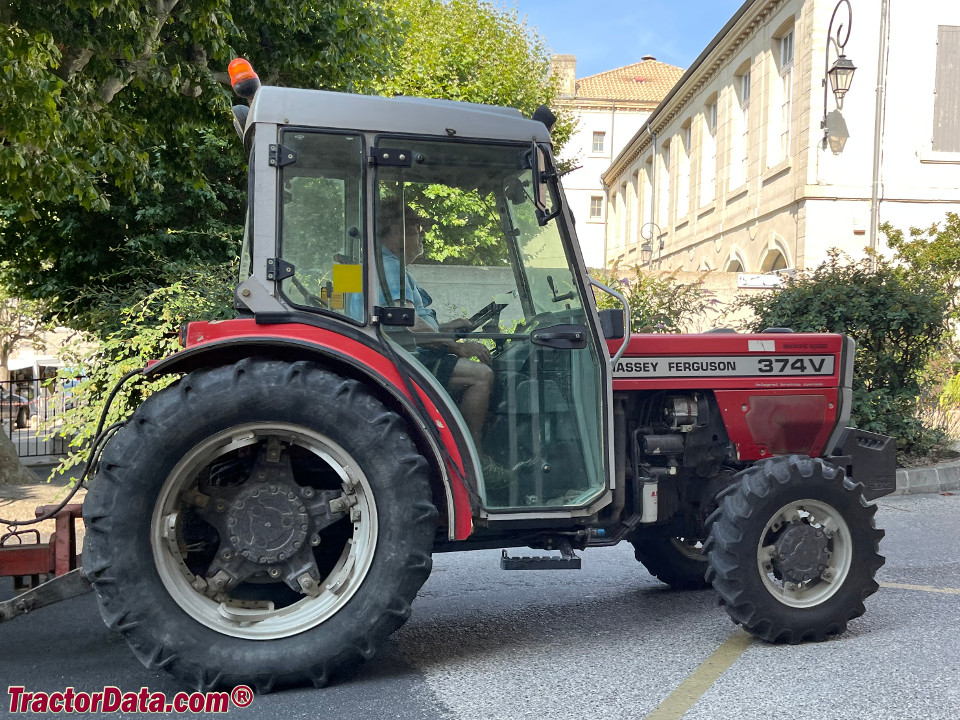

Massey Ferguson 374V

Name: Massey Ferguson 374V
Brand: Massey Ferguson

Massey Ferguson 374V — 304 Specialty Series · 57 hp. Reference specifications; pending source verification.

The Massey Ferguson 374V is a tractor model with a rated power of 57 hp, categorising it among the lighter models in its class. Produced from 1994 to 1999, this model is powered by a 4-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a 12-speed gearbox. The operating weight of the tractor is 2750 kg, and it is suitable for operations on up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

57 hp

Weight

2750 kg

Catalogue coverage

Variants represented

Richest spec table

59 rows

Recorded power

57 hp

Recorded weight

2750 kg

Transmissions

12-speed shuttle

Production years

1994-1999

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Orchard/Vineyard tractorReference

Built in ItalyReference

Original price was $35,000 in 1999Reference

Two- or four-wheel driveReference

Differential lockelectro-hydraulic front and rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Two-post mid-mount ROPS. Cab available.Reference

Variants

374SnarrowReference

374FnarrowReference

374GElow-profileReference

374Vultra-narrowReference

Engine

Perkins 3.9L 4-cyl dieselReference

Fuel tank53.0 LReference

Perkins A4.236Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.9 LReference

Bore/Stroke98 x 127 mmReference

Air cleanerdryReference

Rated RPM2200Reference

Starter volts12Reference

Transmission

12-speed shuttleReference

24-speed creeperReference

TypeshuttleReference

Gears12 forward and reverseReference

Clutch305mm dry discReference

TypecreeperReference

Gears24 forward and 12 reverseReference

PTO & Hydraulics

PTO (claimed)42.5 kWReference

Rear valves2 to 5Reference

Pump flow54.1 lpmReference

Rear TypeII/IReference

Rear lift (at ends)2600 kgReference

Rear PTOindependentReference

Rear PTO Type540/750Reference

Rear PTO Type540/1000Reference

Engine RPM540@1960Reference

Dimensions

2WD Wheelbase210 cmReference

4WD Wheelbase201 cmReference

Weight2750 kgReference

Front tire6.00-16Reference

2WD Rear tire360-70R28Reference

2WD Standard tires (ag)Front: 6.00-16. Rear: 360-70R28Reference

4WD Standard tires (ag)Front: 260-70R16. Rear: 13.6R28Reference

Length368 cmReference

Width122 cmReference

2WD Clearance (drawbar)40 cmReference

4WD Clearance (drawbar)34 cmReference

2WD Front tread99 to 121 cmReference

4WD Front tread89 to 117 cmReference

Rear tread87 to 114 cmReference

Steering wheel140 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Massey Ferguson 374V Height

Hood128 cmReference

Cab225 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
