Tractor · 1987Unverified

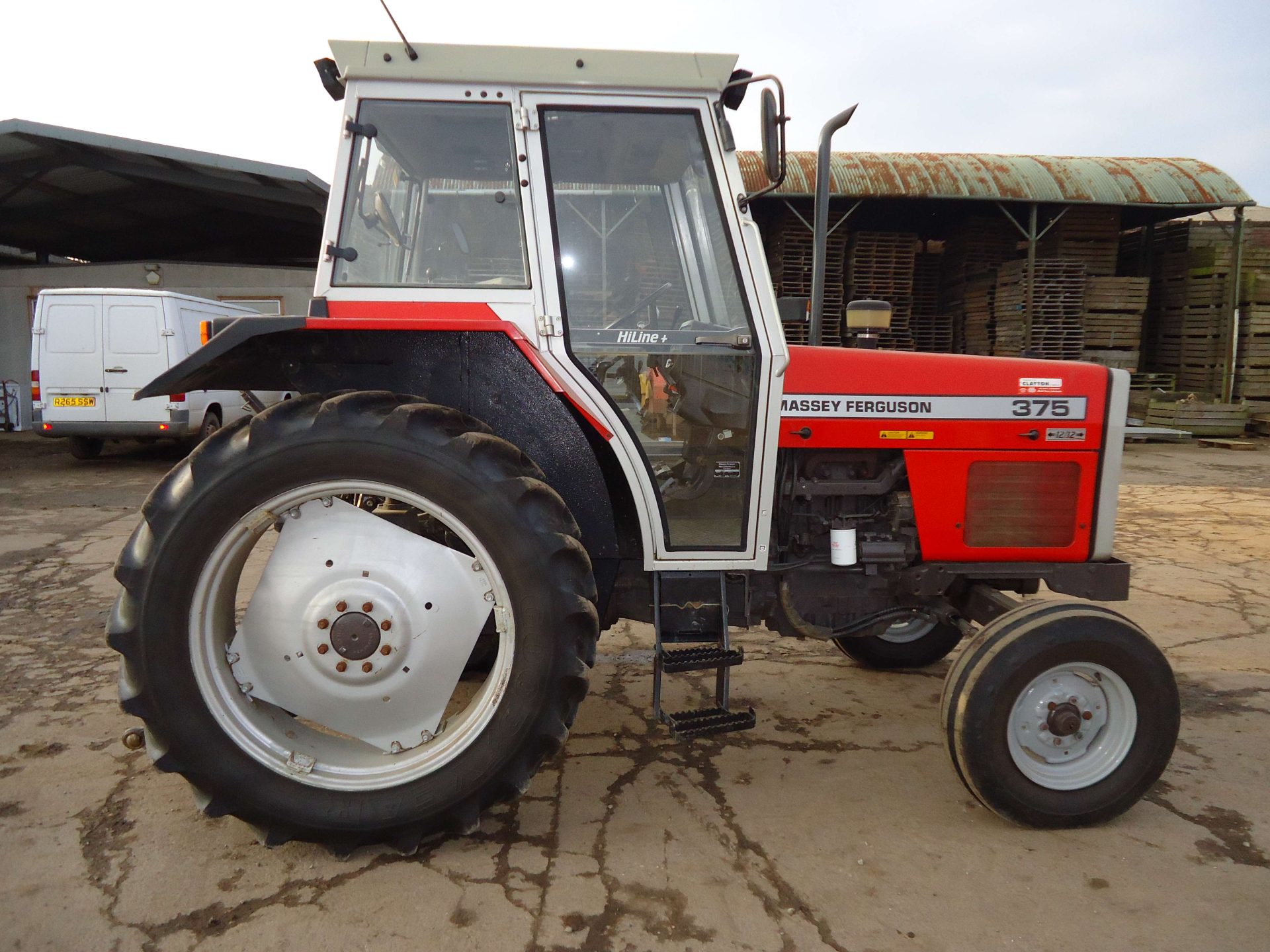

Massey Ferguson 375
Massey Ferguson 375 — Model year 1987-19881989-1997 · 63 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
63 hp
Weight
6240 to 7517 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Utility tractorReference
Built in Coventry, EnglandReference
Original price was $28,100 in 1997Reference
Two- or four-wheel driveReference
Power steeringReference
Differential wet disc brakesReference
Two-post fixed ROPS. Cab optional with air-conditioning.Reference
Engine
Perkins 3.9L 4-cyl dieselReference
Engine52.2 kWReference
Perkins A4.236Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke98 x 127 mmReference
Power52.2 kWReference
Fuel systemdirect injectionReference
Air cleanerdual dry elementReference
Compression16:1Reference
Rated RPM2200Reference
Idle RPM750-2310Reference
Torque268.5 NmReference
Torque RPM1400Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity15.1 LReference
Oil capacity7.5 LReference
Oil change250 hReference
Transmission
12-speed synchromeshReference
12-speed two-speed power shiftReference
8-speedReference
12-speed synchronized shuttleReference
TypesynchromeshReference
Gears12 forward and 4 reverseReference
TransmissionMulti-PowerReference
Typetwo-speed power shiftReference
Three speeds in two ranges, with high-low power shift.Reference
Gears8 forward and 2 reverseReference
Four speeds in two ranges. Available on the "value priced" 375.Reference
TransmissionSide ShiftReference
Typesynchronized shuttleReference
Gears12 forward and reverseReference
PTO & Hydraulics
PTO (claimed)47.0 kWReference
Hydraulic system43.5 LReference
Typeopen centerReference
Capacity43.5 LReference
Pressure206.8 barReference
Valves2Reference
Pump flow36.0 lpmReference
Pump flow16.7 lpmReference
Total flow52.6 lpmReference
Total flow63.6 lpmReference
Rear TypeIIReference
Rear lift1927 kgReference
Rear lift (at ends)2145 kgReference
Rear lift (at ends)2528 kgReference
Rear lift (at ends)2585 kgReference
Rear lift (at ends)3059 kgReference
Rear lift (at ends)2453 kgReference
Rear PTOindependentReference
Rear PTOliveReference
Rear PTO Type540/1000 (1.375)Reference
Rear PTO Type540 (1.375)Reference
Capacities
Fuel107.9 LReference
Dimensions
2WD Wheelbase213 cmReference
4WD Wheelbase234 cmReference
Weight6240 to 7517 poundsReference
Front tire7.50-16Reference
2WD Rear tire18.4/15-30Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 18.4/15-30Reference
4WD Standard tires (ag)Front: 12.4-24. Rear: 18.4/15-30Reference
2WD Length366 cmReference
4WD Length388 cmReference
Width187 cmReference
2WD Clearance (front axle)53 cmReference
4WD Clearance (front axle)42 cmReference
Clearance (drawbar)37 cmReference
2WD ROPS2830 kgReference
4WD ROPS3114 kgReference
2WD Cab3134 kgReference
4WD Cab3409 kgReference
Steering wheel178 cmReference
Massey Ferguson 375 attachments
front-end loaderReference
375 Serial Number Location
Serial number plate on the right side of the tractor, near the brake pedals.Reference
375 Serial Numbers
1986U01001Reference
1987V01001Reference
1988N01001Reference
1989P01001Reference
1990R01001Reference
1991S01001Reference
1992A01001Reference
1993B01001Reference
1994C01001Reference
1995D01001Reference
1996E01001Reference
1997F01001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps45Reference
Battery CCA420 (2x)Reference
Battery CCA540 (1x)Reference
Battery volts12Reference
Attachment overview
Massey Ferguson 236 loaderReference
Massey Ferguson 838 loaderReference
The four-wheel drive Massey Ferguson 375 was only compatible with the model 838 front-end loader.Reference
Massey Ferguson 375 Height
ROPS252 cmReference
Cab250 cmReference
Cab262 cmReference
Exhaust248 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
