Tractor · 1987Unverified
Massey Ferguson 390
Massey Ferguson 390 — Model year 1987-19881989-1997 · 72 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
72 hp
Weight
6275 to 7552 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Utility tractorReference
Built in Coventry, EnglandReference
Original price was $32,000 in 1997Reference
Two- or four-wheel driveReference
Power steeringReference
Differential wet disc brakesReference

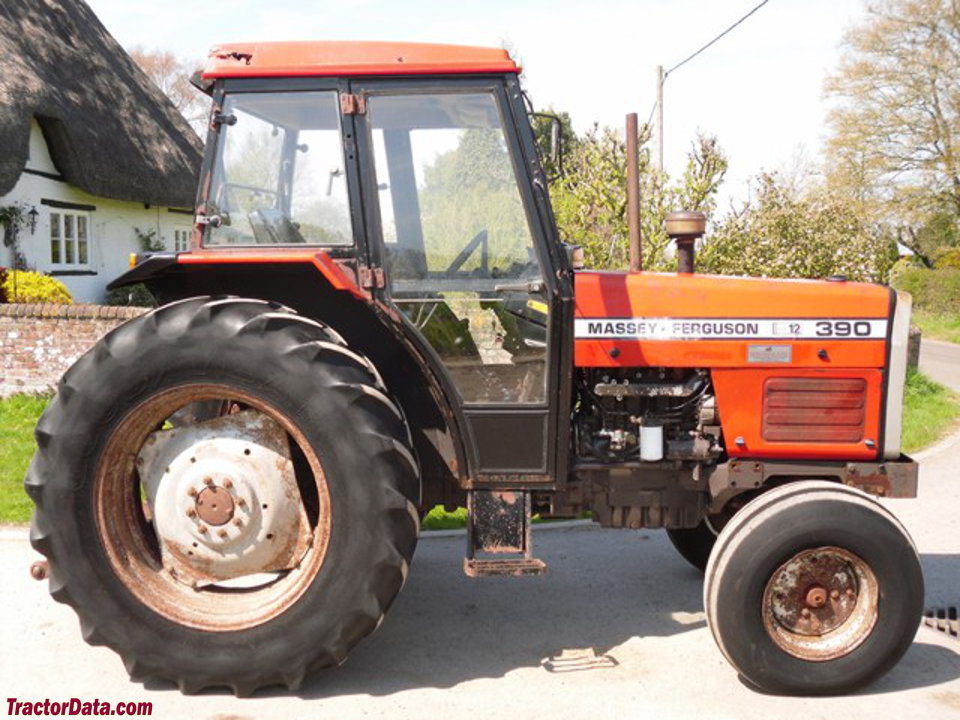

Two-post fixed ROPS. Cab optional with air-conditioning.Reference
Engine
Perkins 4.1L 4-cyl dieselReference
Engine58.9 kWReference
Perkins A4.248Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.1 LReference
Bore/Stroke101 x 127 mmReference
Power58.9 kWReference
Fuel systemdirect injectionReference
Air cleanerdual dry elementReference
Compression16:1Reference
Rated RPM2200Reference
Idle RPM750-2310Reference
Torque283.4 NmReference
Torque RPM1400Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity15.1 LReference
Oil capacity7.5 LReference
Oil change250 hReference
Transmission
12-speed synchromeshReference
12-speed partial power shiftReference
8-speedReference
12-speed synchronized shuttleReference
18-speed two-speed power shiftReference
TypesynchromeshReference
Gears12 forward and 4 reverseReference
TransmissionMulti-PowerReference
Typepartial power shiftReference
Three forward gears plus one reverse in two ranges. Multi-Power provides two-speed power shift at each gear.Reference
Gears8 forward and 2 reverseReference
Four speeds in two ranges. Eight-speed transmission available on the "value-priced" Massey-Ferguson 390.Reference
TransmissionSide ShiftReference
Typesynchronized shuttleReference
Gears12 forward and reverseReference
TransmissionSpeedshiftReference
Typetwo-speed power shiftReference
Gears18 forward and 6 reverseReference
PTO & Hydraulics
PTO (claimed)53.7 kWReference
Hydraulic system47.3 LReference
Typeopen centerReference
Capacity47.3 LReference
Pressure206.8 barReference
Valves2Reference
Pump flow36.0 lpmReference
Pump flow16.7 lpmReference
Total flow52.6 lpmReference
Total flow63.6 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift1927 kgReference
Rear lift (at ends)2585 kgReference
Rear lift (at ends)3059 kgReference
Rear lift (at ends)2453 kgReference
Rear PTOindependentReference
Rear PTOlive (optional)Reference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference
Capacities
Fuel107.9 LReference
Dimensions
2WD Wheelbase213 cmReference
4WD Wheelbase234 cmReference
Weight6275 to 7552 poundsReference
Front tire7.50-16Reference
2WD Rear tire18.4/15-30Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 18.4/15-30Reference
4WD Standard tires (ag)Front: 12.4-24. Rear: 18.4/15-30Reference
2WD Length366 cmReference
4WD Length388 cmReference
Width197 cmReference
2WD Clearance (front axle)53 cmReference
4WD Clearance (front axle)42 cmReference
Clearance (drawbar)37 cmReference
2WD ROPS2846 kgReference
4WD ROPS3130 kgReference
2WD Cab3150 kgReference
4WD Cab3425 kgReference
Steering wheel178 cmReference
Massey Ferguson 390 attachments
front-end loaderReference
390 Serial Number Location
Serial number plate on the right side of the tractor, near the brake pedals.Reference
390 Serial Numbers
1986U01001Reference
1987V01001Reference
1988N01001Reference
1989P01001Reference
1990R01001Reference
1991S01001Reference
1992A01001Reference
1993B01001Reference
1994C01001Reference
1995D01001Reference
1996E01001Reference
1997F01001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps45Reference
Battery CCA420 (2x)Reference
Battery CCA540 (1x)Reference
Battery volts12Reference
Attachment overview
Massey Ferguson 236 loaderReference

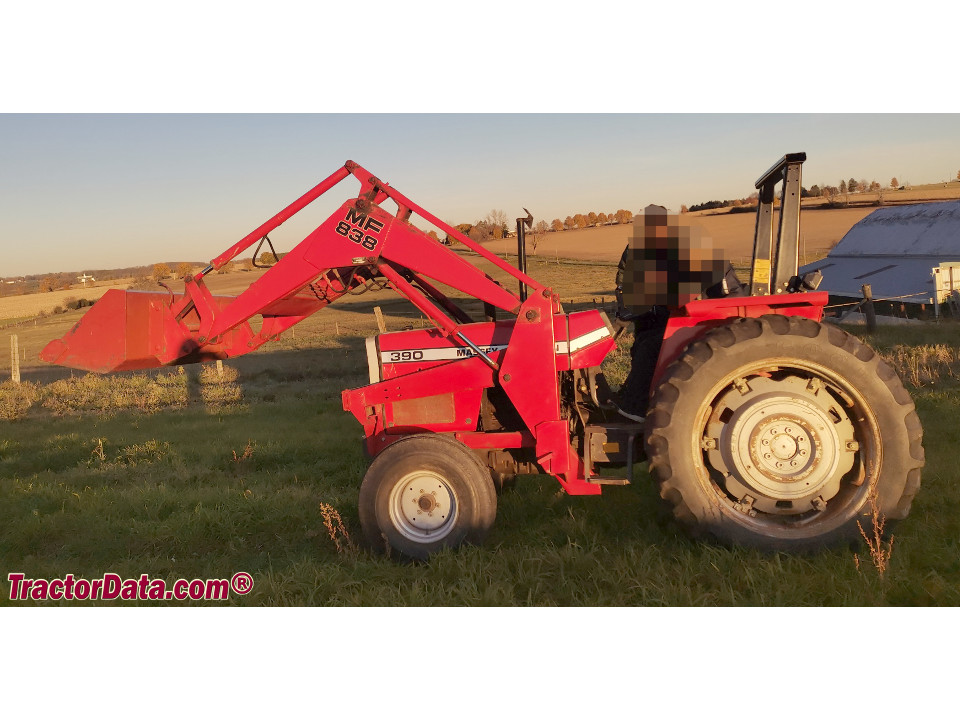

Massey Ferguson 838 loaderReference
The four-wheel drive Massey Ferguson 390 was only compatible with the model 838 front-end loader.Reference
Massey Ferguson 390 Height
ROPS252 cmReference
Cab252 cmReference
Cab264 cmReference
Exhaust248 cmReference
Test results
Diesel 12-speed 2WDSeptember 1987 - 1987,Reference
Diesel 12-speed 4WDSeptember 1987 - 1987,Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
