Tractor · 1989Unverified

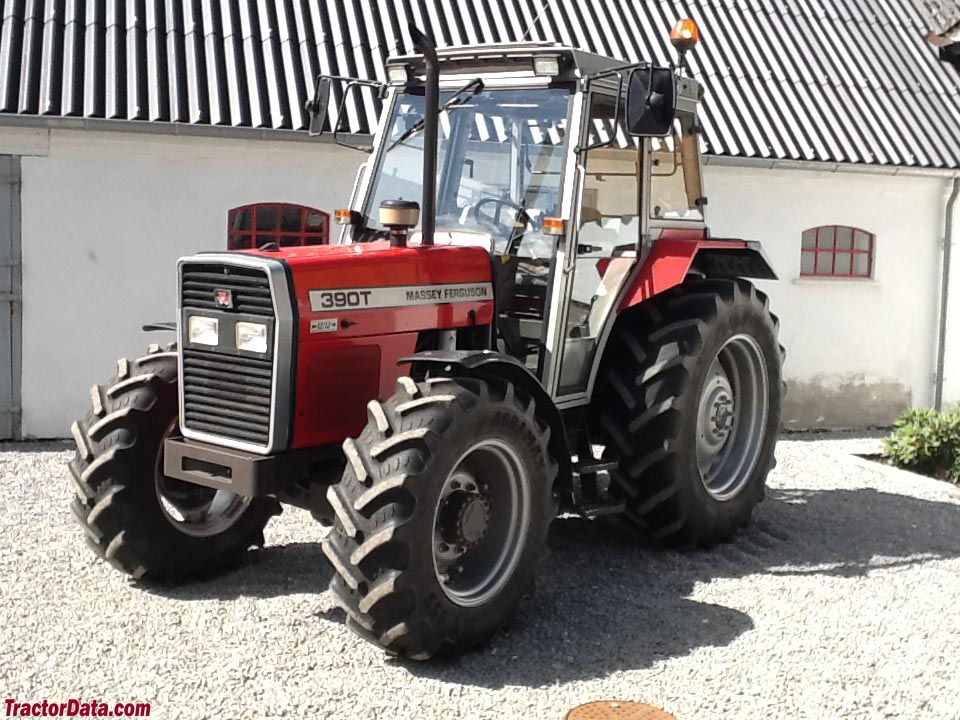

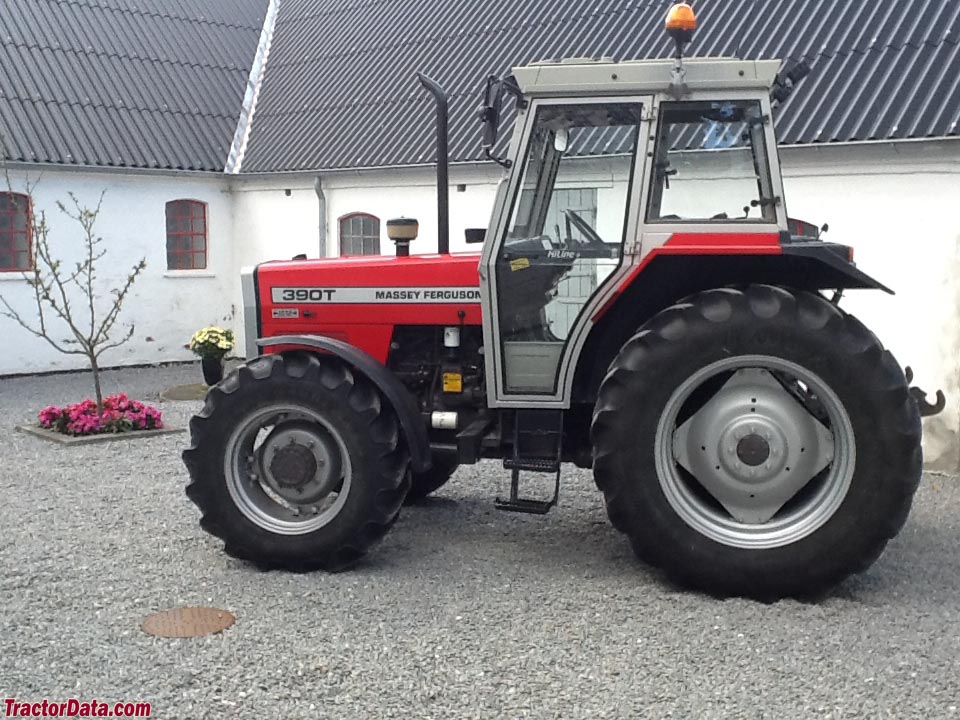

Massey Ferguson 390T
Massey Ferguson 390T — 300 Series · 80 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
80 hp
Max power
48.6 kW
Weight
6325 to 7602 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Utility tractorReference
Built in Coventry, EnglandReference
Original price was $34,000 in 1997Reference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post fixed ROPS. Cab optional with air-conditioning.Reference
Engine
Perkins 3.9L 4-cyl dieselReference
Engine68.6 kWReference
Drawbar (tested)48.6 kWReference
Perkins AT4.236Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke98 x 127 mmReference
Power68.6 kWReference
Fuel systemdirect injectionReference
Air cleanerdual dry elementReference
Compression15.5:1Reference
Rated RPM2200Reference
Idle RPM750-2310Reference
Torque349.8 NmReference
Torque RPM1400Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity15.5 LReference
Oil capacity7.7 LReference
Oil change250 hReference
Power at rated engine speed59.8 kWReference
Max power48.6 kWReference
Transmission
12-speed synchromeshReference
12-speed synchronized shuttleReference
18-speed two-speed power shiftReference
TypesynchromeshReference
Gears12 forward and 4 reverseReference
Three gears in two ranges with two-speed high/low shift.Reference
TransmissionSide ShiftReference
Typesynchronized shuttleReference
Gears12 forward and reverseReference
TransmissionSpeedshiftReference
Typetwo-speed power shiftReference
Gears18 forward and 6 reverseReference
PTO & Hydraulics
PTO (claimed)63.4 kWReference
PTO (tested)59.8 kWReference
Hydraulic system47.3 LReference
Typeopen centerReference
Capacity47.3 LReference
Pressure206.8 barReference
Valves2Reference
Pump flow27.3 lpmReference
Pump flow36.0 lpmReference
Total flow63.6 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift (at ends)2585 kgReference
Rear lift (at ends)3059 kgReference
Rear lift (at ends)2453 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Power at rated PTO speed56.0 kWReference
Capacities
Fuel107.9 LReference
Dimensions
2WD Wheelbase213 cmReference
4WD Wheelbase234 cmReference
Weight6325 to 7602 poundsReference
Front tire7.50-16Reference
Rear tire18.4-30Reference
Ag front7.50-16Reference
Ag rear18.4-30Reference
2WD Length371 cmReference
4WD Length400 cmReference
Width187 cmReference
2WD Clearance (front axle)53 cmReference
4WD Clearance (front axle)42 cmReference
Clearance (drawbar)37 cmReference
2WD ROPS2869 kgReference
4WD ROPS3153 kgReference
2WD Cab3172 kgReference
4WD Cab3448 kgReference
Steering wheel178 cmReference
Massey Ferguson 390T attachments
front-end loaderReference
390T Serial Number Location
Serial number plate on the right side of the tractor, near the brake pedals.Reference
390T Serial Numbers
1986U01001Reference
1987V01001Reference
1988N01001Reference
1989P01001Reference
1990R01001Reference
1991S01001Reference
1992A01001Reference
1993B01001Reference
1994C01001Reference
1995D01001Reference
1996E01001Reference
1997F01001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps45Reference
Battery CCA420 (2x)Reference
Battery CCA540 (1x)Reference
Battery volts12Reference
Attachment overview
Massey Ferguson 236 loaderReference
Massey Ferguson 838 loaderReference
The four-wheel drive Massey Ferguson 390T was only compatible with the model 838 front-end loader.Reference
Massey Ferguson 390T Height
ROPS252 cmReference
Cab252 cmReference
Cab264 cmReference
Exhaust248 cmReference
Test results
Diesel 12-speed 4WDOctober 1989 - 1989, Link: OCED Tractor Test 1256 fileReference
PTO performanceReference
Fuel use18.5 l/hourReference
Fuel use16.3 l/hourReference
Drawbar performanceReference
Fuel use20.4 l/hourReference
Gear 2HL used for power test.Reference
Max pull3109 kgReference
Gear 3LL used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
