Tractor · 1992Unverified

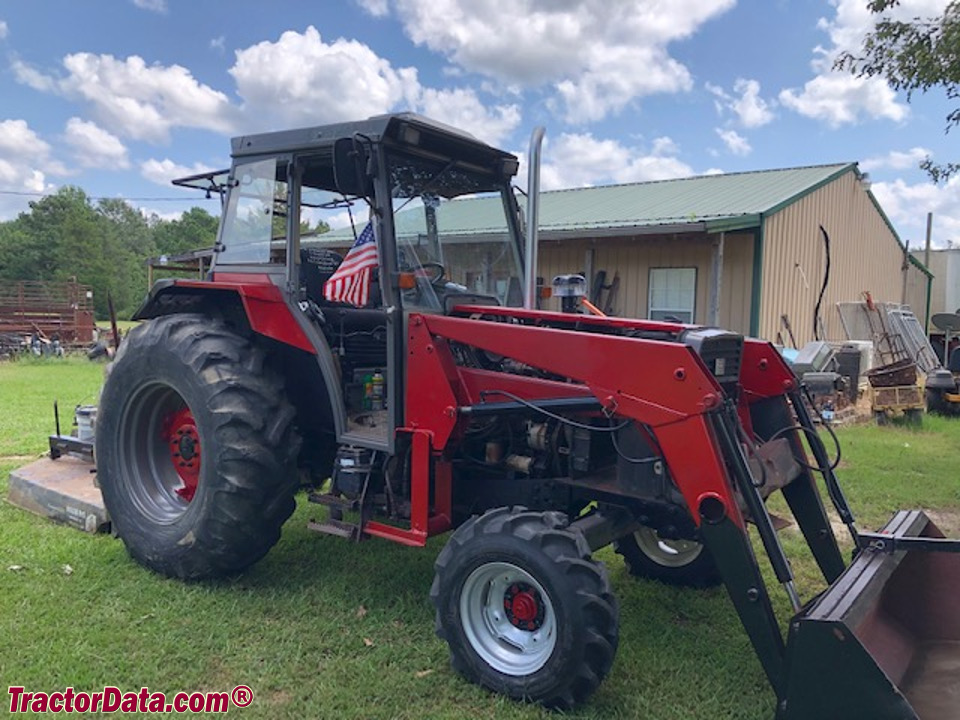

Massey Ferguson 393
Massey Ferguson 393 — 300 Series · 85 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
85 hp
Max power
53.3 kW
Weight
6371 to 7636 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Utility tractorReference
Built in Coventry, EnglandReference
Original price was $30,200 in 1997Reference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post fixed ROPS. Cab optional with air-conditioning.Reference
Engine
Perkins 3.9L 4-cyl dieselReference
Engine70.8 kWReference
Drawbar (tested)53.3 kWReference
Perkins AT4.236Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke98 x 127 mmReference
Power70.8 kWReference
Rated RPM2200Reference
Starter volts12Reference
Coolant capacity15.1 LReference
Power at rated engine speed63.1 kWReference
Max power53.3 kWReference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
Clutchdry discReference
PTO & Hydraulics
PTO (claimed)61.9 kWReference
PTO (tested)63.1 kWReference
Hydraulic system43.5 LReference
Typeopen centerReference
Capacity43.5 LReference
Valves2Reference
Pump flow36.0 lpmReference
Rear TypeIIReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Power at rated PTO speed59.2 kWReference
Capacities
ROPS Fuel107.9 LReference
Cab Fuel126.0 LReference
Dimensions
2WD Wheelbase213 cmReference
4WD Wheelbase234 cmReference
Weight6371 to 7636 poundsReference
Front tire9.5L-15Reference
Rear tire18.4-30Reference
Ag front9.5L-15Reference
Ag rear18.4-30Reference
2WD Length366 cmReference
4WD Length388 cmReference
Width200 cmReference
Height (ROPS)249 cmReference
Height (cab)266 cmReference
2WD ROPS2889 kgReference
4WD ROPS3168 kgReference
2WD Cab3184 kgReference
4WD Cab3463 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Test results
Diesel 8-speed 4WDApril 1992 - May 1992, Link: OCED Tractor Test 1390 fileReference
PTO performanceReference
Fuel use20.1 l/hourReference
Fuel use17.4 l/hourReference
Drawbar performanceReference
Max pull3447 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
