Tractor · 1994Unverified

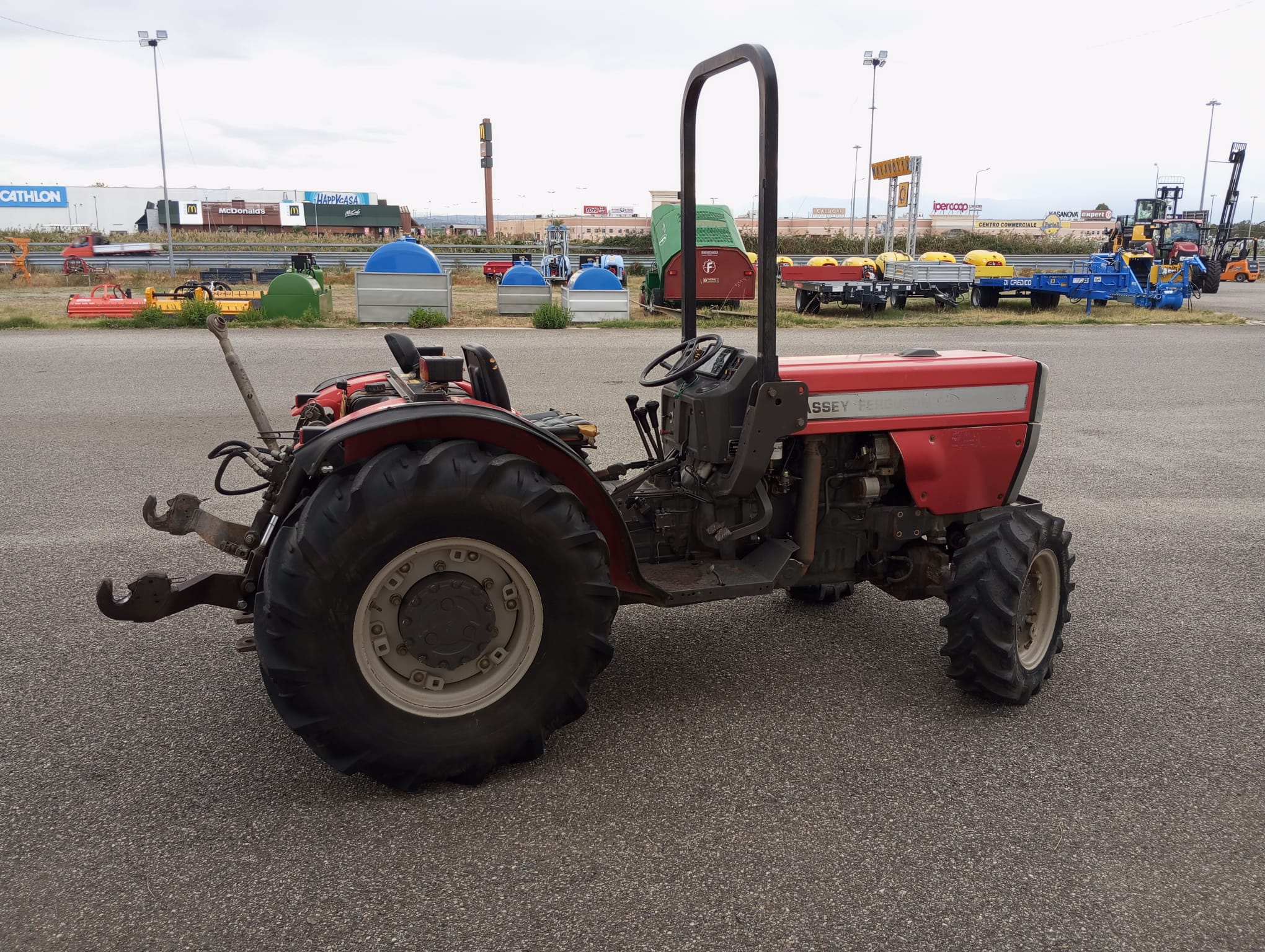

Massey Ferguson 394GE

Name: Massey Ferguson 394GE
Brand: Massey Ferguson

Massey Ferguson 394GE — 304 Specialty Series · 73 hp. Reference specifications; pending source verification.

The Massey Ferguson 394GE is a tractor model with a rated output of 73 hp, placing it in the middle of its class for power. It was manufactured from 1994 to 1999. The tractor features a 4-cylinder diesel liquid-cooled engine, which powers four-wheel drive via a 12-speed gearbox. Its listed weight ranges from 4895 to 5248 pounds, suitable for tasks covering approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

73 hp

Weight

4895 to 5248 pounds

Catalogue coverage

Variants represented

Richest spec table

63 rows

Recorded power

73 hp

Recorded weight

2220 kg

Transmissions

12-speed synchro

Production years

1994-1999

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Orchard/Vineyard tractorReference

Built in ItalyReference

Original price was $37,500 in 1999Reference

Two- or four-wheel driveReference

Differential lockelectro-hydraulic front and rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Two-post mid-mount folding ROPS.Reference

Variants

394SnarrowReference

394GElow profileReference

394HChigh clearanceReference

Engine

Perkins 4.1L 4-cyl dieselReference

Fuel tank45.4 LReference

Perkins A4.248Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.1 LReference

Bore/Stroke101 x 127 mmReference

Air cleanerdryReference

Rated RPM2200Reference

Starter volts12Reference

Transmission

12-speed synchroReference

12-speed shuttleReference

24-speed creeperReference

TypesynchroReference

Gears12 forward and 4 reverseReference

Clutch279mm dry discReference

TypeshuttleReference

Gears12 forward and reverseReference

Clutch305mm dry discReference

TypecreeperReference

Gears24 forward and 12 reverseReference

PTO & Hydraulics

PTO (claimed)54.4 kWReference

Rear valves2Reference

Front valves3Reference

Pump flow42.4 lpmReference

Rear TypeII/IReference

Rear lift (at ends)2600 kgReference

Rear PTOindependentReference

Rear PTO Type540/750Reference

Rear PTO Type540/1000Reference

Engine RPM540@1960Reference

Dimensions

2WD Wheelbase207 cmReference

4WD Wheelbase201 cmReference

Weight4895 to 5248 poundsReference

Front tire9.00-10Reference

2WD Rear tire14.9LR20Reference

2WD Standard tires (ag)Front: 9.00-10. Rear: 14.9LR20Reference

4WD Standard tires (ag)Front: 9.0/75-16. Rear: 14.9LR20Reference

Length344 cmReference

Width137 cmReference

Height (steering wheel)137 cmReference

Height (hood)123 cmReference

2WD Weight2220 kgReference

4WD Weight2380 kgReference

Clearance (drawbar)36 cmReference

2WD Front tread108 to 149 cmReference

4WD Front tread110 to 134 cmReference

Rear tread99 to 129 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
