Tractor · 1994Unverified

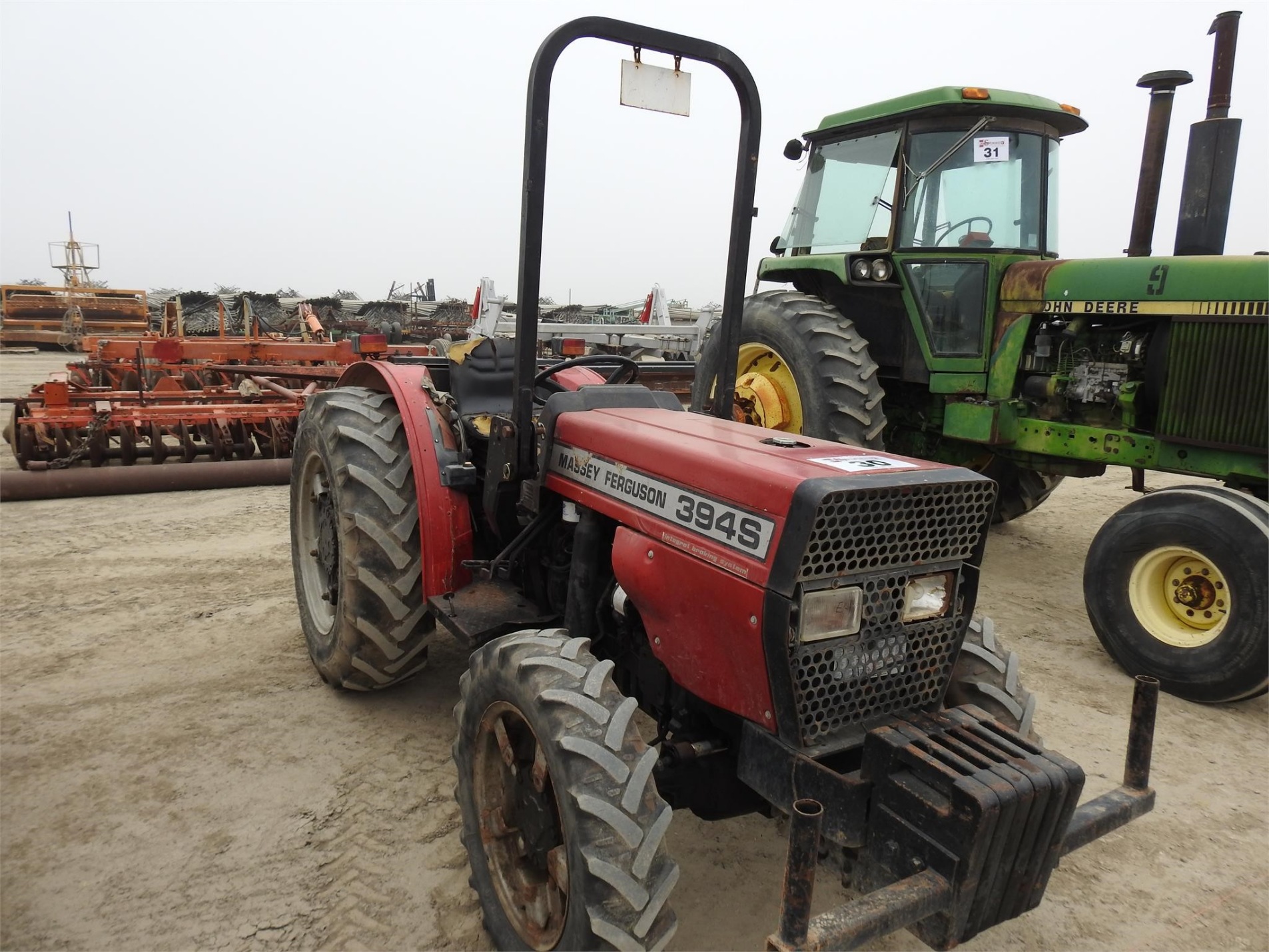

Massey Ferguson 394S
Massey Ferguson 394S — 304 Specialty Series · 73 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
73 hp
Weight
5291 to 5622 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Orchard/Vineyard tractorReference
Built in ItalyReference
Original price was $29,200 in 1999Reference
Two- or four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post mid-mount ROPS. Cab available.Reference
Variants
394SnarrowReference
394GElow profileReference
394HChigh clearanceReference
Engine
Perkins 4.1L 4-cyl dieselReference
Fuel tank53.0 LReference
Perkins A4.248Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.1 LReference
Bore/Stroke101 x 127 mmReference
Air cleanerdryReference
Rated RPM2200Reference
Starter volts12Reference
Transmission
12-speed synchroReference
12-speed shuttleReference
24-speed creeperReference
TypesynchroReference
Gears12 forward and 4 reverseReference
Clutch279mm dry discReference
TypeshuttleReference
Gears12 forward and reverseReference
Clutch305mm dry discReference
TypecreeperReference
Gears24 forward and 12 reverseReference
PTO & Hydraulics
PTO (claimed)54.4 kWReference
Rear valves2Reference
Front valves3Reference
Pump flow42.4 lpmReference
Rear TypeII/IReference
Rear lift (at ends)2600 kgReference
Rear PTOindependentReference
Rear PTO Type540/750Reference
Rear PTO Type540/1000Reference
Engine RPM540@1960Reference
Dimensions
2WD Wheelbase207 cmReference
4WD Wheelbase201 cmReference
Weight5291 to 5622 poundsReference
Front tire7.5L-16Reference
2WD Rear tire16.9-24Reference
2WD Standard tires (ag)Front: 7.5L-16. Rear: 16.9-24Reference
4WD Standard tires (ag)Front: 10.5-18. Rear: 16.9-24Reference
Length344 cmReference
Width140 cmReference
2WD Weight2399 kgReference
4WD Weight2550 kgReference
Clearance (drawbar)39 cmReference
2WD Front tread108 to 148 cmReference
4WD Front tread107 to 137 cmReference
Rear tread98 to 152 cmReference
Steering wheel141 cmReference
Massey Ferguson 394S attachments
front-end loaderReference
Electrical
GroundnegativeReference
Battery volts12Reference
Massey Ferguson 394S Height
Hood128 cmReference
Cab228 cmReference
Speeds
With 13.6-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
