Tractor · 2004Unverified

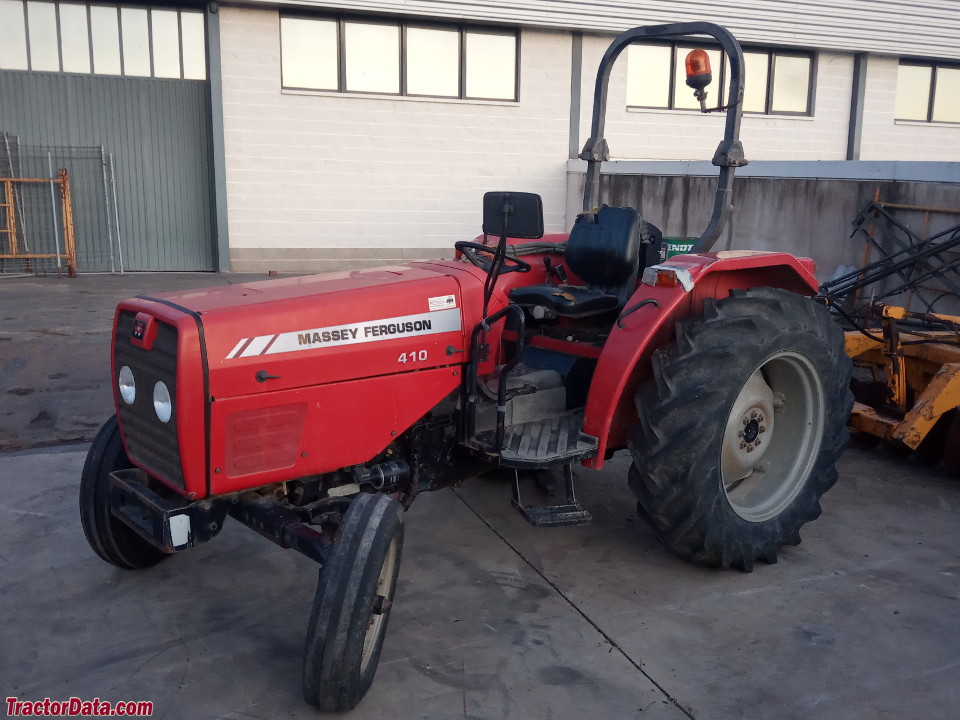

Massey Ferguson 410
Massey Ferguson 410 — 400 Series · 55 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
55 hp
Weight
2275 kg
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Utility tractorReference
Two-wheel driveReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulic (optional)Reference
Two-post foldable ROPS.Reference
Engine
Perkins 3.3L 3-cyl dieselReference
Engine41.0 kWReference
Perkins 1103C 33Reference
turbocharged dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement3.3 LReference
Bore/Stroke105 x 127 mmReference
Power41.0 kWReference
Air cleanerdual dry elementReference
Rated RPM2200Reference
Torque222.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed partially synchronizedReference
Typepartially synchronizedReference
Gears8 forward and 2 reverseReference
Clutch305mm cerametalicReference
Capacities
Fuel48.1 LReference
PTO & Hydraulics
Hydraulic system42.0 LReference
Capacity42.0 LReference
Pressure175.0 barReference
Valves1Reference
Pump flow52.6 lpmReference
Rear Type2/1Reference
Controldraft, position and response controlReference
Rear lift (at ends)1789 kgReference
Rear PTOlive (dual stage clutch)Reference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1789Reference
Dimensions
Wheelbase205 cmReference
Weight2275 kgReference
Front tire6.00-16Reference
Rear tire13.6-28Reference
Standard tires (ag)Front: 6.00-16. Rear: 13.6-28Reference
Length351 cmReference
Height (ROPS)237 cmReference
Height (Folded ROPS)181 cmReference
Operating weight2275 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
