Tractor · 2001Unverified

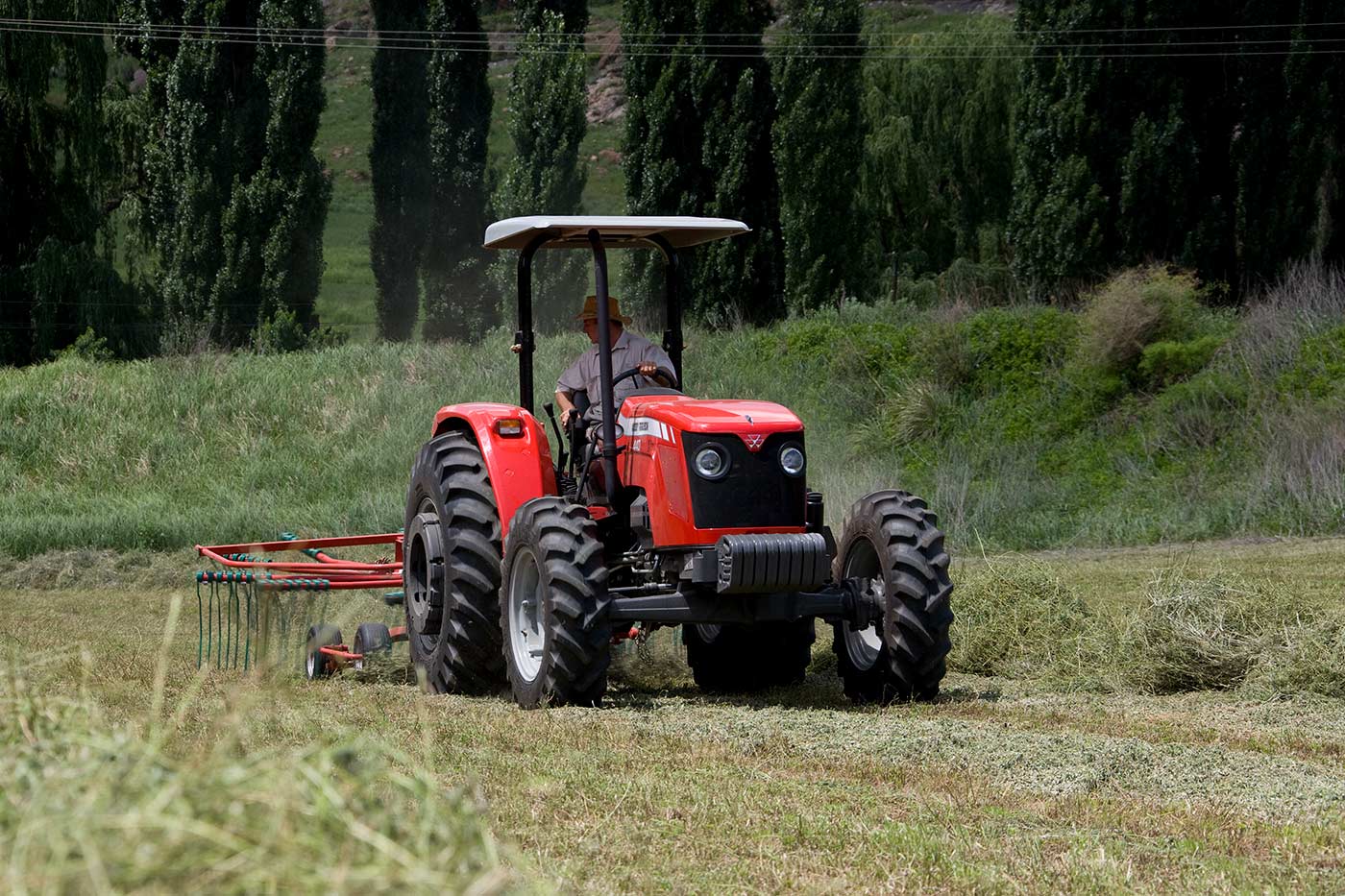

Massey Ferguson 415

Name: Massey Ferguson 415
Brand: Massey Ferguson

Massey Ferguson 415 — 400 Series · 40 hp. Reference specifications; pending source verification.

The Massey Ferguson 415 is a tractor model with an approximate power output of 40 hp, positioning it within the lower power range of its class. It was manufactured from 2001 to 2010. The 415 features a 3-cylinder diesel liquid-cooled engine, combined with mechanical front-wheel drive and a hydrostatic transmission. Its operating weight is listed as 4475 to 4872 pounds, suitable for use on areas up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

40 hp

Max power

46 hp

Weight

4475 to 4872 pounds

Catalogue coverage

Variants represented

Richest spec table

84 rows

Recorded power

40 hp

Recorded weight

2029 kg

Transmissions

8-speed sliding spur gear

Production years

2001-2010

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Utility tractorReference

Built in Canoas, BrazilReference

Drive4x2 2WDReference

Drive4x4 MFWD 4WD (optional)Reference

Steeringhydrostatic powerReference

Wet disc brakesReference

Open operator station. Two-post ROPS optional with available canopy.Reference

Variants

415utilityReference

415NnarrowReference

Engine

Perkins 2.5L 3-cyl dieselReference

Fuel tank57.2 LReference

Engine34.3 kWReference

Perkins AD3.152Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement2.5 LReference

Bore/Stroke91 x 127 mmReference

Power34.3 kWReference

Fuel systemdirect injectionReference

Rated RPM2250Reference

Torque181.0 NmReference

Torque RPM1350Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders3 cylinderReference

Rated engine speed2,250 RPMReference

Engine torque at rated speed60.6 kgReference

Bore and stroke3.60x5.00 inchesReference

Cooling systemliquid-cooledReference

Transmission

8-speed sliding spur gearReference

Typesliding spur gearReference

Gears8 forward and 2 reverseReference

Transmission TypeGearReference

forward and reverse optionsSliding Spur Gear : 8 F and 2 RReference

Wheel Drive2 WD | 4 WD (Optional)Reference

PTO & Hydraulics

PTO (claimed)29.6 kWReference

Pressure210.0 barReference

Pump flow17.0 lpmReference

Rear TypeIIReference

Controldraft, position, and response controlReference

Rear PTOliveReference

Rear PTOindependent (optional)Reference

Rear PTO Type540 (1.375)Reference

Engine RPM540@1900Reference

Dimensions

Wheelbase199 cmReference

Weight4475 to 4872 poundsReference

Front tire6.00-16Reference

Rear tire14.9-24 (2WD)Reference

Standard tires (ag)Front: 6.00-16. Rear: 14.9-24 (2WD)Reference

Standard tires (ag)Front: 12.5/80-18. Rear: 14.9-24 (4WD)Reference

Length384 cmReference

Height (ROPS)244 cmReference

Height (exhaust)210 cmReference

2WD Shipping weight2029 kgReference

4WD Shipping weight2209 kgReference

Electrical

GroundnegativeReference

Battery volts12Reference

General

Make & ModelMassey FergusonReference

Rollover protective structureTwo-post ROPS optional with available canopy.Reference

Country of manufacturerBrazilReference

Capacities

Capacity152.7 ciReference

Power

Max Power46 hpReference

Rated Power46 hpReference

PTO

PTO Power39.7 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Engine Speed on Rear PTO speed540@1,900 RPMReference

Steering & brakes

BrakesWet DiscReference

Steering typeHydrostatic PowerReference

Hydraulics

Maximum operating pressure3,046 psiReference

Rear Hitch category (SAE designation)Category IIReference

Rear Hitch Sensing Typedraft, position, and response controlReference

Dimensions & weight

Height Over ROPS244.1 cmReference

Overall Height244.1 cmReference

Overall Length384 cmReference

Overall weight2,209.9 kgReference

Wheels & tyres

Rear Wheel Type14.9-24 (2WD) | 14.9-24 (4WD)Reference

Front Wheel Type6.00-16. (2WD) | 12.5/80-18. (4WD)Reference

Operator station

Cab AvailabilityAvailableReference

Cab Air conditioning, temperature differentialOpen operator station.Reference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
