Tractor · 1962Unverified

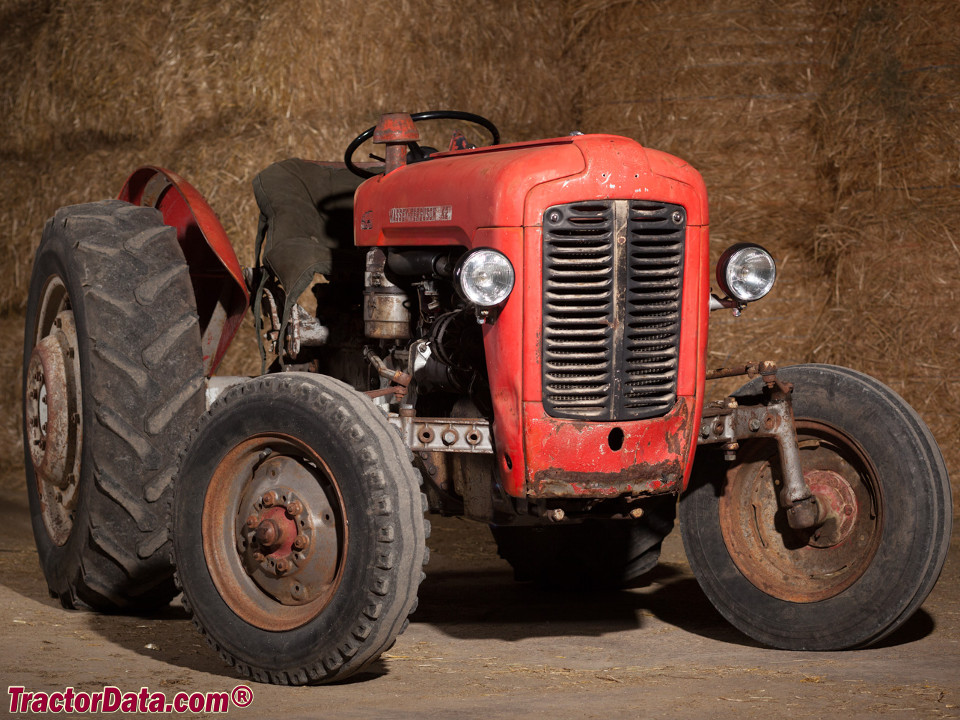

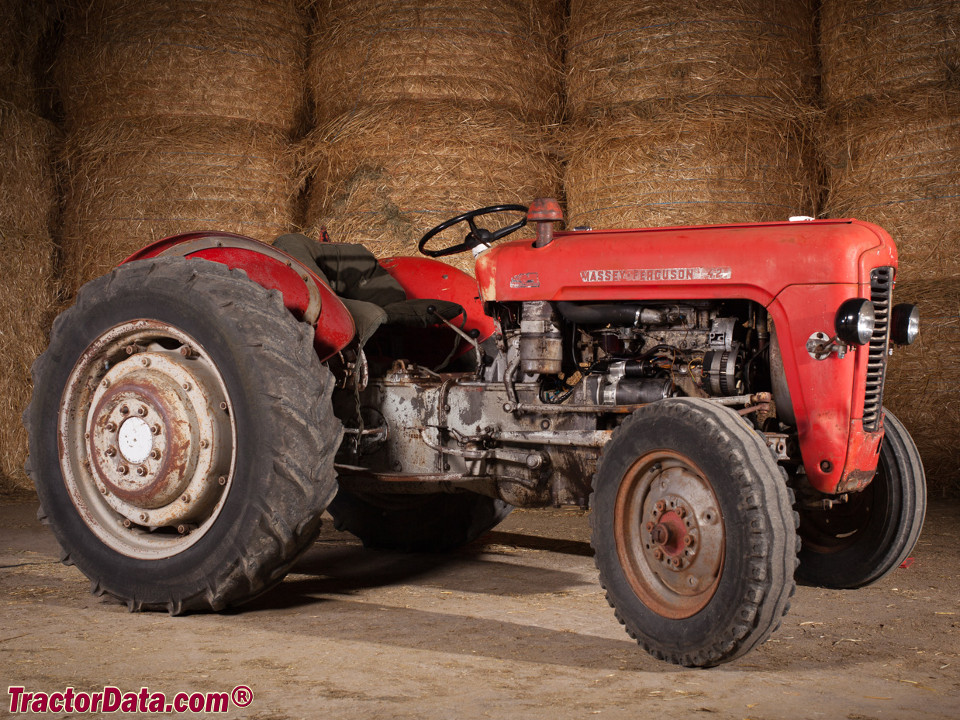

Massey Ferguson 42
Massey Ferguson 42 — Utility tractor · 42 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
42 hp
Weight
1650 kg
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Utility tractorReference
Built in Beauvais, FranceReference
Two-wheel driveReference
Open operator station.Reference
Engine
Perkins 2.5L 3-cyl dieselReference
Fuel tank38.6 LReference
Engine31.3 kWReference
Perkins A3.152Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke91 x 127 mmReference
Power31.3 kWReference
Compression17.4:1Reference
Rated RPM2250Reference
Idle RPM600-2500Reference
Firing order1-2-3Reference
Starter12Reference
Starter voltselectricReference
Coolant capacity10.2 LReference
Transmission
6-speed gearReference
12-speed two-speed power shiftReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutch280mm dry discReference
Oil capacity30.0 LReference
Three speeds, plus reverse, in two ranges.Reference
TransmissionMultipowerReference
Typetwo-speed power shiftReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
Rear TypeII/IReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1600Reference
Dimensions
Wheelbase183 cmReference
Weight1650 kgReference
Front tire6.00-16Reference
Rear tire11-28Reference
Ag front6.00-16Reference
Ag rear11-28Reference
Ag front6.00-19Reference
Ag rear12-28Reference
Ag rear11-32Reference
Length299 cmReference
Width183 cmReference
Height142 cmReference
Speeds
With 11-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
