Tractor · 1997Unverified

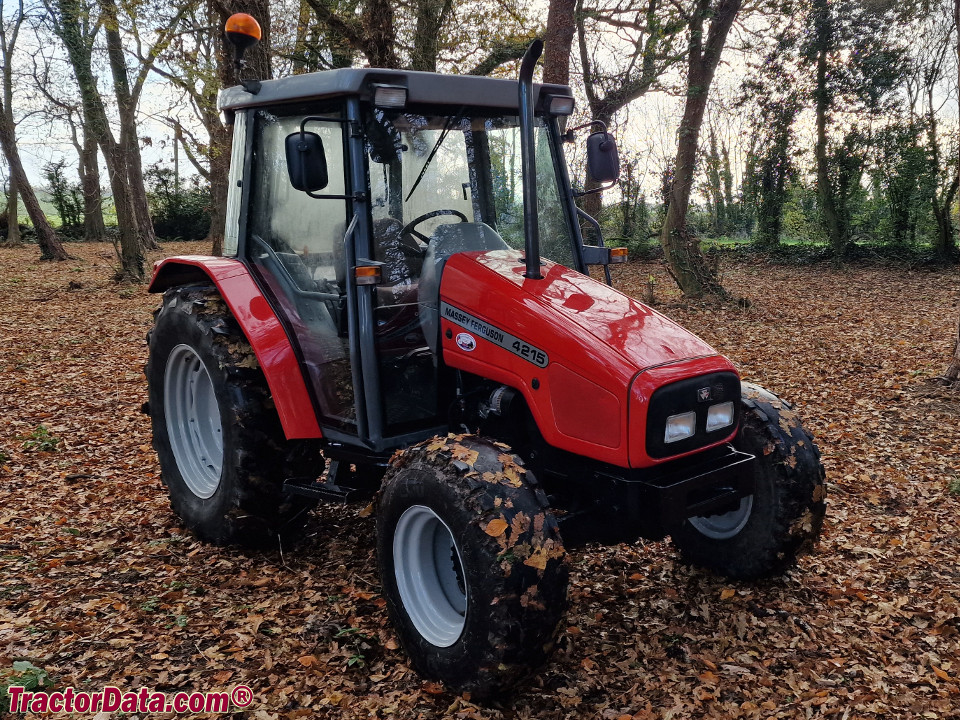

Massey Ferguson 4215
Massey Ferguson 4215 — Utility tractor · 45 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
45 hp
Weight
5258 to 5809 pounds
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Utility tractorReference
Two- or four-wheel driveReference
4WD Differential lockelectro-hydraulic front and rearReference
2WD Differential lockelectro-hydraulic rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Cab standard with heater.Reference
Engine
Perkins 2.7L 3-cyl dieselReference
Engine38.8 kWReference
Perkins 903Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke95 x 127 mmReference
Power38.8 kWReference
Fuel systemdirect injectionReference
Air cleanerdry elementReference
Rated RPM2250Reference
Torque190.0 NmReference
Torque RPM1200Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity10.2 LReference
Transmission
8-speed mechanical shuttleReference
12-speed synchromeshReference
Typemechanical shuttleReference
Gears8 forward and reverseReference
Clutch305mm dry discReference
Four gears (1-4) in two ranges (Low/High) with mechanical shuttle.Reference
TypesynchromeshReference
Gears12 forward and 4 reverseReference
Three gears (1-3) plus reverse (R) in two ranges (Low/High) with additional two-speed synchronized range shift.Reference
PTO & Hydraulics
PTO (claimed)33.4 kWReference
Hydraulic system50.0 LReference
Capacity50.0 LReference
Pressure210.0 barReference
Valves1 to 4Reference
Pump flow37.9 lpmReference
Total flow54.9 lpmReference
Rear TypeII/IReference
Controlposition control and mechanical draft controlReference
Rear PTOindependentReference
ClutchhydraulicReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1789Reference
Capacities
Fuel84.0 LReference
Dimensions
2WD Wheelbase213 cmReference
4WD Wheelbase223 cmReference
Weight5258 to 5809 poundsReference
Front tire7.50-16Reference
2WD Rear tire12.4R32Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 12.4R32Reference
4WD Standard tires (ag)Front: 8.3R24. Rear: 12.4R32Reference
Length373 cmReference
Width189 cmReference
Height (cab)239 cmReference
2WD Weight2385 kgReference
4WD Weight2634 kgReference
Ground clearance27 cmReference
2WD Front tread124 to 185 cmReference
4WD Front tread112 to 163 cmReference
Rear tread132 to 183 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Speeds
With 12.4R32 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
