Tractor · 1997Unverified

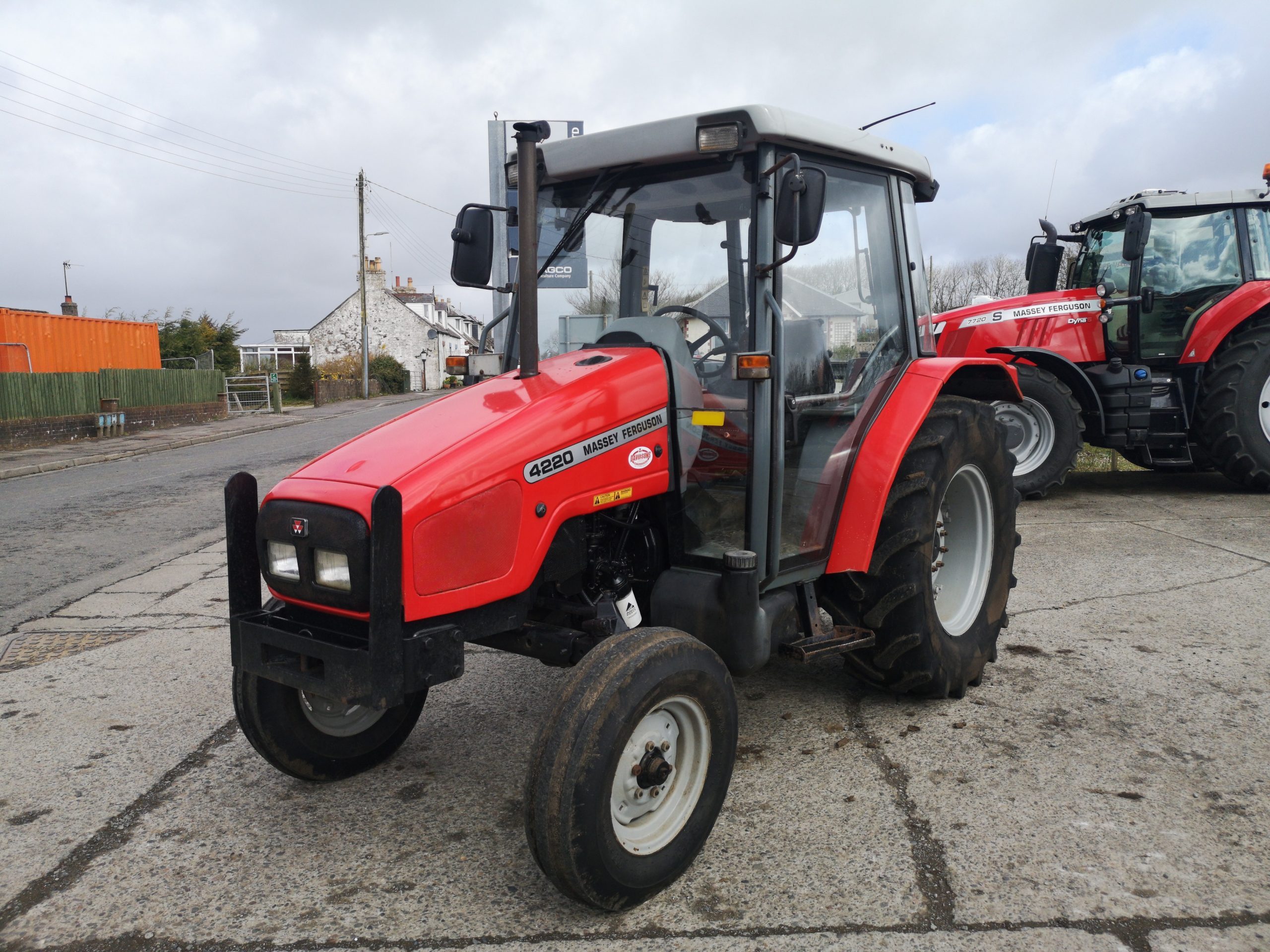

Massey Ferguson 4220

Name: Massey Ferguson 4220
Brand: Massey Ferguson

Massey Ferguson 4220 — Utility tractor · 52 hp. Reference specifications; pending source verification.

The Massey Ferguson 4220 is a compact tractor model, rated at 52 hp, produced from 1997 to 2001. It features a 3-cylinder turbocharged diesel liquid-cooled engine, coupled with a four-wheel drive system and an 8-speed gearbox. The listed weight of the tractor ranges from 5258 to 5809 pounds, making it suitable for tasks covering approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

52 hp

Weight

5258 to 5809 pounds

Catalogue coverage

Variants represented

Richest spec table

73 rows

Recorded power

52 hp

Recorded weight

2385 kg

Transmissions

8-speed mechanical shuttle

Production years

1997-2001

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey Ferguson (a part of AGCO)Reference

Utility tractorReference

Two- or four-wheel driveReference

4WD Differential lockelectro-hydraulic front and rearReference

2WD Differential lockelectro-hydraulic rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Trailer brakeshydraulicReference

Cab standard with heater.Reference

Engine

Perkins 2.7L 3-cyl dieselReference

Engine44.7 kWReference

Perkins 903TReference

turbocharged dieselReference

3-cylinderReference

liquid-cooledReference

Displacement2.7 LReference

Bore/Stroke95 x 127 mmReference

Power44.7 kWReference

Fuel systemdirect injectionReference

Air cleanerdry elementReference

Rated RPM2250Reference

Torque232.0 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Coolant capacity10.2 LReference

Transmission

8-speed mechanical shuttleReference

12-speed synchromeshReference

Typemechanical shuttleReference

Gears8 forward and reverseReference

Clutch305mm dry discReference

Four gears (1-4) in two ranges (Low/High) with mechanical shuttle.Reference

TypesynchromeshReference

Gears12 forward and 4 reverseReference

Three gears (1-3) plus reverse (R) in two ranges (Low/High) with additional two-speed synchronized range shift.Reference

PTO & Hydraulics

PTO (claimed)38.9 kWReference

Hydraulic system50.0 LReference

Capacity50.0 LReference

Pressure210.0 barReference

Valves1 to 4Reference

Pump flow37.9 lpmReference

Total flow54.9 lpmReference

Total flow60.0 lpmReference

Rear TypeII/IReference

Controlposition control and mechanical draft controlReference

Rear PTOindependentReference

ClutchhydraulicReference

Rear PTO Type540Reference

Rear PTO Type540/540EReference

Engine RPM540@1789Reference

Engine RPM540@1979Reference

Engine RPM540E@1421Reference

Capacities

Fuel84.0 LReference

Dimensions

2WD Wheelbase213 cmReference

4WD Wheelbase223 cmReference

Weight5258 to 5809 poundsReference

Front tire7.50-16Reference

2WD Rear tire12.4R32Reference

2WD Standard tires (ag)Front: 7.50-16. Rear: 12.4R32Reference

4WD Standard tires (ag)Front: 8.3R24. Rear: 12.4R32Reference

Length373 cmReference

Width189 cmReference

Height (cab)239 cmReference

2WD Weight2385 kgReference

4WD Weight2634 kgReference

Ground clearance27 cmReference

2WD Front tread124 to 185 cmReference

4WD Front tread112 to 163 cmReference

Rear tread132 to 183 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Speeds

With 12.4R32 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
