Tractor · 1997Unverified

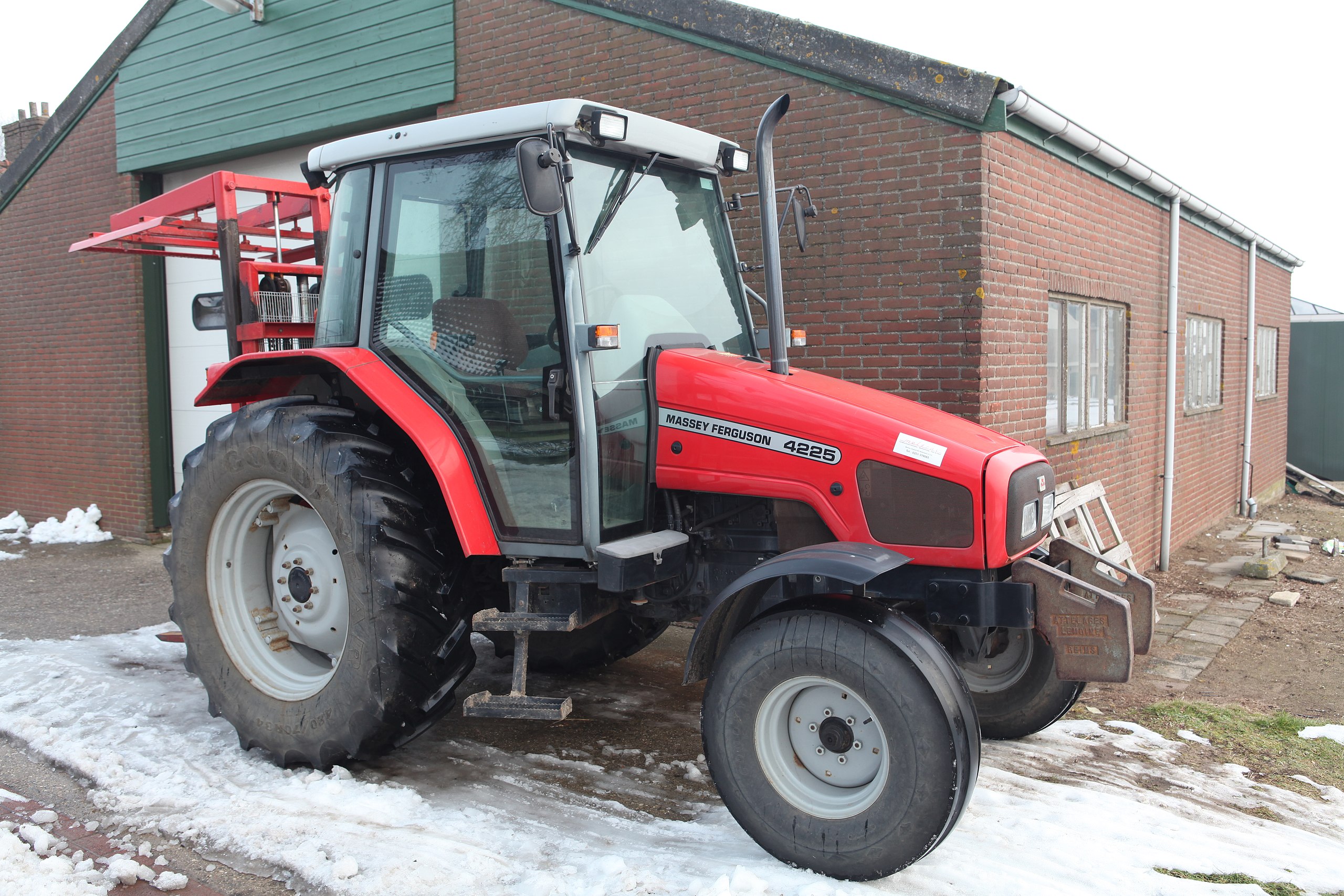

Massey Ferguson 4225
Massey Ferguson 4225 — Utility tractor · 65 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
65 hp
Max power
41.3 kW
Weight
6114 to 7630 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Utility tractorReference
Built in Coventry, EnglandReference
Original price was $26,800 in 1999Reference
Two- or four-wheel driveReference
Final drivesoutboard planetaryReference
Power steeringReference
Independent hydraulic wet disc brakesReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Variants
MT425similar Challenger modelReference
Engine
Perkins 4.0L 4-cyl dieselReference
Engine (net)48.5 kWReference
Drawbar (tested)31.7 kWReference
Perkins 1004.40Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.0 LReference
Bore/Stroke100 x 127 mmReference
Power (net)48.5 kWReference
Air cleanerdual paper elementsReference
Pre-heatingthermostartReference
Compression17.3:1Reference
Rated RPM2200Reference
Torque254.9 NmReference
Torque RPM1200Reference
Firing order1-3-4-2Reference
Starter volts12Reference
Oil capacity6.4 LReference
Coolant capacity17.4 LReference
Max power41.3 kWReference
Power at rated engine speed40.9 kWReference
Max power31.7 kWReference
Transmission
8-speed nonsynchronized gearReference
12-speed partially synchronizedReference
12-speed synchronized shuttleReference
12-speed power shuttleReference
Typenonsynchronized gearReference
Gears8 forward and 2 reverseReference
Standard transmission on the ROPS-equipped 4225.Reference
Typepartially synchronizedReference
Gears12 forward and 4 reverseReference
Three gears (1-3) plus reverse in two ranges (low/high) two a two-speed synchronized hi-lo shift for each gear. Standard transmission on the cab-equipped 4225.Reference
Typesynchronized shuttleReference
Gears12 forward and reverseReference
The synchronized shuttle was available in 8-speed (ROPS) or 12-speed (Cab) versions.Reference
Typepower shuttleReference
Optional 12-speed transmission with left-hand power shuttle lever.Reference
PTO & Hydraulics
PTO (claimed)41.0 kWReference
PTO (tested)41.3 kWReference
Hydraulic system50.0 LReference
Typeopen centerReference
Capacity50.0 LReference
Pressure210.0 barReference
Valves2 to 4Reference
Pump flow37.9 lpmReference
Pump flow53.0 lpmReference
Pump flow65.9 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift (at ends)1968 kgReference
Rear lift (at ends)2260 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1902Reference
Engine RPM1000@2000Reference
Power at rated PTO speed39.8 kWReference
Capacities
ROPS Fuel110.1 LReference
Cab Fuel98.4 LReference
Dimensions
Wheelbase236 cmReference
Weight6114 to 7630 poundsReference
Front tire7.50-16Reference
Rear tire14.9-24Reference
Ag front7.50-16Reference
Ag rear14.9-24Reference
2WD Length391 cmReference
4WD Length393 cmReference
Width195 cmReference
Front axle2WDReference
Front axle2WD LoProfileReference
Front axle4WDReference
Flange rear axleReference
2WD Front tread132 to 193 cmReference
4WD Front tread139 to 190 cmReference
Rear tread152 to 213 cmReference
2773 kgReference
3145 kgReference
3023 kgReference
3396 kgReference
Operating3460 kgReference
Max rear axle4536 kgReference
Steering wheel182 cmReference
Steering wheel165 cmReference
Massey Ferguson 4225 attachments
front-end loaderReference
4225 Serial Numbers
1997F01001Reference
1998G01001Reference
1999H01001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps45Reference
Cab Charging amps70Reference
Batteries2Reference
Battery CCA590Reference
Battery volts12Reference
Attachment overview
Massey Ferguson 1032 loaderReference
Massey Ferguson 1036 loaderReference
Massey Ferguson 4225 Height
ROPS259 cmReference
Height (Folded ROPS)200 cmReference
Cab246 cmReference
Test results
Diesel 12-speed shuttle 4WDMarch 1 - May 1, 1998Link: OCED Tractor Test 1779 fileReference
PTO performanceReference
Fuel use14.0 l/hourReference
Fuel use14.4 l/hourReference
Fuel use12.9 l/hourReference
Drawbar performanceReference
Fuel use13.6 l/hourReference
Gear 1M used for power test.Reference
Max pull3483 kgReference
Gear 1L used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
