Tractor · 1998Unverified
Massey Ferguson 4233
Massey Ferguson 4233 — Utility tractor · 75 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
75 hp
Max power
44.9 kW
Weight
6753 to 8170 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Utility tractorReference
Built in Coventry, EnglandReference
Original price was $28,000 in 1999Reference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Independent hydraulic wet disc brakesReference
Two-post foldable ROPS. Cab optional with air-conditioning.Reference
Engine
Perkins 4.2L 4-cyl dieselReference
Engine (net)55.9 kWReference
Drawbar (tested)44.9 kWReference
Perkins 1004.42Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke103 x 127 mmReference
Power (net)55.9 kWReference
Air cleanerdual paper elementsReference
Pre-heatingthermostartReference
Compression17.3:1Reference
Rated RPM2200Reference
Torque280.7 NmReference
Torque RPM1300Reference
Starter volts12Reference
Coolant capacity17.4 LReference
Power at rated engine speed51.1 kWReference
Max power44.9 kWReference
Transmission
8-speed nonsynchronized gearReference
12-speed partially synchronizedReference
8-speed synchronized shuttleReference
12-speed synchronized shuttleReference
Typenonsynchronized gearReference
Gears8 forward and 2 reverseReference
Clutchdry discReference
Standard transmission on the ROPS-equipped 4233.Reference
Typepartially synchronizedReference
Gears12 forward and 4 reverseReference
Three gears (1-3) plus reverse in two ranges (low/high) two a two-speed synchronized hi-lo shift for each gear. Standard transmission on the cab-equipped 4233.Reference
Typesynchronized shuttleReference
Gears8 forward and reverseReference
Gears12 forward and reverseReference
PTO & Hydraulics
PTO (claimed)48.5 kWReference
PTO (tested)51.1 kWReference
Hydraulic system50.0 LReference
Typeopen centerReference
Capacity50.0 LReference
Pressure210.0 barReference
Valves2 to 4Reference
Pump flow37.9 lpmReference
Pump flow53.0 lpmReference
Pump flow65.9 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift (at ends)1968 kgReference
Rear lift (at ends)2260 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference
Power at rated PTO speed48.3 kWReference
Capacities
Fuel127.2 LReference
Fuel129.8 LReference
Fuel110.1 LReference
Fuel62.1 LReference
Fuel70.0 LReference
Dimensions
Wheelbase236 cmReference
Weight6753 to 8170 poundsReference
Front tire7.5L-15Reference
Rear tire16.9-30Reference
Ag front7.5L-15Reference
Ag rear16.9-30Reference
Length480 cmReference
Length406 cmReference
Width195 cmReference
Ground clearance30 cmReference
Front axle2WDReference
Front axle2WD LoProfileReference
Front axle4WDReference
Front tread132 to 193 cmReference
Front tread139 to 190 cmReference
Rear tread152 to 213 cmReference
3063 kgReference
3455 kgReference
3333 kgReference
3705 kgReference
Operating3145 kgReference
Steering wheel182 cmReference
Steering wheel170 cmReference

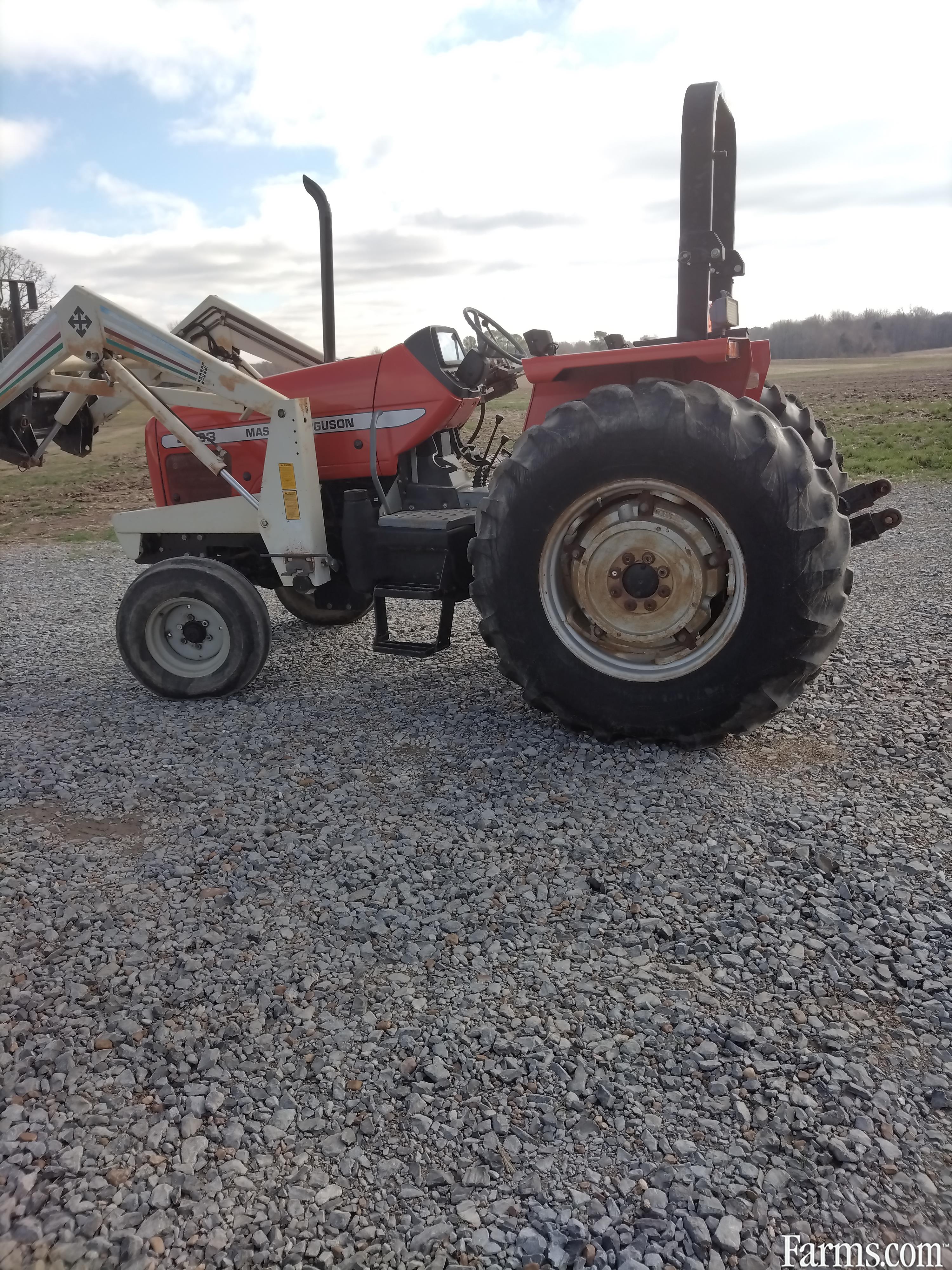

Massey Ferguson 4233 attachments
front-end loaderReference
4233 Serial Numbers
1997F01001Reference
1998G01001Reference
1999H01001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps45 (ROPS)Reference
Charging amps70 (Cab)Reference
Batteries2Reference
Battery CCA590Reference
Battery volts12Reference
Massey Ferguson 4233 Height
ROPS259 cmReference
ROPS200 cmReference
Cab256 cmReference
Test results
Diesel 12-speed 4WDOctober 1 - December 1, 2000Link: OCED Tractor Test 1950 fileReference
PTO performanceReference
Fuel use16.3 l/hourReference
Fuel use14.4 l/hourReference
Drawbar performanceReference
Gear 3M used for power test.Reference
Max pull3161 kgReference
Gear 2L used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
