Tractor · 1997Unverified

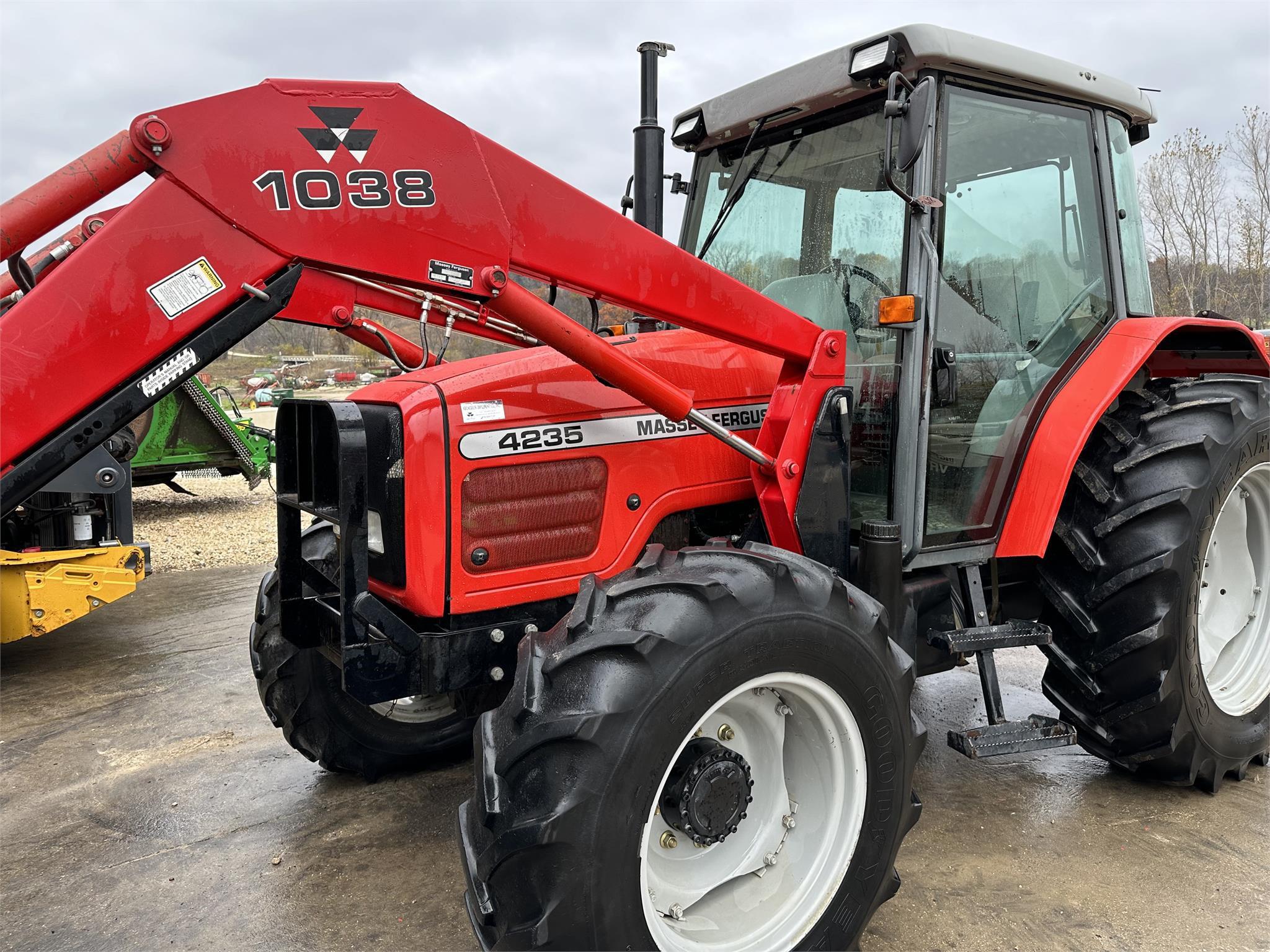

Massey Ferguson 4235
Massey Ferguson 4235 — Utility tractor · 75 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
75 hp
Max power
48.8 kW
Weight
6753 to 8185 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Utility tractorReference
Built in Coventry, EnglandReference
Original price was $34,000 in 1999Reference
Two- or four-wheel driveReference
Final drivesoutboard planetaryReference
Power steeringReference
Independent hydraulic wet disc brakesReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Engine
Perkins 4.2L 4-cyl dieselReference
Engine (net)55.9 kWReference
Drawbar (tested)38.5 kWReference
Perkins 1004.42Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke103 x 127 mmReference
Power (net)55.9 kWReference
Air cleanerdual paper elementsReference
Pre-heatingthermostartReference
Compression17.3:1Reference
Rated RPM2200Reference
Torque280.7 NmReference
Torque RPM1300Reference
Starter volts12Reference
Coolant capacity17.4 LReference
Max power48.8 kWReference
Power at rated engine speed46.3 kWReference
Max power38.5 kWReference
Transmission
12-speed power shuttleReference
18-speed two-speed power shiftReference
Typepower shuttleReference
Gears12 forward and reverseReference
TransmissionSpeedshiftReference
Typetwo-speed power shiftReference
Gears18 forward and 6 reverseReference
Three gears (1-3) in three ranges (low, medium, high plus reverse) with a two-speed (low/high) push button power shift.Reference
PTO & Hydraulics
PTO (claimed)48.5 kWReference
PTO (tested)48.8 kWReference
Hydraulic system50.0 LReference
Typeopen centerReference
Capacity50.0 LReference
Pressure210.0 barReference
Valves2 to 4Reference
Pump flow65.9 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift (at ends)1968 kgReference
Rear lift (at ends)2385 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1902Reference
Engine RPM1000@2000Reference
Power at rated PTO speed48.6 kWReference
Capacities
Cab Fuel127.2 LReference
ROPS Fuel129.8 LReference
ROPS Fuel110.1 LReference
ROPS Fuel62.1 LReference
ROPS Fuel70.0 LReference
Dimensions
Wheelbase236 cmReference
Weight6753 to 8185 poundsReference
Front tire7.5L-15Reference
Rear tire16.9-30Reference
Ag front7.5L-15Reference
Ag rear16.9-30Reference
2WD Length403 cmReference
4WD Length406 cmReference
Width195 cmReference
Ground clearance30 cmReference
Front axle2WDReference
Front axle4WDReference
Flange rear axleReference
2WD Front tread132 to 193 cmReference
4WD Front tread139 to 190 cmReference
Rear tread152 to 213 cmReference
3063 kgReference
3455 kgReference
3333 kgReference
3705 kgReference
Operating3712 kgReference
Max rear axle4536 kgReference
Steering wheel182 cmReference
Massey Ferguson 4235 attachments
front-end loaderReference
4235 Serial Numbers
1997F01001Reference
1998G01001Reference
1999H01001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps45Reference
Cab Charging amps70Reference
Batteries2Reference
Battery CCA590Reference
Battery volts12Reference
Massey Ferguson 4235 Height
ROPS259 cmReference
Height (Folded ROPS)200 cmReference
Cab256 cmReference
Test results
Diesel 18-speed 4WDMay 1 - September 1, 1998Link: OCED Tractor Test 1799 fileReference
PTO performanceReference
Fuel use15.5 l/hourReference
Fuel use16.3 l/hourReference
Fuel use15.1 l/hourReference
Drawbar performanceReference
Max pull3876 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
