Tractor · 2011Unverified

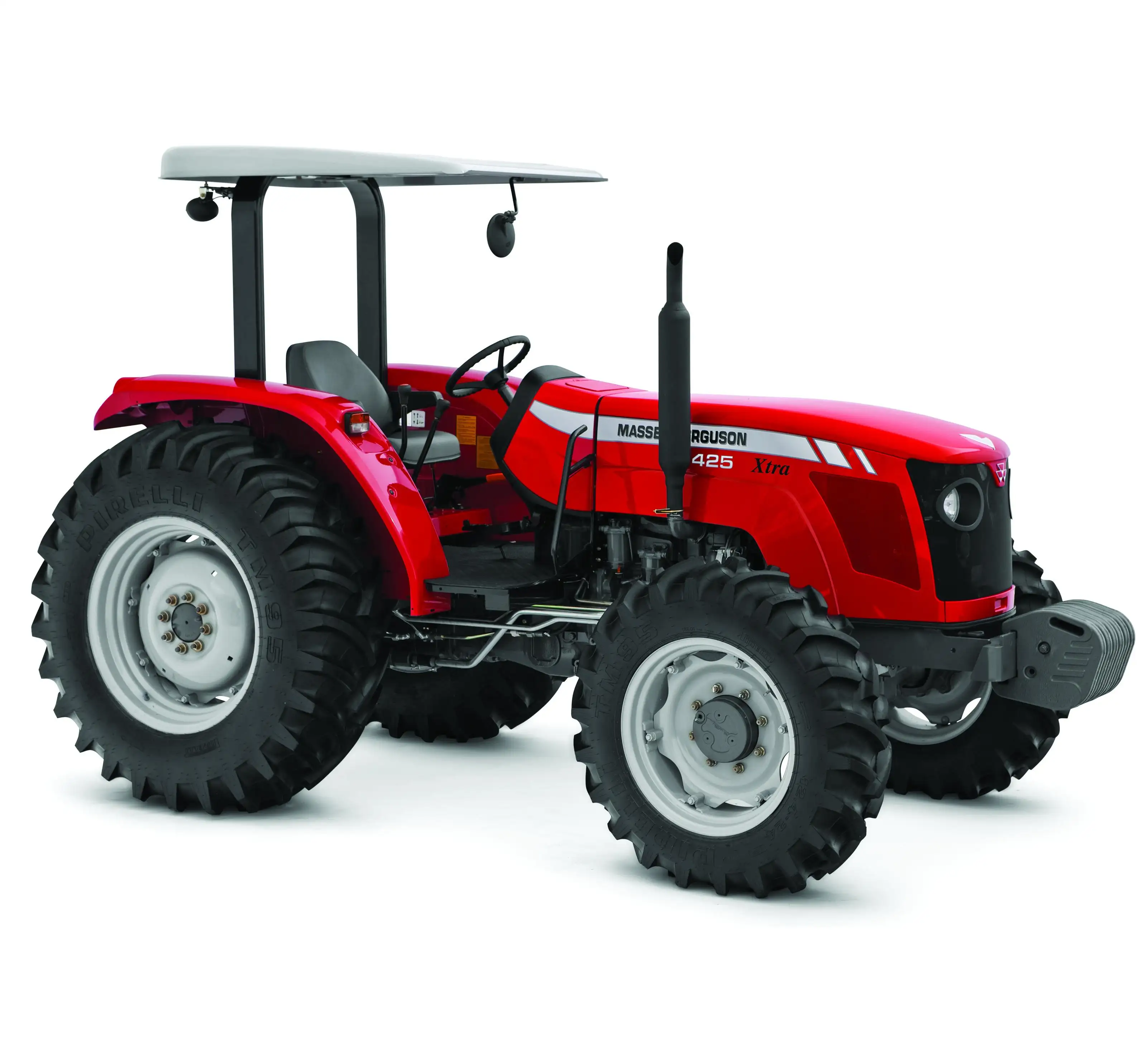

Massey Ferguson 425 Xtra

Name: Massey Ferguson 425 Xtra
Brand: Massey Ferguson

Massey Ferguson 425 Xtra — 400 Xtra Series · 65 hp. Reference specifications; pending source verification.

The Massey Ferguson 425 Xtra is a tractor model with a rated output of 65 hp, placing it in the middle of its class for power. It was manufactured in 2011. The tractor is equipped with a 4-cylinder diesel liquid-cooled engine, which powers the mechanical front-wheel drive via a hydrostatic transmission. Its listed weight is 2869 kg and is suited for tasks on around 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

65 hp

Max power

65 hp

Weight

2869 kg

Catalogue coverage

Variants represented

Richest spec table

78 rows

Recorded power

65 hp

Recorded weight

2869 kg

Transmissions

8-speed sliding spur gear

Production years

2011-2011

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Utility tractorReference

Built in Canoas, BrazilReference

Drive4x2 2WDReference

Drive4x4 MFWD 4WD (optional)Reference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Two-post ROPS.Reference

Engine

Perkins 3.9L 4-cyl dieselReference

Engine48.5 kWReference

Perkins A4-3.9Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.9 LReference

Bore/Stroke98 x 127 mmReference

Power48.5 kWReference

Fuel systemdirect injectionReference

Rated RPM2200Reference

Torque235.0 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Oil capacity7.0 LReference

Fuel TypedieselReference

No of Cylinders4 cylindersReference

Rated engine speed2,200 RPMReference

Engine torque at rated speed78.6 kgReference

Bore and stroke3.875x5.00 inchesReference

Cooling systemliquid-cooledReference

Transmission

8-speed sliding spur gearReference

12-speed synchromeshReference

Typesliding spur gearReference

Gears8 forward and 2 reverseReference

Oil capacity42.0 LReference

TypesynchromeshReference

Gears12 forward and 4 reverseReference

Transmission TypeGearReference

forward and reverse optionsSliding Spur Gear : 8 F and 2 R | Synchromesh : 12 F and 4 RReference

Wheel Drive4WDReference

Capacities

Fuel99.9 LReference

Fuel tank99.9 LReference

Crankcase oil volume7.4 qtsReference

PTO & Hydraulics

Hydraulic system42.0 LReference

Capacity42.0 LReference

Pressure170.0 barReference

Valves1Reference

Pump flow42.0 lpmReference

Rear lift2500 kgReference

Rear PTOliveReference

Rear PTOindependent (optional)Reference

Rear PTO Type540Reference

Dimensions

Wheelbase236 cmReference

Weight2869 kgReference

Front tire7.50-16Reference

Rear tire18.4-30 (2WD)Reference

Standard tires (ag)Front: 7.50-16. Rear: 18.4-30 (2WD)Reference

Standard tires (ag)Front: 12.4-24. Rear: 18.4-30 (4WD)Reference

Length413 cmReference

Height (exhaust)258 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

General

Make & ModelMassey FergusonReference

Rollover protective structureTwo-post ROPS.Reference

Country of manufacturerBrazilReference

Power

Max Power65 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Steering & brakes

BrakesHydraulic Wet DiscReference

Steering typeHydrostatic PowerReference

Hydraulics

Maximum operating pressure2,466 psiReference

Remote Valves1 ValvesReference

Rear Hitch maximum lift capacity2,500.2 kgReference

Dimensions & weight

Overall Height258.1 cmReference

Overall Length413 cmReference

Overall weight2,869.9 kgReference

Wheels & tyres

Rear Wheel Type18.4-30. | 18.4-30.Reference

Front Wheel Type7.50-16. | 12.4-24.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
