Tractor · 1997Unverified

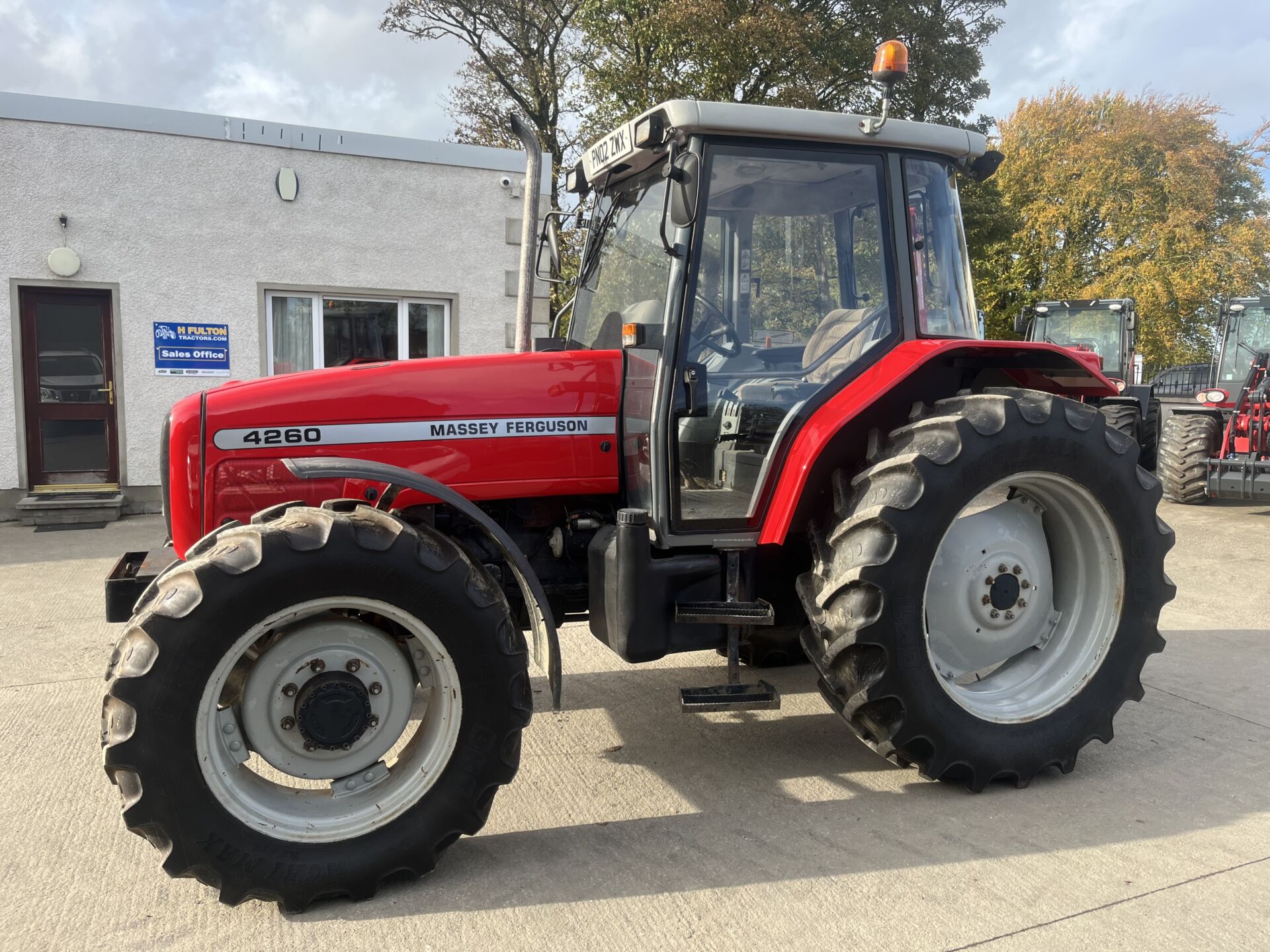

Massey Ferguson 4260
Massey Ferguson 4260 — Utility tractor · 94 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
94 hp
Max power
70.8 kW
Weight
8534 to 9050 pounds
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Utility tractorReference
Two- or four-wheel driveReference
4WD Differential lockelectro-hydraulic front and rearReference
2WD Differential lockelectro-hydraulic rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Cab standard with heater. Optional air-conditioning. Available Versa cab with reversible seating position.Reference
Engine
Perkins 6.0L 6-cyl dieselReference
Engine74.6 kWReference
Drawbar (tested)58.4 kWReference
Perkins 1006Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.0 LReference
Bore/Stroke100 x 127 mmReference
Power74.6 kWReference
Fuel systemdirect injectionReference
Air cleanerdry elementReference
Rated RPM2200Reference
Torque388.1 NmReference
Torque RPM1200Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity28.0 LReference
Max power70.8 kWReference
Power at rated engine speed70.4 kWReference
Max power58.4 kWReference
Transmission
12-speed mechanical shuttleReference
18-speed two-speed power shiftReference
12-speed power shuttleReference
24-speed power shuttleReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Clutch330 cerametallic discReference
Four gears (1-4) in three ranges (L/M/H) with mechanical shuttle.Reference
TransmissionSpeedshiftReference
Typetwo-speed power shiftReference
Gears18 forward and 6 reverseReference
Three gears (1-3) plus reverse (R) in three ranges (L/M/H) with push-button Speedshift power shift.Reference
Typepower shuttleReference
Clutchelectro-hydraulic wet discReference
Four gears (1-4) in three ranges (L/M/H) with power shuttle.Reference
Gears24 forward and reverseReference
Four gears (1-4) in three ranges (L/M/H) with power shuttle and push-button two-speed power shift.Reference
PTO & Hydraulics
PTO (claimed)69.7 kWReference
PTO (tested)70.8 kWReference
Hydraulic system50.0 LReference
Capacity50.0 LReference
Pressure210.0 barReference
Valves2 to 4Reference
Pump flow37.9 lpmReference
Total flow65.9 lpmReference
Rear TypeIIReference
Controlposition control and mechanical draft control, electronic draft control optionalReference
Rear PTOindependentReference
ClutchhydraulicReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1902Reference
Engine RPM1000@2000Reference
Power at rated PTO speed69.1 kWReference
Capacities
Fuel143.1 LReference
Dimensions
Wheelbase261 cmReference
Weight8534 to 9050 poundsReference
Front tire10.00-16Reference
2WD Rear tire16.9R38Reference
2WD Standard tires (ag)Front: 10.00-16. Rear: 16.9R38Reference
4WD Standard tires (ag)Front: 13.6R28. Rear: 16.9R38Reference
Length432 cmReference
Width205 cmReference
Height (cab)270 cmReference
2WD Weight3871 kgReference
4WD Weight4105 kgReference
Ground clearance44 cmReference
2WD Front tread145 to 216 cmReference
4WD Front tread156 to 204 cmReference
Rear tread152 to 224 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Test results
Diesel 12-speed 4WDAugust 1 - September 1, 1997Link: OCED Tractor Test 1731 fileReference
PTO performanceReference
Fuel use22.0 l/hourReference
Fuel use20.4 l/hourReference
Drawbar performanceReference
Gear 2M used for power test.Reference
Max pull4272 kgReference
Gear 2L used for pull test.Reference
Speeds
With 16.9R34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
