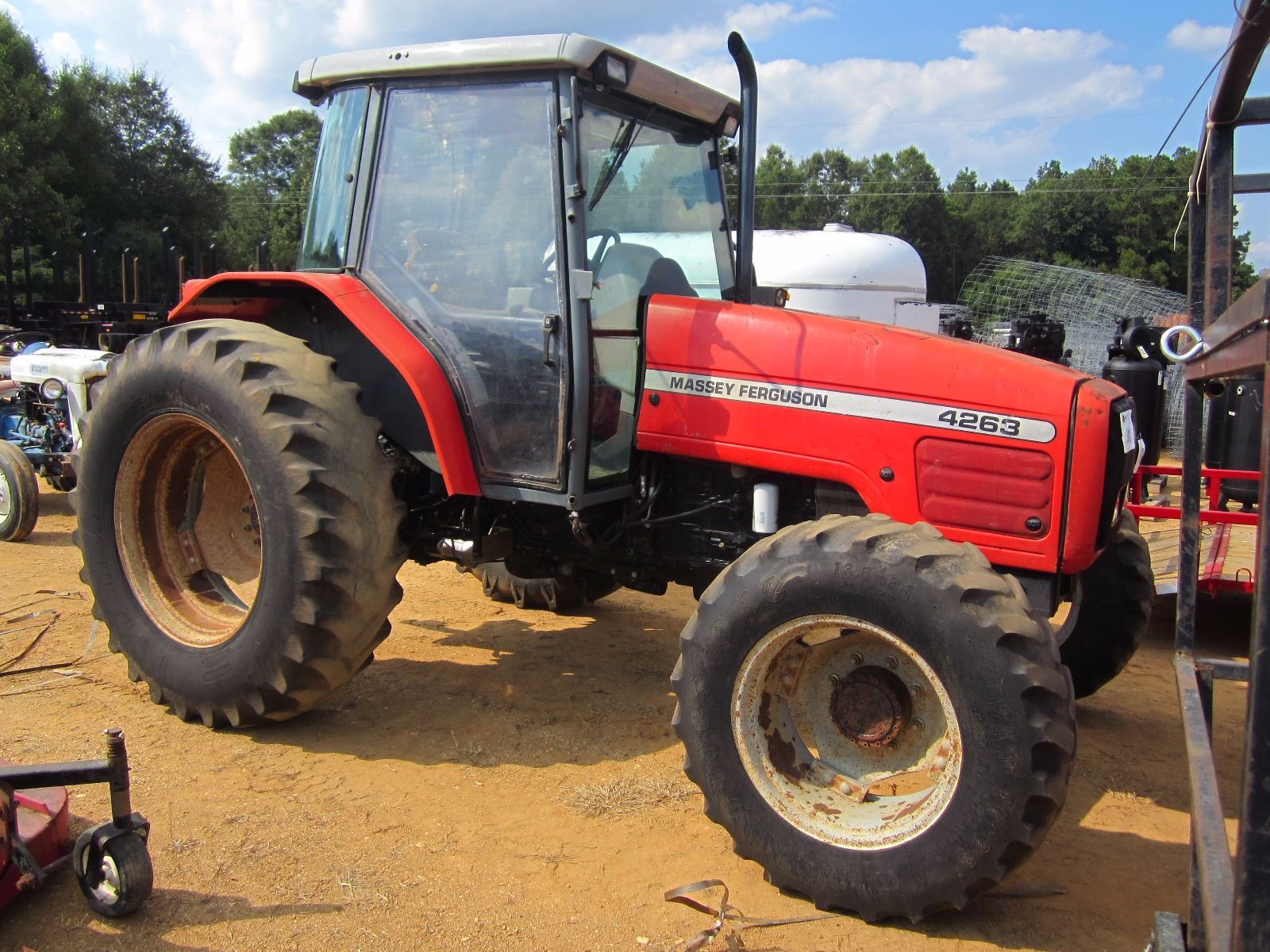

Massey Ferguson 4263

Name: Massey Ferguson 4263
Brand: Massey Ferguson

Massey Ferguson 4263 — Utility tractor · 100 hp. Reference specifications; pending source verification.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

100 hp

Max power

70.8 kW

Weight

7624 to 9080 pounds

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Utility tractorReference

Built in Coventry, EnglandReference

Original price was $35,600 in 1999Reference

Two- or four-wheel driveReference

Final drivesoutboard planetaryReference

Power steeringReference

Independent hydraulic wet disc brakesReference

Two-post folding ROPS. Cab optional with air-conditioning.Reference

Engine

Perkins 6.0L 6-cyl dieselReference

Engine (net)74.6 kWReference

Drawbar (tested)58.4 kWReference

Perkins 1006.60Reference

dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.0 LReference

Bore/Stroke100 x 127 mmReference

Power (net)74.6 kWReference

Air cleanerdual paper elementsReference

Compression17.3:1Reference

Rated RPM2200Reference

Torque387.8 NmReference

Torque RPM1200Reference

Starter volts12Reference

Oil capacity13.5 LReference

Coolant capacity17.4 LReference

Max power70.8 kWReference

Power at rated engine speed70.4 kWReference

Max power58.4 kWReference

Transmission

8-speed nonsynchronized gearReference

12-speed partially synchronizedReference

12-speed synchronized shuttleReference

Typenonsynchronized gearReference

Gears8 forward and 2 reverseReference

Clutchdry discReference

Standard transmission on the ROPS-equipped 4233.Reference

Typepartially synchronizedReference

Gears12 forward and 4 reverseReference

Three gears (1-3) plus reverse in two ranges (low/high) two a two-speed synchronized hi-lo shift for each gear. Standard transmission on the cab-equipped 4233.Reference

Typesynchronized shuttleReference

Gears12 forward and reverseReference

PTO & Hydraulics

PTO (claimed)67.1 kWReference

PTO (tested)70.8 kWReference

Hydraulic system50.0 LReference

Typeopen centerReference

Capacity50.0 LReference

Pressure210.0 barReference

Valves2 to 4Reference

Pump flow40.5 lpmReference

Pump flow67.8 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift (at ends)2385 kgReference

Rear lift (at ends)2885 kgReference

Rear PTOindependentReference

Clutchhydraulic wet discReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@1902Reference

Engine RPM1000@2000Reference

Power at rated PTO speed69.1 kWReference

Capacities

Cab Fuel143.8 LReference

ROPS Fuel129.8 LReference

ROPS Fuel62.1 LReference

ROPS Fuel70.0 LReference

Dimensions

Wheelbase261 cmReference

Weight7624 to 9080 poundsReference

Front tire9.5L-15Reference

Rear tire18.4-30Reference

Ag front9.5L-15Reference

Ag rear18.4-30Reference

2WD Length429 cmReference

4WD Length431 cmReference

Width200 cmReference

Ground clearance35 cmReference

Front axle2WDReference

Front axle2WD LoProfileReference

Front axle2WD Wide Row-CropReference

Front axle4WDReference

Flange rear axleReference

2WD Front tread137 to 198 cmReference

4WD Front tread139 to 190 cmReference

Rear tread152 to 213 cmReference

3458 kgReference

3830 kgReference

3708 kgReference

4080 kgReference

Operating4118 kgReference

Max rear axle4536 kgReference

Steering wheel190 cmReference

Steering wheel175 cmReference

4263 Serial Numbers

1997F01001Reference

1998G01001Reference

1999H01001Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

ROPS Charging amps45Reference

Cab Charging amps70Reference

Batteries2Reference

Battery CCA590Reference

Battery volts12Reference
