Tractor · 1997Unverified

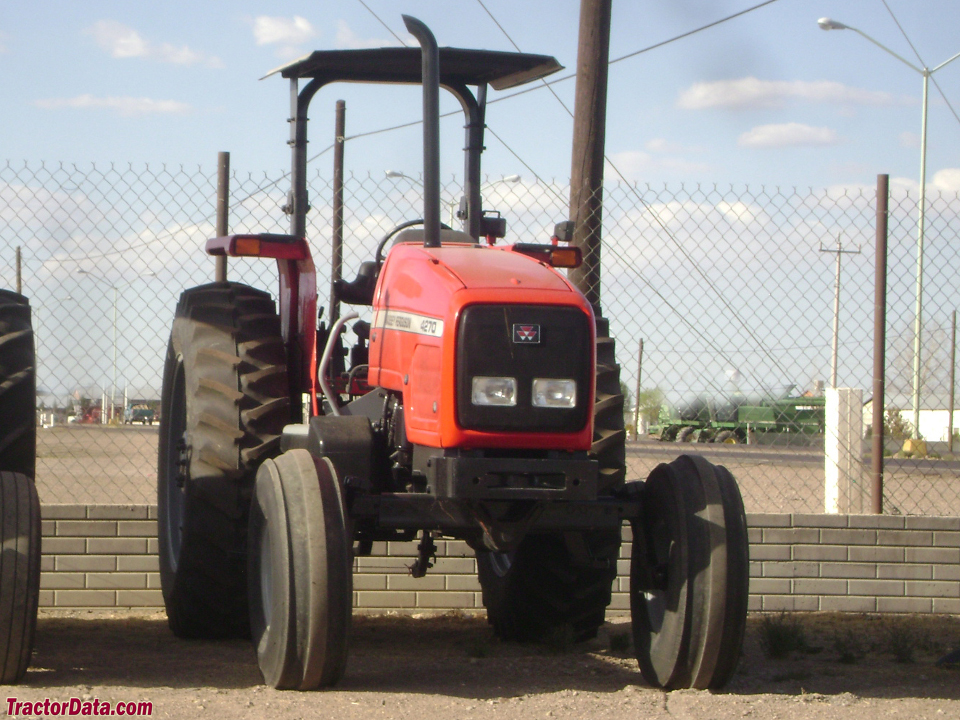

Massey Ferguson 4270

Name: Massey Ferguson 4270
Brand: Massey Ferguson

Massey Ferguson 4270 — Utility tractor · 110 hp. Reference specifications; pending source verification.

The Massey Ferguson 4270 is a tractor rated at approximately 110 horsepower, a mid-range figure for its class. It was produced between 1997 and 2001. The model features a 6-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a powershift transmission. Its operating weight ranges from 7712 to 9105 pounds, suitable for operations spanning 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

110 hp

Max power

75.7 kW

Weight

7712 to 9105 pounds

Catalogue coverage

Variants represented

Richest spec table

139 rows

Recorded power

110 hp

Transmissions

12-speed power shuttle

Production years

1997-2001

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Utility tractorReference

Built in Coventry, EnglandReference

Original price was $42,700 in 1999Reference

Two- or four-wheel driveReference

Final drivesoutboard planetaryReference

Power steeringReference

Independent hydraulic wet disc brakesReference

Two-post folding ROPS. Cab optional with air-conditioning.Reference

Engine

Perkins 6.0L 6-cyl dieselReference

Engine (net)82.0 kWReference

Drawbar (tested)58.9 kWReference

Perkins 1006.60TReference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.0 LReference

Bore/Stroke100 x 127 mmReference

Power (net)82.0 kWReference

Air cleanerdual paper elementsReference

Compression17.3:1Reference

Rated RPM2200Reference

Torque452.9 NmReference

Torque RPM1200Reference

Starter volts12Reference

Oil capacity13.5 LReference

Coolant capacity17.4 LReference

Max power75.7 kWReference

Power at rated engine speed74.8 kWReference

Max power58.9 kWReference

Fuel TypeDieselReference

No of Cylinders6-cylinderReference

Rated engine speed2,200Reference

Engine torque at rated speed151.5 kgReference

Bore and stroke3.937x5.00 inchesReference

Compression ratio17.3:1Reference

Cooling systemliquid-cooledReference

Transmission

12-speed power shuttleReference

24-speed power shuttle with power shiftReference

18-speed two-speed power shiftReference

12-speed partially synchronizedReference

Typepower shuttleReference

Gears12 forward and reverseReference

Four gears (1-4) in three ranges (low/medium/high) with left-hand power shuttle.Reference

Typepower shuttle with power shiftReference

Gears24 forward and reverseReference

Four gears (1-4) in three ranges (low/medium/high) with left-hand power shuttle. Two-speed power shift (low/high) for each gear.Reference

TransmissionSpeedshiftReference

Typetwo-speed power shiftReference

Gears18 forward and 6 reverseReference

Three gears (1-3) in three ranges (low, medium, high plus reverse) with a two-speed (low/high) push button power shift.Reference

Typepartially synchronizedReference

Gears12 forward and 4 reverseReference

Transmission TypePower ShuttleReference

Rear Axle Drive Typeoutboard planetaryReference

PTO & Hydraulics

PTO (claimed)73.8 kWReference

PTO (tested)75.7 kWReference

Hydraulic system50.0 LReference

Typeopen centerReference

Capacity50.0 LReference

Pressure210.0 barReference

Valves2 to 4Reference

Pump flow65.9 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Cab Rear lift (at ends)3609 kgReference

ROPS Rear lift (at ends)2885 kgReference

Rear PTOindependentReference

Clutchhydraulic wet discReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@1902Reference

Engine RPM1000@2000Reference

Power at rated PTO speed75.2 kWReference

Capacities

ROPS Fuel199.8 LReference

Cab Fuel204.4 LReference

Dimensions

Wheelbase261 cmReference

Weight7712 to 9105 poundsReference

Front tire10.00-16Reference

Rear tire18.4-30Reference

Ag front10.00-16Reference

Ag rear18.4-30Reference

2WD Length429 cmReference

4WD Length434 cmReference

Width200 cmReference

Ground clearance40 cmReference

Front axle2WDReference

Front axle2WD LoProfileReference

Front axle2WD Wide Row-CropReference

Front axle4WDReference

Flange rear axleReference

2WD Front tread137 to 198 cmReference

4WD Front tread154 to 205 cmReference

Rear tread152 to 223 cmReference

3498 kgReference

3871 kgReference

3748 kgReference

4120 kgReference

Operating4130 kgReference

Max rear axle5443 kgReference

Steering wheel190 cmReference

Steering wheel175 cmReference

Massey Ferguson 4270 attachments

front-end loaderReference

4270 Serial Numbers

1997F01001Reference

1998G01001Reference

1999H01001Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

ROPS Charging amps45Reference

Cab Charging amps70Reference

Batteries2Reference

Battery CCA590Reference

Battery volts12Reference

Battery options2Reference

Total cold cranking amps590Reference

Massey Ferguson 4270 Height

ROPS266 cmReference

Height (Folded ROPS)208 cmReference

Cab269 cmReference

Test results

Diesel 12-speed 4WDJune 1 - July 1, 1997Link: OCED Tractor Test 1715 fileReference

PTO performanceReference

Fuel use22.7 l/hourReference

Fuel use23.5 l/hourReference

Fuel use22.0 l/hourReference

Drawbar performanceReference

Gear 6 used for power test.Reference

Max pull4232 kgReference

Gear 2L used for pull test.Reference

General

Make & ModelMassey FergusonReference

Front Axle Type2WD, 2WD LoProfile, 2WD Wide Row-Crop, 4WDReference

Power

Rated Power110 hpReference

PTO

Rear PTO PowerAvailableReference

Hydraulics

Hydraulics Typeopen centerReference

Maximum operating pressure3,046 psiReference

Remote Valves2 to 4Reference

Rear Hitch category (SAE designation)Category IIReference

Rear Hitch Sensing Typeposition and draft controlReference

Dimensions & weight

Overall Width200.7 cmReference

Wheels & tyres

Rear wheel tread range18.4-30 inchReference

Front Wheel tread range10.00-16Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
