Tractor · 2010Unverified

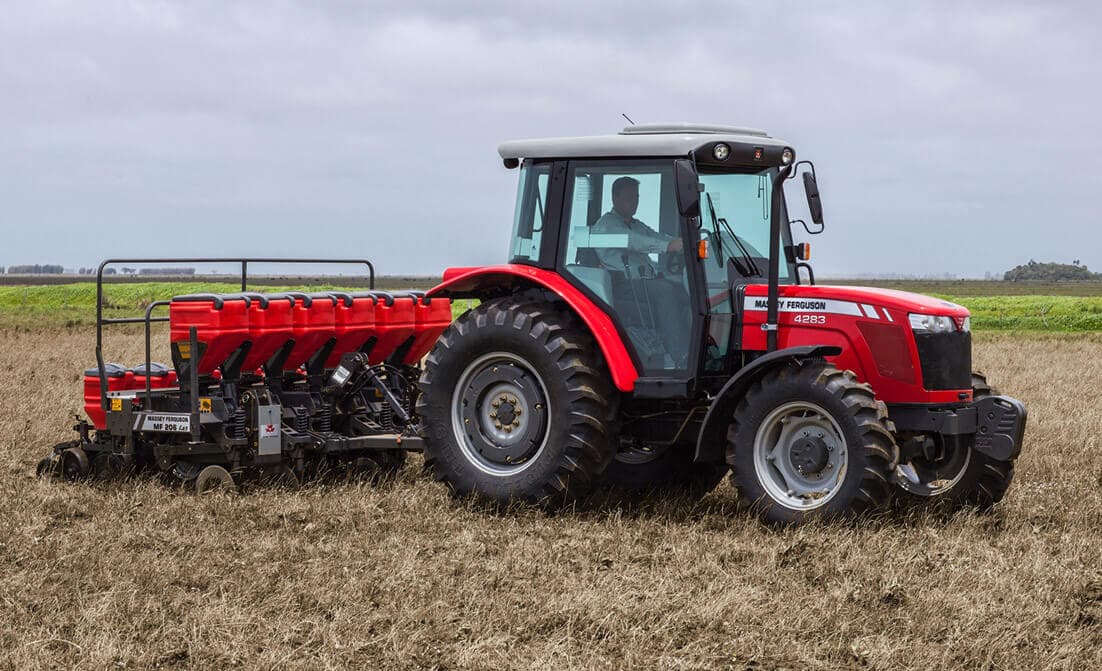

Massey Ferguson 4283
Massey Ferguson 4283 — Row-Crop tractor · 72 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
72 hp
Weight
8708 to 10646 pounds
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Row-Crop tractorReference
Built in Canoas, BrazilReference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post fixed ROPS. Cab optional.Reference
Engine
MWM 4.1L 4-cyl dieselReference
Engine63.4 kWReference
MWM A4-4.1Reference
dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement4.1 LReference
Bore/Stroke101 x 127 mmReference
Power63.4 kWReference
Rated RPM2200Reference
Torque288.8 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Oil capacity8.0 LReference
Transmission
8-speed gearReference
8-speed shuttleReference
12-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutchdry discReference
TypeshuttleReference
Gears8 forward and reverseReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)53.7 kWReference
Hydraulic system42.0 LReference
Capacity42.0 LReference
Pressure170.0 barReference
Valves2 or 3Reference
Pump flow60.2 lpmReference
Pump flow68.9 lpmReference
Rear TypeIIReference
Rear PTOindependentReference
Clutchdry discReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1900Reference
Engine RPM1000@1900Reference
Capacities
Fuel95.0 LReference
Dimensions
Wheelbase228 cmReference
Weight8708 to 10646 poundsReference
Front tire9.00-16Reference
Rear tire18.4-34Reference
Standard tires (ag)Front: 9.00-16. Rear: 18.4-34Reference
2WD Length397 cmReference
4WD Length417 cmReference
Height260 cmReference
2WD Weight3949 kgReference
4WD Weight4829 kgReference
Ground clearance38 cmReference
Rear tread144 to 216 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps55Reference
Cab Charging amps120Reference
Battery volts12Reference
Speeds
With 18.4-30 rear tires.Reference
With 18.4-30 rear tires. Reverse speeds are 15% faster than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
