Tractor · 2010Unverified

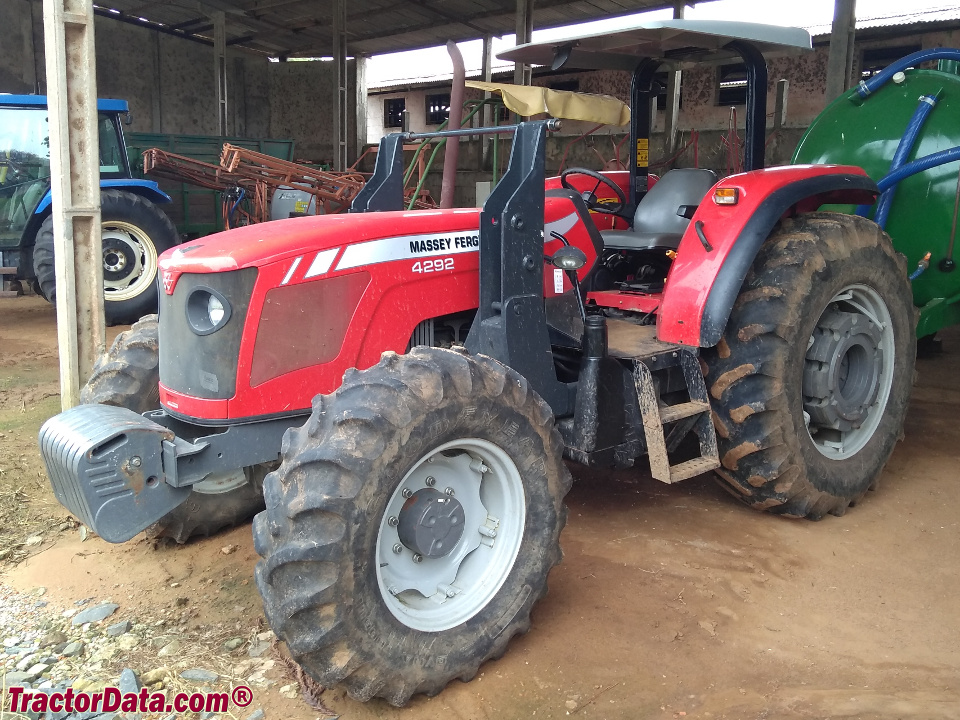

Massey Ferguson 4292
Massey Ferguson 4292 — Row-Crop tractor · 100 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
100 hp
Weight
6720 kg
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Row-Crop tractorReference
Built in Canoas, BrazilReference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post fixed ROPS. Cab optional.Reference
Engine
AGCO Power 4.4L 4-cyl dieselReference
Engine82.0 kWReference
AGCO Power 420DSReference
turbocharged dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement4.4 LReference
Bore/Stroke108 x 120 mmReference
Power82.0 kWReference
Rated RPM2200Reference
Torque429.9 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Oil capacity9.0 LReference
Transmission
12-speed synchromeshReference
TypesynchromeshReference
Gears12 forward and 4 reverseReference
Clutchdry discReference
PTO & Hydraulics
PTO (claimed)74.6 kWReference
Hydraulic system46.2 LReference
Capacity46.2 LReference
Pressure170.0 barReference
Valves2 or 3Reference
Pump flow67.0 lpmReference
Pump flow74.9 lpmReference
Rear TypeIIReference
Rear PTOindependentReference
Clutchdry discReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1900Reference
Engine RPM1000@1900Reference
Capacities
Fuel199.8 LReference
Dimensions
Wheelbase261 cmReference
Weight6720 kgReference
Front tire14.9-24Reference
Rear tire18.4-34Reference
Standard tires (ag)Front: 14.9-24. Rear: 18.4-34Reference
Length426 cmReference
Height260 cmReference
Ground clearance40 cmReference
Rear tread155 to 216 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps55Reference
Cab Charging amps120Reference
Battery volts12Reference
Speeds
With 18.4-34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
