Tractor · 2010Unverified

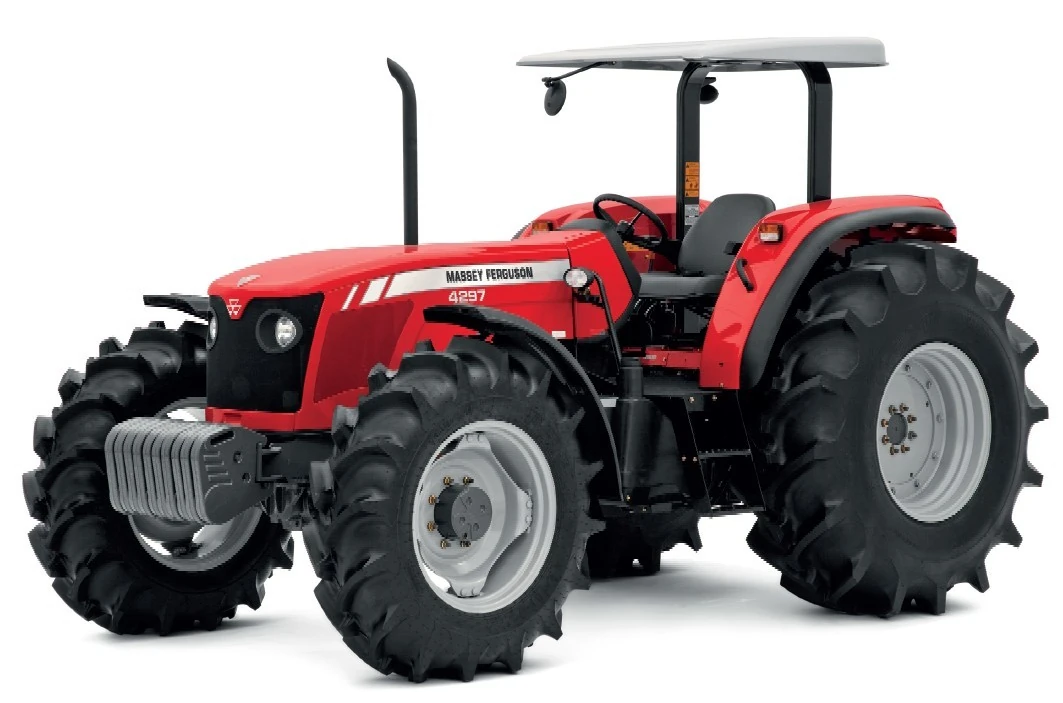

Massey Ferguson 4297
Massey Ferguson 4297 — Row-Crop tractor · 120 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
120 hp
Weight
6745 kg
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Row-Crop tractorReference
Built in Canoas, BrazilReference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post fixed ROPS. Cab optional.Reference
Engine
AGCO Power 4.4L 4-cyl dieselReference
Fuel tank199.8 LReference
Engine89.5 kWReference
AGCO Power 420DSReference
turbocharged dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement4.4 LReference
Bore/Stroke108 x 120 mmReference
Power89.5 kWReference
Rated RPM2200Reference
Torque459.7 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Oil capacity15.0 LReference
Transmission
12-speed synchromeshReference
TypesynchromeshReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase274 cmReference
Weight6745 kgReference
Front tire10.00-16Reference
2WD Rear tire23.1-30Reference
2WD Standard tires (ag)Front: 10.00-16. Rear: 23.1-30Reference
4WD Standard tires (ag)Front: 14.9-26. Rear: 23.1-30Reference
2WD Optional tires (ag)Front: 10.00-16. Rear: 18.4-38Reference
4WD Optional tires (ag)Front: 14.9-28. Rear: 18.4-38Reference
Length457 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
