Tractor · 2004Unverified

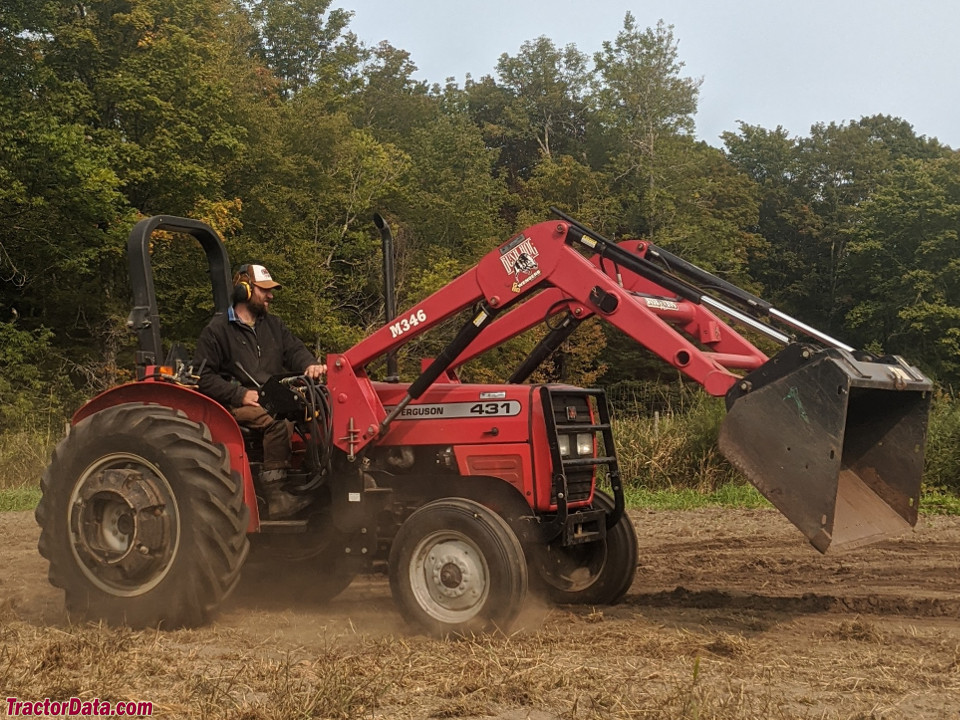

Massey Ferguson 431

Name: Massey Ferguson 431
Brand: Massey Ferguson

Massey Ferguson 431 — 400 Series · 52 hp. Reference specifications; pending source verification.

The Massey Ferguson 431 is a 52 hp tractor, situated at the lower end of its class in terms of power. It was produced between 2004 and 2006. The tractor is equipped with a 3-cylinder diesel liquid-cooled engine, paired with two-wheel drive and an 8-speed gearbox. Its operating weight is 1960 kg, suitable for use on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

52 hp

Weight

1960 kg

Catalogue coverage

Variants represented

Richest spec table

53 rows

Recorded power

52 hp

Recorded weight

1960 kg

Transmissions

8-speed gear

Production years

2004-2006

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey Ferguson (a part of AGCO)Reference

Utility tractorReference

Built in TurkeyReference

Two-wheel driveReference

Final drivesbull gearReference

Power steeringReference

Dry drum brakesReference

Flat-deck platform with two-post folding ROPS.Reference

Engine

Perkins 3.3L 3-cyl dieselReference

Fuel tank48.1 LReference

Engine (gross)38.8 kWReference

Perkins 1103C-33Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement3.3 LReference

Bore/Stroke105 x 127 mmReference

EmissionsTier IIReference

Power (gross)38.8 kWReference

Starter volts12Reference

Transmission

8-speed gearReference

TypegearReference

Gears8 forward and 2 reverseReference

Clutch305mm dry discReference

PTO & Hydraulics

PTO (claimed)32.8 kWReference

Typeopen centerReference

Valves2Reference

Pump flow16.7 lpmReference

Pump flow34.1 lpmReference

SCV flow34.1 lpmReference

SCV flow50.7 lpmReference

Total flow71.5 lpmReference

Steering flow20.8 lpmReference

Rear TypeII/IReference

Controlposition control and top-link draft sensingReference

Rear lift (at 24"/610mm)927 kgReference

Rear PTOliveReference

Clutchdry discReference

Rear PTO Type540 (1.375)Reference

Dimensions

Wheelbase193 cmReference

Weight1960 kgReference

Length325 cmReference

Width166 cmReference

Height (ROPS)234 cmReference

Height (Folded ROPS)178 cmReference

Shipping weight1960 kgReference

Clearance (drawbar)31 cmReference

Massey Ferguson 431 attachments

front-end loaderReference

431 Serial Numbers

2004EN00001Reference

2005EP00001Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
