Tractor · 2001Unverified

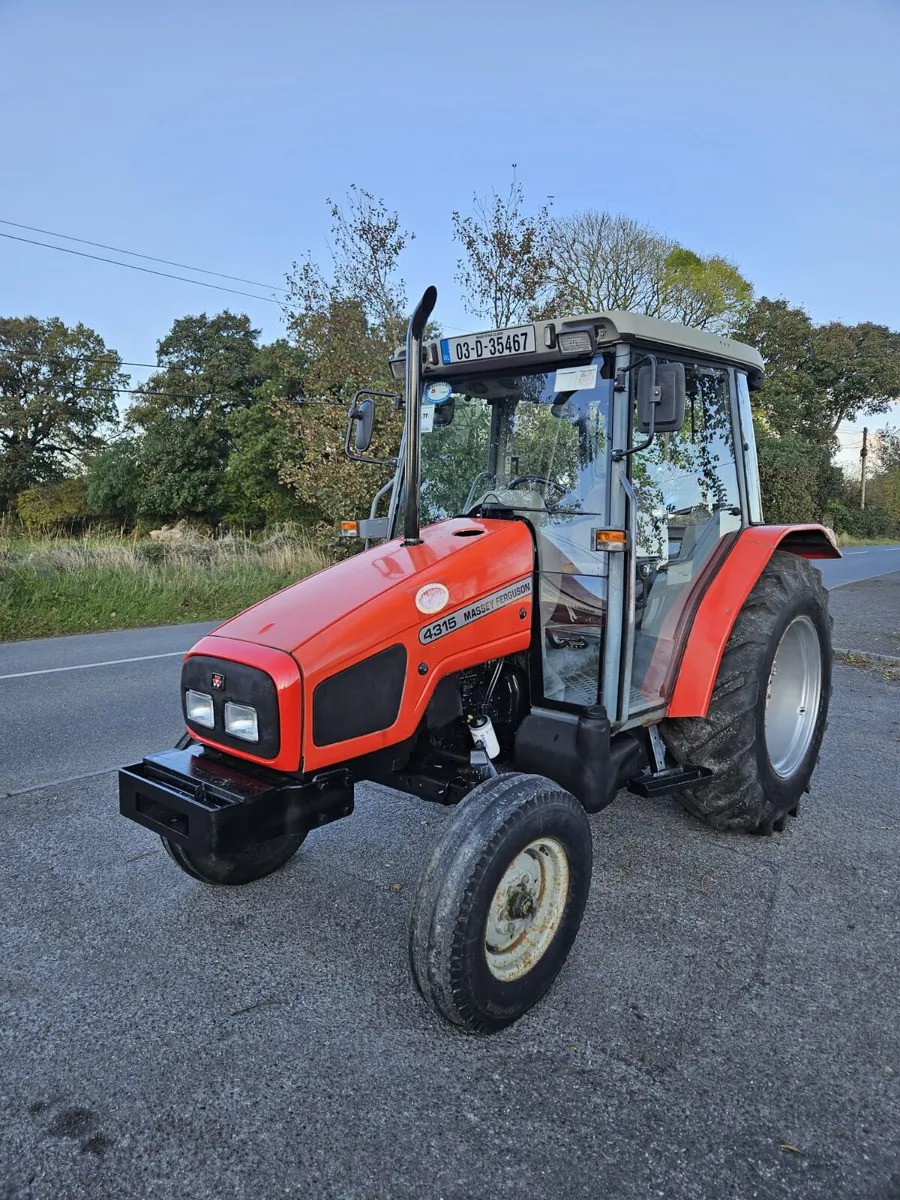

Massey Ferguson 4315
Massey Ferguson 4315 — Utility tractor · 53 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
53 hp
Weight
5258 to 5809 pounds
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Utility tractorReference
Built in Coventry, EnglandReference
Two- or four-wheel driveReference
4WD Differential lockelectro-hydraulic front and rearReference
2WD Differential lockelectro-hydraulic rearReference
Power steeringReference
Wet disc brakesReference
Cab standard.Reference
Engine
Perkins 2.7L 3-cyl dieselReference
Fuel tank84.0 LReference
Engine (gross)39.5 kWReference
Engine (net)38.8 kWReference
Perkins 903.27Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke95 x 127 mmReference
Rated Power (net)38.8 kWReference
Power (gross)39.5 kWReference
Rated RPM2250Reference
Torque189.8 NmReference
Torque RPM1200Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed mechanical shuttleReference
12-speed synchromeshReference
Typemechanical shuttleReference
Gears8 forward and reverseReference
TypesynchromeshReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
Pressure210.0 barReference
Pump flow54.9 lpmReference
Rear TypeII/IReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
2WD Wheelbase213 cmReference
4WD Wheelbase223 cmReference
Weight5258 to 5809 poundsReference
Front tire7.50-16Reference
2WD Rear tire12.4R32Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 12.4R32Reference
4WD Standard tires (ag)Front: 8.3R24. Rear: 12.4R32Reference
Length386 cmReference
Height (cab)238 cmReference
2WD Weight2385 kgReference
4WD Weight2634 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
