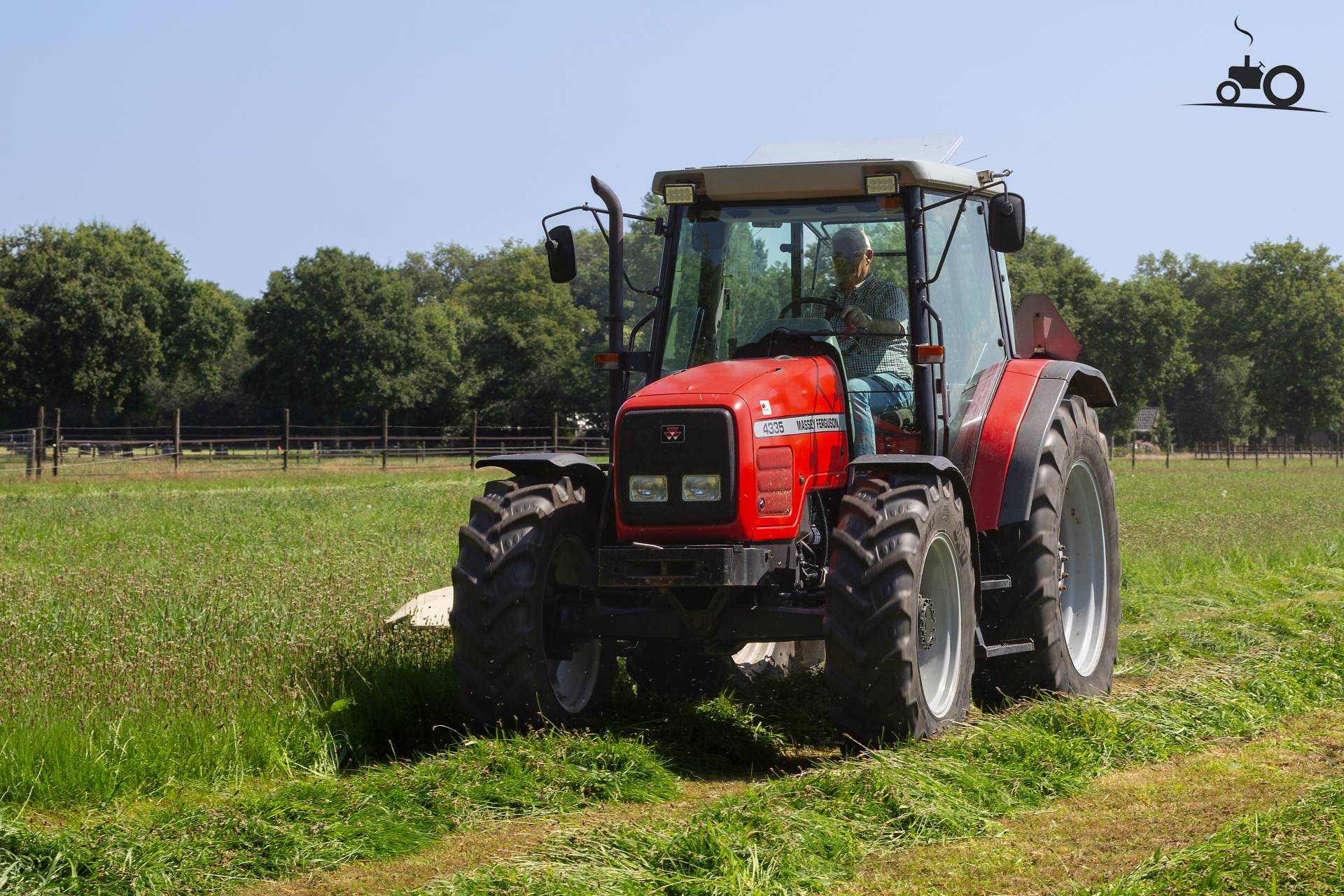

Massey Ferguson 4335
Massey Ferguson 4335 — Utility tractor · 78 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
78 hp
Max power
44.9 kW
Weight
6211 to 8170 pounds
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Utility tractorReference
Built in Coventry, EnglandReference
Two- or four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Independent hydraulic wet disc brakesReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Engine
Perkins 4.2L 4-cyl dieselReference
Cab Fuel tank127.2 LReference
ROPS Fuel tank129.8 LReference
Cab Fuel tank189.2 LReference
ROPS Fuel tank199.8 LReference
Engine (gross)58.2 kWReference
Engine (net)55.2 kWReference
Drawbar (tested)44.9 kWReference
Perkins 1004.42Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke103 x 127 mmReference
Rated Power (net)55.2 kWReference
Power (gross)58.2 kWReference
Air cleanerdual paper elementsReference
Pre-heatingthermostartReference
Compression17.3:1Reference
Rated RPM2200Reference
Torque282.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity17.4 LReference
Power at rated engine speed51.0 kWReference
Max power44.9 kWReference
Transmission
8-speed gearReference
12-speed gearReference
12-speed mechanical shuttleReference
12-speed power shuttleReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutchdry discReference
Gears12 forward and 4 reverseReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Also available as an 8-speed shuttle on ROPS-equipped models.Reference
Typepower shuttleReference
Clutchwet discReference
PTO & Hydraulics
PTO (claimed)48.5 kWReference
PTO (tested)51.0 kWReference
Typeopen centerReference
Pressure210.0 barReference
Valves2 to 4Reference
SCV flow37.9 lpmReference
SCV flow54.5 lpmReference
SCV flow65.1 lpmReference
SCV flow65.9 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift (at 24"/610mm)1662 kgReference
Rear lift (at 24"/610mm)2038 kgReference
Rear Armstelescopic lower linksReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1789Reference
Engine RPM540@1902Reference
Engine RPM1000@2000Reference
Power at rated PTO speed48.3 kWReference
Dimensions
Wheelbase236 cmReference
Weight6211 to 8170 poundsReference
Front tire10.00-16Reference
2WD Rear tire480/70R34Reference
2WD Standard tires (ag)Front: 10.00-16. Rear: 480/70R34Reference
4WD Standard tires (ag)Front: 380/70R24. Rear: 480/70R34Reference
Length414 cmReference
Width195 cmReference
Ground clearance35 cmReference
2WD Front tread132 to 193 cmReference
4WD Front tread139 to 190 cmReference
Rear tread142 to 213 cmReference
2WD ROPS2817 kgReference
4WD ROPS2969 kgReference
2WD Cab3455 kgReference
4WD Cab3705 kgReference
Operating3145 kgReference
Steering wheel180 cmReference
Massey Ferguson 4335 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps45Reference
Cab Charging amps80Reference
Cab Charging amps120Reference
Batteries2Reference
Battery CCA590Reference
Battery volts12Reference
Massey Ferguson 4335 Height
ROPS261 cmReference
Cab254 cmReference
Test results
Diesel 12-speed 4WDOctober 1 - December 1, 2000Link: OCED Tractor Test 1950 fileReference
PTO performanceReference
Fuel use16.3 l/hourReference
Fuel use14.4 l/hourReference
Drawbar performanceReference
Gear 3M used for power test.Reference
Max pull3161 kgReference
Gear 2L used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
