Tractor · 2001Unverified

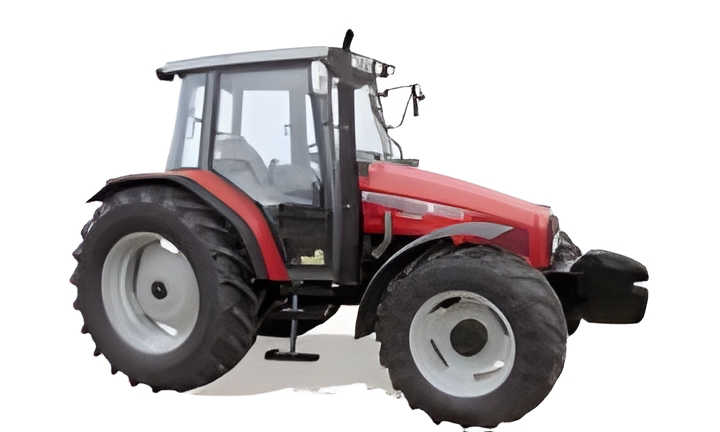

Massey Ferguson 4345

Name: Massey Ferguson 4345
Brand: Massey Ferguson

Massey Ferguson 4345 — Utility tractor · 90 hp. Reference specifications; pending source verification.

The Massey Ferguson 4345 is a tractor with a rated output of 90 hp, positioning it within the middle power range of its class. It was manufactured from 2001 to 2003. The tractor features a 4-cylinder turbocharged diesel liquid-cooled engine that powers four-wheel drive through an 8-speed gearbox. Its listed weight ranges from 6211 to 8287 pounds, making it suitable for tasks covering approximately 200-800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

90 hp

Max power

56.1 kW

Weight

6211 to 8287 pounds

Catalogue coverage

Variants represented

Richest spec table

108 rows

Recorded power

90 hp

Transmissions

8-speed gear

Production years

2001-2003

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey Ferguson (a part of AGCO)Reference

Utility tractorReference

Built in Coventry, EnglandReference

Two- or four-wheel driveReference

Differential lockelectro-hydraulic front and rearReference

Power steeringReference

Independent hydraulic wet disc brakesReference

Two-post folding ROPS. Cab optional with air-conditioning.Reference

Engine

Perkins 4.0L 4-cyl dieselReference

Cab Fuel tank127.2 LReference

ROPS Fuel tank129.8 LReference

Cab Fuel tank189.2 LReference

ROPS Fuel tank199.8 LReference

Engine (gross)67.1 kWReference

Engine (net)62.6 kWReference

Drawbar (tested)47.1 kWReference

Perkins 1004.40TReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.0 LReference

Bore/Stroke100 x 127 mmReference

Rated Power (net)62.6 kWReference

Power (gross)67.1 kWReference

Air cleanerdual paper elementsReference

Compression17.3:1Reference

Rated RPM2200Reference

Torque363.4 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Coolant capacity17.4 LReference

Max power56.1 kWReference

Power at rated engine speed54.5 kWReference

Max power47.1 kWReference

Transmission

8-speed gearReference

12-speed gearReference

12-speed mechanical shuttleReference

12-speed power shuttleReference

TypegearReference

Gears8 forward and 2 reverseReference

Clutchdry discReference

Gears12 forward and 4 reverseReference

Typemechanical shuttleReference

Gears12 forward and reverseReference

Also available as an 8-speed shuttle on ROPS-equipped models.Reference

Typepower shuttleReference

Clutchwet discReference

Also available as a 24-speed.Reference

PTO & Hydraulics

PTO (claimed)55.9 kWReference

PTO (tested)56.1 kWReference

Typeopen centerReference

Pressure210.0 barReference

Valves2 to 4Reference

SCV flow37.9 lpmReference

SCV flow54.5 lpmReference

SCV flow65.1 lpmReference

SCV flow65.9 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift (at 24"/610mm)1662 kgReference

Rear lift (at 24"/610mm)2038 kgReference

Rear Armstelescopic lower linksReference

Rear PTOindependentReference

Clutchhydraulic wet discReference

Rear PTO Type540 (1.375)Reference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@1789Reference

Engine RPM540@1902Reference

Engine RPM1000@2000Reference

Power at rated PTO speed55.8 kWReference

Dimensions

Wheelbase236 cmReference

Weight6211 to 8287 poundsReference

Front tire10.00-16Reference

2WD Rear tire480/70R34Reference

2WD Standard tires (ag)Front: 10.00-16. Rear: 480/70R34Reference

4WD Standard tires (ag)Front: 380/70R24. Rear: 480/70R34Reference

Length414 cmReference

Width205 cmReference

Ground clearance35 cmReference

2WD Front tread144 to 195 cmReference

4WD Front tread139 to 190 cmReference

Rear tread142 to 213 cmReference

2WD ROPS2817 kgReference

4WD ROPS2969 kgReference

2WD Cab3508 kgReference

4WD Cab3758 kgReference

Steering wheel180 cmReference

Massey Ferguson 4345 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

ROPS Charging amps45Reference

Cab Charging amps80Reference

Cab Charging amps120Reference

Batteries2Reference

Battery CCA590Reference

Battery volts12Reference

Massey Ferguson 4345 Height

ROPS264 cmReference

Cab256 cmReference

Test results

Diesel 12-speed 4WDJune 1 - November 1, 1998Link: OCED Tractor Test 1802 fileReference

PTO performanceReference

Fuel use17.8 l/hourReference

Fuel use19.3 l/hourReference

Drawbar performanceReference

Fuel use19.7 l/hourReference

Gear 2M used for power test.Reference

Max pull4059 kgReference

Gear 1L used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
