Tractor · 2001Unverified

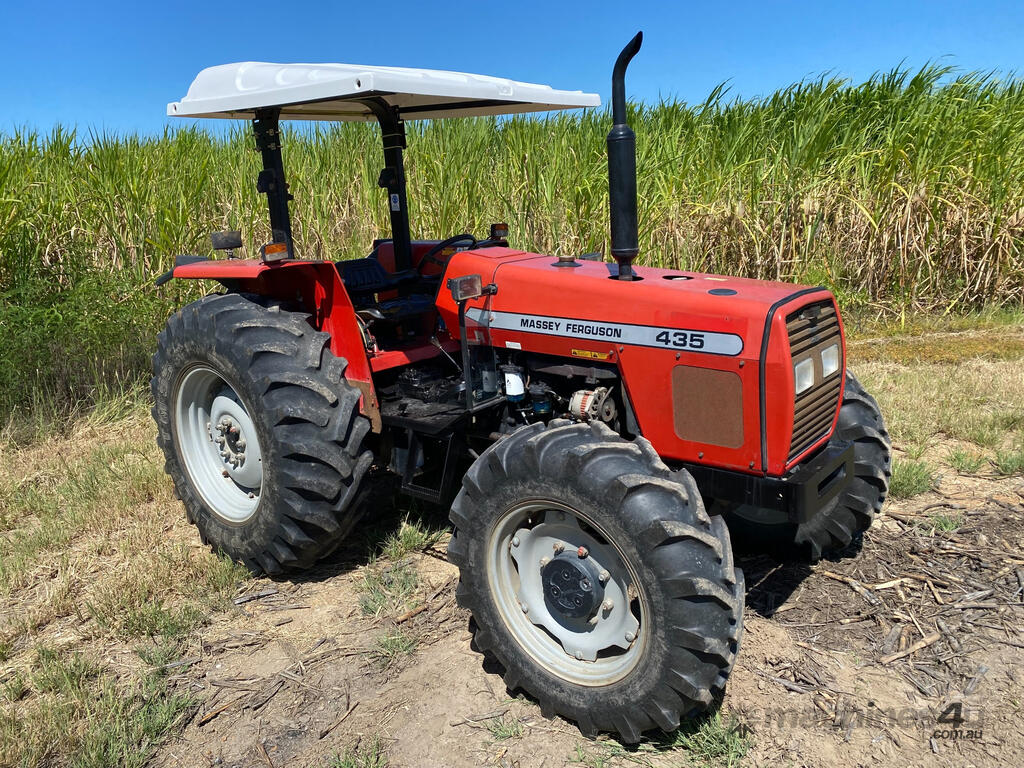

Massey Ferguson 435

Name: Massey Ferguson 435
Brand: Massey Ferguson

Massey Ferguson 435 — 400 Series · 63 hp. Reference specifications; pending source verification.

The Massey Ferguson 435 is a tractor with a rated power of 63 hp, categorising it as a lighter model in its class. Manufactured from 2001 to 2010, it features a 4-cylinder diesel liquid-cooled engine paired with mechanical front-wheel drive and a hydrostatic transmission. The operating weight of this model ranges from 5710 to 6327 pounds. It is suited for operations of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

63 hp

Max power

72 hp

Weight

5710 to 6327 pounds

Catalogue coverage

Variants represented

Richest spec table

88 rows

Recorded power

63 hp

Recorded weight

2590 kg

Transmissions

8-speed sliding spur gear

Production years

2001-2010

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Utility tractorReference

Built in Canoas, BrazilReference

Drive4x2 2WDReference

Drive4x4 MFWD 4WD (optional)Reference

Steeringhydrostatic powerReference

Wet disc brakesReference

Open operator station. Two-post ROPS optional with available canopy.Reference

Variants

435utilityReference

435NnarrowReference

Engine

Perkins 4.0L 4-cyl dieselReference

Fuel tank74.9 LReference

Engine53.7 kWReference

Perkins P4000Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.0 LReference

Bore/Stroke100 x 127 mmReference

Power53.7 kWReference

Fuel systemdirect injectionReference

Rated RPM2200Reference

Torque267.0 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,200 RPMReference

Engine torque at rated speed89.3 kgReference

Bore and stroke3.937x5.00 inchesReference

Cooling systemliquid-cooledReference

Transmission

8-speed sliding spur gearReference

12-speed synchromeshReference

Typesliding spur gearReference

Gears8 forward and 2 reverseReference

TypesynchromeshReference

Gears12 forward and 4 reverseReference

Transmission TypeGearReference

forward and reverse optionsSliding Spur Gear : 8 F and 2 R | Synchromesh : 12 F and 4 RReference

Wheel Drive2 WD | 4 WD (Optional)Reference

PTO & Hydraulics

PTO (claimed)46.6 kWReference

Pressure170.0 barReference

Pump flow42.0 lpmReference

Rear TypeIIReference

Controldraft, position, and response controlReference

Rear PTOliveReference

Rear PTOindependent (optional)Reference

Rear PTO Type540 (1.375)Reference

Engine RPM540@1900Reference

Dimensions

2WD Wheelbase214 cmReference

4WD Wheelbase236 cmReference

Weight5710 to 6327 poundsReference

Front tire7.50-16Reference

Rear tire18.4-30 (2WD)Reference

Standard tires (ag)Front: 7.50-16. Rear: 18.4-30 (2WD)Reference

Standard tires (ag)Front: 12.4-24. Rear: 18.4-30 (4WD)Reference

2WD Length398 cmReference

4WD Length413 cmReference

Height (ROPS)258 cmReference

Height (exhaust)244 cmReference

2WD Shipping weight2590 kgReference

4WD Shipping weight2869 kgReference

Electrical

GroundnegativeReference

Battery volts12Reference

General

Make & ModelMassey FergusonReference

Rollover protective structureTwo-post ROPS optional with available canopy.Reference

Country of manufacturerBrazilReference

Capacities

Capacity244.1 ciReference

Power

Max Power72 hpReference

PTO

PTO Power62.5 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Engine Speed on Rear PTO speed540@1,900 RPMReference

Steering & brakes

BrakesWet DiscReference

Steering typeHydrostatic PowerReference

Hydraulics

Pump Rated Output (total)11.1 gpmReference

Maximum operating pressure2,466 psiReference

Rear Hitch category (SAE designation)Category IIReference

Rear Hitch Sensing Typedraft, position, and response controlReference

Dimensions & weight

Wheelbase237 cmReference

Overall Height244.1 cmReference

Height Over ROPS258.1 cmReference

Overall Length413 cmReference

Overall weight2,869.9 kgReference

Wheels & tyres

Rear Wheel Type18.4-30 (2WD) | 18.4-30 (4WD)Reference

Front Wheel Type7.50-16. (2WD) | 12.4-24.(4WD)Reference

Operator station

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
