Tractor · 2001Unverified

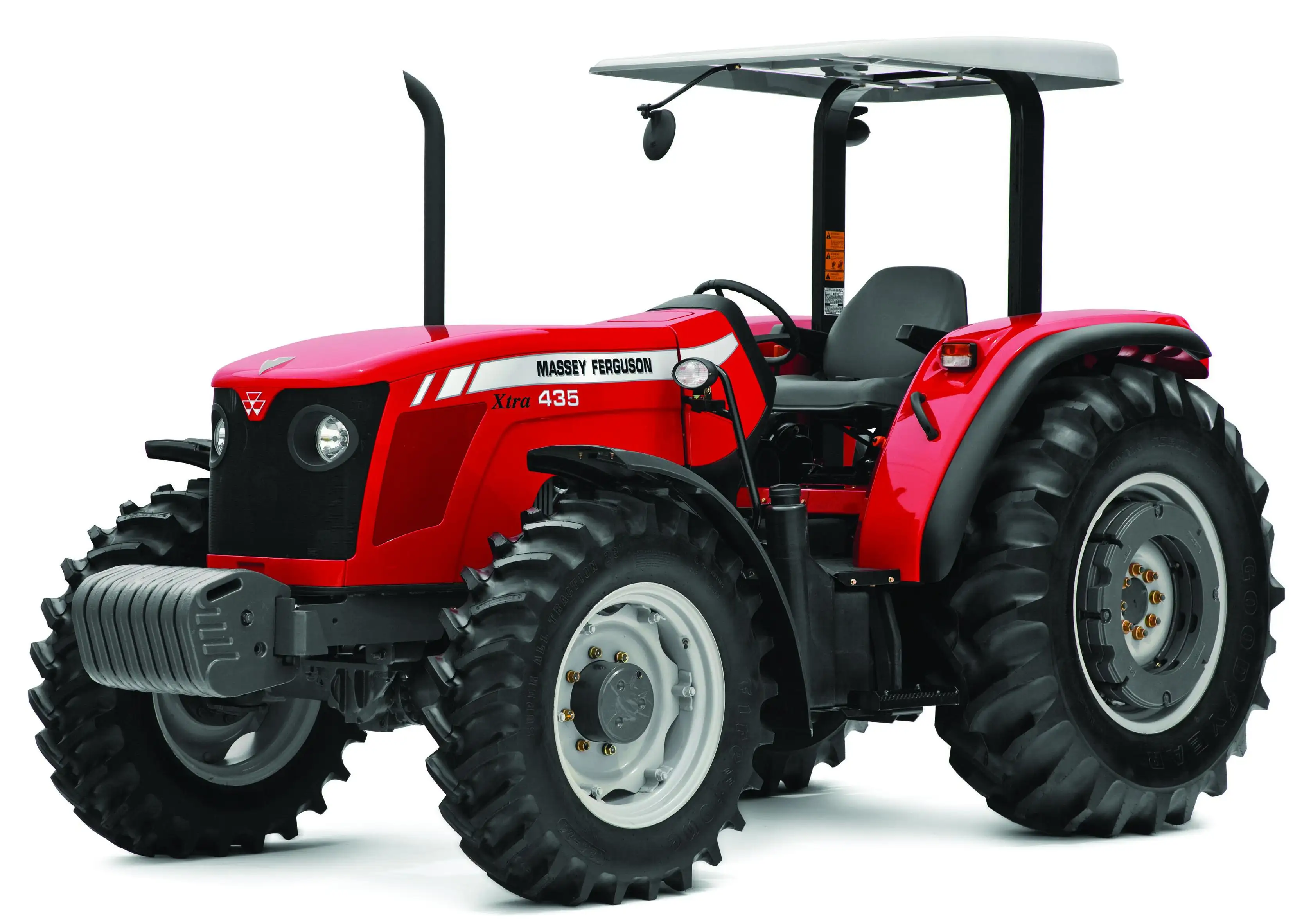

Massey Ferguson 435N
Massey Ferguson 435N — 400 Series · 63 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
63 hp
Weight
4751 to 6318 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Orchard/Vineyard tractorReference
Built in Canoas, BrazilReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Steeringhydrostatic powerReference
Wet disc brakesReference
Open operator station. Mid-mount two-post folding ROPS optional.Reference
Variants
435utilityReference
435NnarrowReference
Engine
Perkins 4.0L 4-cyl dieselReference
Engine53.7 kWReference
Perkins P4000Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.0 LReference
Bore/Stroke100 x 127 mmReference
Power53.7 kWReference
Fuel systemdirect injectionReference
Rated RPM2200Reference
Torque267.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed sliding spur gearReference
12-speed synchromeshReference
Typesliding spur gearReference
Gears8 forward and 2 reverseReference
TypesynchromeshReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)46.6 kWReference
Hydraulic system42.0 LReference
Hydraulic system43.9 LReference
Capacity42.0 LReference
Capacity43.9 LReference
Pressure170.0 barReference
Pump flow42.0 lpmReference
Rear TypeIIReference
Controldraft, position, and response controlReference
Rear PTOliveReference
Rear PTOindependent (optional)Reference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1900Reference
Capacities
Fuel74.9 LReference
Dimensions
Wheelbase214 cmReference
Weight4751 to 6318 poundsReference
Front tire6.00-16Reference
Rear tire14.9-24 (2WD)Reference
Standard tires (ag)Front: 6.00-16. Rear: 14.9-24 (2WD)Reference
Standard tires (ag)Front: 12.5/80-18. Rear: 14.9-24 (4WD)Reference
Length359 cmReference
Height (steering wheel)156 cmReference
2WD Shipping weight2155 kgReference
4WD Shipping weight2865 kgReference
Front tread110 to 131 cmReference
Front tread132 to 139 cmReference
Rear tread119 to 138 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
