Tractor · 2001Unverified

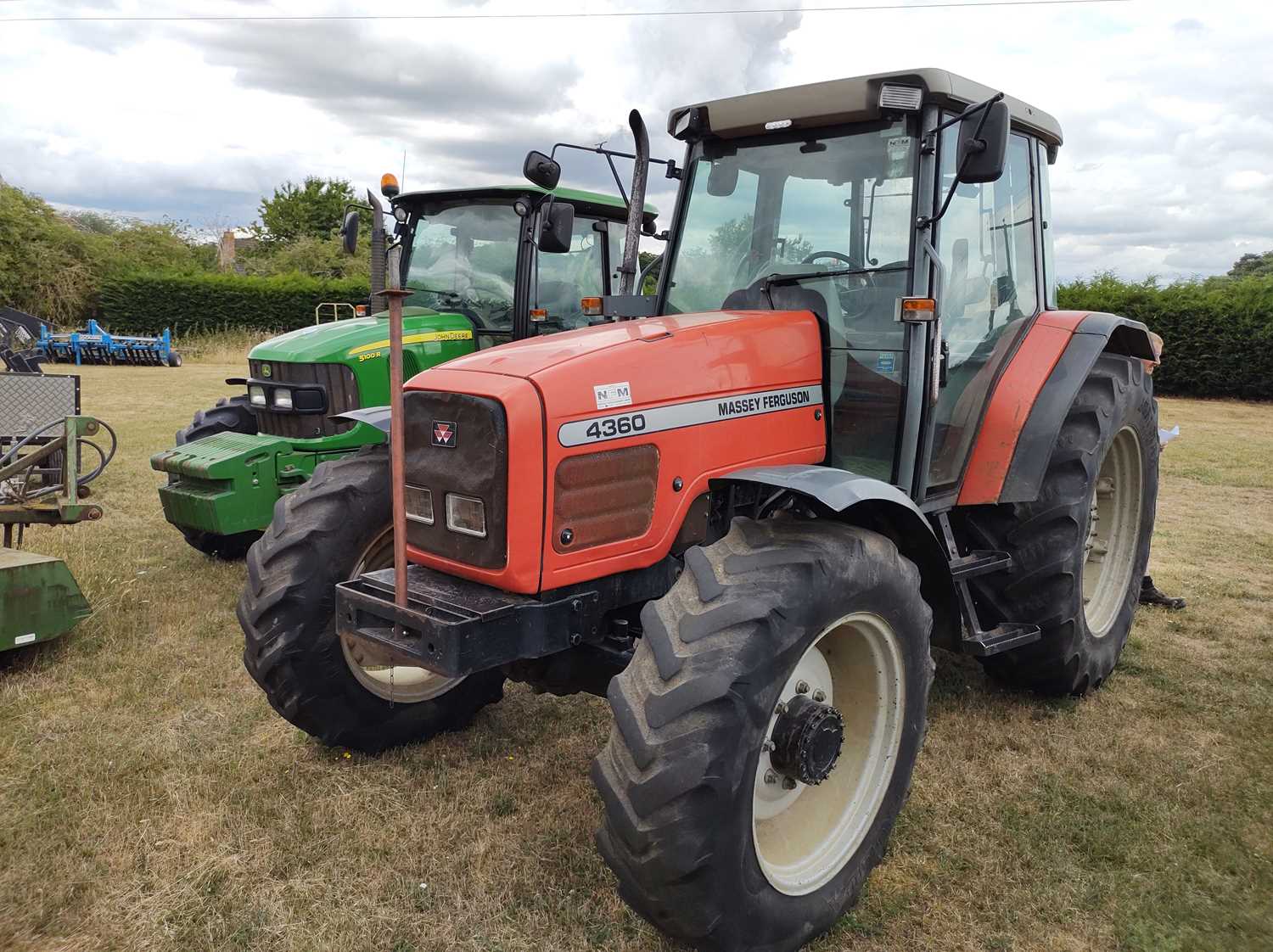

Massey Ferguson 4360

Name: Massey Ferguson 4360
Brand: Massey Ferguson

Massey Ferguson 4360 — Utility tractor · 106 hp. Reference specifications; pending source verification.

The Massey Ferguson 4360 is a tractor model with an approximate power output of 106 hp, a mid-range rating for its class. It was produced from 2001 to 2003 and features a 6-cylinder diesel liquid-cooled engine, coupled with four-wheel drive and a 12-speed gearbox. The operating weight of this model ranges from 6959 to 9085 pounds. It is suitable for operations covering an area of 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

106 hp

Max power

70.8 kW

Weight

6959 to 9085 pounds

Catalogue coverage

Variants represented

Richest spec table

96 rows

Recorded power

106 hp

Transmissions

12-speed gear

Production years

2001-2003

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey Ferguson (a part of AGCO)Reference

Utility tractorReference

Built in Coventry, EnglandReference

Two- or four-wheel driveReference

Differential lockelectro-hydraulic front and rearReference

Power steeringReference

Independent hydraulic wet disc brakesReference

Two-post folding ROPS. Cab optional with air-conditioning.Reference

Engine

Perkins 6.0L 6-cyl dieselReference

Cab Fuel tank143.8 LReference

ROPS Fuel tank129.8 LReference

Cab Fuel tank205.9 LReference

ROPS Fuel tank199.8 LReference

Engine (gross)79.0 kWReference

Engine (net)74.6 kWReference

Drawbar (tested)58.4 kWReference

Perkins 1006.60Reference

dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.0 LReference

Bore/Stroke100 x 127 mmReference

Rated Power (net)74.6 kWReference

Power (gross)79.0 kWReference

Air cleanerdual paper elementsReference

Compression17.3:1Reference

Rated RPM2200Reference

Torque387.8 NmReference

Torque RPM1200Reference

StarterelectricReference

Starter volts12Reference

Coolant capacity17.4 LReference

Max power70.8 kWReference

Power at rated engine speed70.4 kWReference

Max power58.4 kWReference

Transmission

12-speed gearReference

12-speed power shuttleReference

24-speed power shuttleReference

TypegearReference

Gears12 forward and 4 reverseReference

Clutchdry discReference

Gears12 forward and reverseReference

Typepower shuttleReference

Clutchwet discReference

Gears24 forward and reverseReference

PTO & Hydraulics

PTO (claimed)67.1 kWReference

PTO (tested)70.8 kWReference

Typeopen centerReference

Pressure210.0 barReference

Valves2 to 4Reference

SCV flow37.9 lpmReference

SCV flow65.9 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift (at 24"/610mm)2038 kgReference

Rear lift (at 24"/610mm)2590 kgReference

Rear Armstelescopic lower linksReference

Rear PTOindependentReference

Clutchhydraulic wet discReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@1902Reference

Engine RPM1000@2000Reference

Power at rated PTO speed69.1 kWReference

Dimensions

Wheelbase261 cmReference

Weight6959 to 9085 poundsReference

Length444 cmReference

Width205 cmReference

Ground clearance35 cmReference

2WD Front tread137 to 198 cmReference

4WD Front tread139 to 190 cmReference

Rear tread142 to 213 cmReference

2WD ROPS3156 kgReference

4WD ROPS3607 kgReference

2WD Cab3871 kgReference

4WD Cab4120 kgReference

Operating4118 kgReference

Steering wheel180 cmReference

Massey Ferguson 4360 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

ROPS Charging amps45Reference

Cab Charging amps80Reference

Cab Charging amps120Reference

Batteries2Reference

Battery CCA590Reference

Battery volts12Reference

Massey Ferguson 4360 Height

ROPS261 cmReference

Cab264 cmReference

Test results

Diesel 12-speed 4WDAugust 1 - September 1, 1997Link: OCED Tractor Test 1731 fileReference

PTO performanceReference

Fuel use22.0 l/hourReference

Fuel use20.4 l/hourReference

Drawbar performanceReference

Gear 6 used for power test.Reference

Max pull4272 kgReference

Gear 2L used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
