Tractor · 2001Unverified

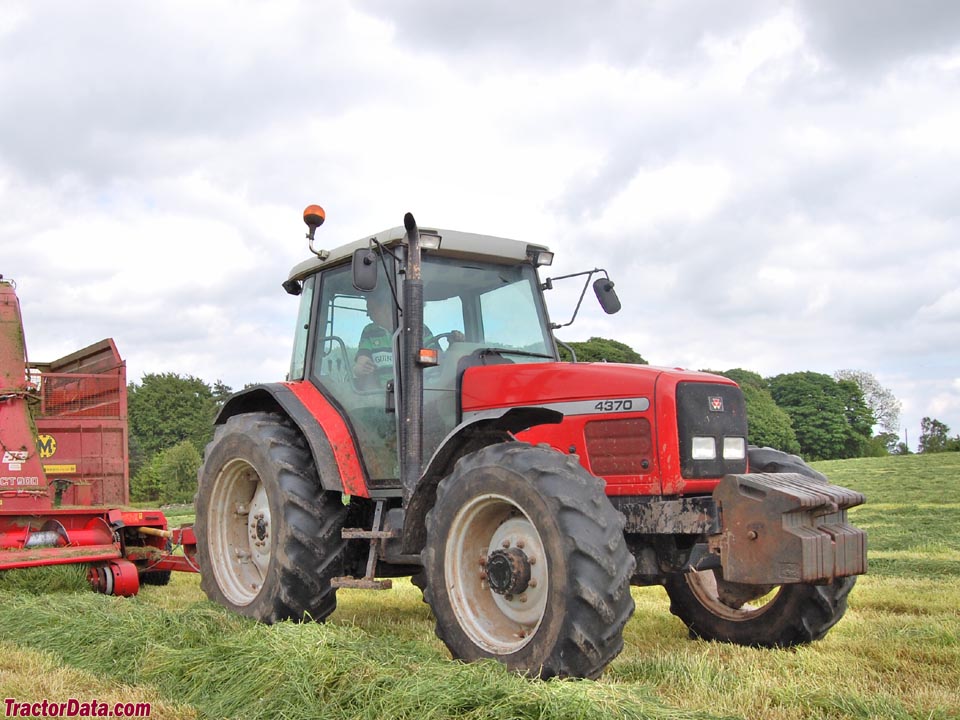

Massey Ferguson 4370
Massey Ferguson 4370 — Utility tractor · 116 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
116 hp
Max power
75.7 kW
Weight
6959 to 9105 pounds
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Utility tractorReference
Built in Coventry, EnglandReference
Two- or four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Independent hydraulic wet disc brakesReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Engine
Perkins 6.0L 6-cyl dieselReference
Cab Fuel tank143.8 LReference
ROPS Fuel tank129.8 LReference
Cab Fuel tank205.9 LReference
ROPS Fuel tank199.8 LReference
Engine (gross)86.5 kWReference
Engine (net)81.3 kWReference
Drawbar (tested)58.9 kWReference
Perkins 1006.60TReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.0 LReference
Bore/Stroke100 x 127 mmReference
Rated Power (net)81.3 kWReference
Power (gross)86.5 kWReference
Air cleanerdual paper elementsReference
Compression17.3:1Reference
Rated RPM2200Reference
Torque465.1 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity28.0 LReference
Max power75.7 kWReference
Power at rated engine speed74.8 kWReference
Max power58.9 kWReference
Transmission
12-speed gearReference
12-speed power shuttleReference
24-speed power shuttleReference
TypegearReference
Gears12 forward and 4 reverseReference
Clutchdry discReference
Gears12 forward and reverseReference
Typepower shuttleReference
Clutchwet discReference
Gears24 forward and reverseReference
PTO & Hydraulics
PTO (claimed)73.8 kWReference
PTO (tested)75.7 kWReference
Typeopen centerReference
Pressure210.0 barReference
Valves2 to 4Reference
SCV flow37.9 lpmReference
SCV flow65.9 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
ROPS Rear lift (at 24"/610mm)2590 kgReference
Cab Rear lift (at 24"/610mm)3284 kgReference
Rear Armstelescopic lower linksReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1902Reference
Engine RPM1000@2000Reference
Power at rated PTO speed75.2 kWReference
Dimensions
Wheelbase261 cmReference
Weight6959 to 9105 poundsReference
Length444 cmReference
Width205 cmReference
Ground clearance35 cmReference
2WD Front tread137 to 198 cmReference
4WD Front tread139 to 190 cmReference
Rear tread142 to 213 cmReference
2WD ROPS3156 kgReference
4WD ROPS3607 kgReference
2WD Cab3871 kgReference
4WD Cab4120 kgReference
Operating4130 kgReference
Steering wheel180 cmReference
Massey Ferguson 4370 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps45Reference
Cab Charging amps80Reference
Cab Charging amps120Reference
Batteries2Reference
Battery CCA590Reference
Battery volts12Reference
Massey Ferguson 4370 Height
ROPS261 cmReference
Cab264 cmReference
Test results
Diesel 12-speed 4WDJune 1 - July 1, 1997Link: OCED Tractor Test 1715 fileReference
PTO performanceReference
Fuel use22.7 l/hourReference
Fuel use23.5 l/hourReference
Fuel use22.0 l/hourReference
Drawbar performanceReference
Gear 2M used for power test.Reference
Max pull4232 kgReference
Gear 2L used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
