Tractor · 2001Unverified

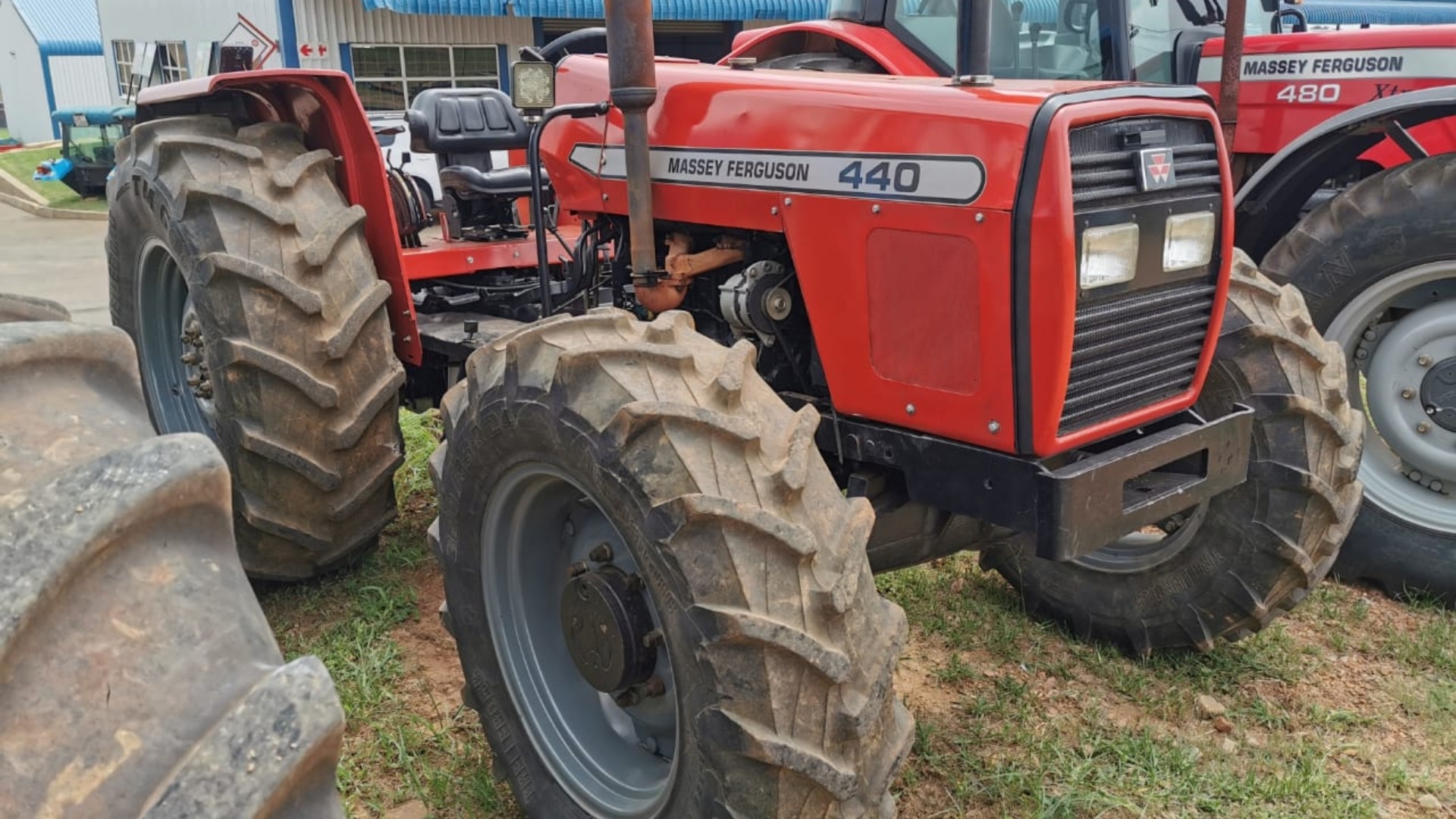

Massey Ferguson 440
Massey Ferguson 440 — 400 Series · 71 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
71 hp
Weight
5776 to 6702 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Utility tractorReference
Built in Canoas, BrazilReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Steeringhydrostatic powerReference
Wet disc brakesReference
Open operator station. Two-post ROPS optional with available canopy.Reference
Engine
Perkins 4.0L 4-cyl dieselReference
Fuel tank74.9 LReference
Engine61.1 kWReference
Perkins P4000Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.0 LReference
Bore/Stroke100 x 127 mmReference
Power61.1 kWReference
Fuel systemdirect injectionReference
Rated RPM2200Reference
Torque288.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed sliding spur gearReference
12-speed synchromeshReference
Typesliding spur gearReference
Gears8 forward and 2 reverseReference
TypesynchromeshReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)52.7 kWReference
Pressure170.0 barReference
Pump flow42.0 lpmReference
Rear TypeIIReference
Controldraft, position, and response controlReference
Rear PTOliveReference
Rear PTOindependent (optional)Reference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1900Reference
Dimensions
2WD Wheelbase214 cmReference
4WD Wheelbase236 cmReference
Weight5776 to 6702 poundsReference
Front tire7.50-16Reference
Rear tire18.4-30 (2WD)Reference
Standard tires (ag)Front: 7.50-16. Rear: 18.4-30 (2WD)Reference
Standard tires (ag)Front: 12.4-24. Rear: 18.4-30 (4WD)Reference
2WD Length398 cmReference
4WD Length413 cmReference
Height (ROPS)258 cmReference
Height (exhaust)244 cmReference
2WD Shipping weight2619 kgReference
4WD Shipping weight3040 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
