Tractor · 2011Unverified

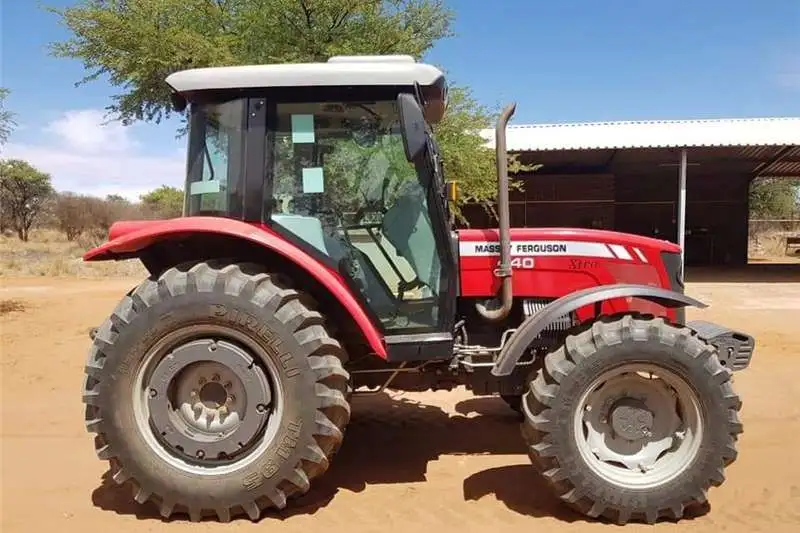

Massey Ferguson 440 Xtra
Massey Ferguson 440 Xtra — 400 Xtra Series · 82 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
82 hp
Weight
3040 kg
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Utility tractorReference
Built in Canoas, BrazilReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Engine
Perkins 4.1L 4-cyl dieselReference
Perkins 4.4L 4-cyl dieselReference
Engine61.1 kWReference
Perkins A4-4.1Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.1 LReference
Bore/Stroke100 x 127 mmReference
Power61.1 kWReference
Fuel systemdirect injectionReference
Torque288.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Oil capacity8.0 LReference
Perkins 1104.4CReference
The 1104 engine was used on 440 Xtra in the South African market and was advertised as Tier II compliant.Reference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
EmissionsTier IIReference
Transmission
8-speed sliding spur gearReference
12-speed synchromeshReference
Typesliding spur gearReference
Gears8 forward and 2 reverseReference
Oil capacity42.0 LReference
TypesynchromeshReference
Gears12 forward and 4 reverseReference
Capacities
Fuel99.9 LReference
PTO & Hydraulics
Hydraulic system42.0 LReference
Capacity42.0 LReference
Pressure170.0 barReference
Valves1 (ROPS)Reference
Valves2 (cab)Reference
Pump flow42.0 lpmReference
Rear lift2500 kgReference
Rear PTOliveReference
Rear PTOindependent (optional)Reference
Rear PTO Type540Reference
Dimensions
Wheelbase236 cmReference
Weight3040 kgReference
Front tire7.50-16Reference
Rear tire18.4-30 (2WD)Reference
Standard tires (ag)Front: 7.50-16. Rear: 18.4-30 (2WD)Reference
Standard tires (ag)Front: 12.4-24. Rear: 18.4-30 (4WD)Reference
Length413 cmReference
Height (exhaust)258 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
