Tractor · 2004Unverified

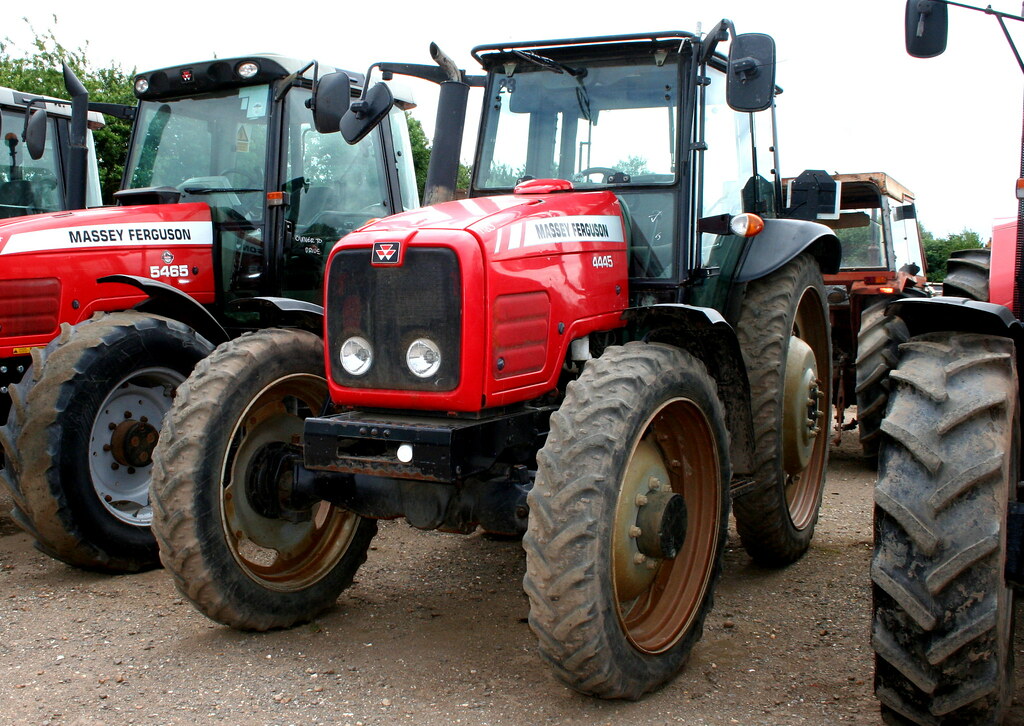

Massey Ferguson 4445

Name: Massey Ferguson 4445
Brand: Massey Ferguson

Massey Ferguson 4445 — Utility tractor · 87 hp. Reference specifications; pending source verification.

The Massey Ferguson 4445 is a mid-range tractor rated at 87 hp. It was produced from 2004 to 2011. The tractor features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with mechanical front-wheel drive and a 12-speed gearbox. Its operating weight ranges from 7606 to 8113 pounds, and it is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

87 hp

Max power

86.5 hp

Weight

7606 to 8113 pounds

Catalogue coverage

Variants represented

Richest spec table

98 rows

Recorded power

87 hp

Recorded weight

3450 kg

Transmissions

12-speed mechanical shuttle

Production years

2004-2011

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey Ferguson (a part of AGCO)Reference

Utility tractorReference

Drive4x2 2WDl 4x4 MFWD 4WDReference

Power steeringReference

Hydraulic wet disc brakesReference

Trailer brakeshydraulicReference

Cab standard with heat. Air-conditioning optional. Two-post ROPS platform model available.Reference

Engine

SISU 4.4L 4-cyl dieselReference

Fuel tank70.0 LReference

Fuel tank95.0 LReference

Engine64.5 kWReference

SISU 44DTAReference

turbocharged intercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.4 LReference

Bore/Stroke108 x 120 mmReference

Power64.5 kWReference

Air cleanerdryReference

Rated RPM2270Reference

Torque324.1 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,270 RPMReference

Engine torque at rated speed108.4 kgReference

Bore and stroke4.25x4.72 inchesReference

Cooling systemliquid-cooledReference

Transmission

12-speed mechanical shuttleReference

Typemechanical shuttleReference

Gears12 forward and reverseReference

Clutch295mm dry discReference

Four gears in three ranges with a mechanical shuttle. Optional push-button power clutch.Reference

Transmission TypeMechanical ShuttleReference

forward and reverse optionsMechanical shuttle 12F and 12RReference

Wheel Drive2WDReference

PTO & Hydraulics

Pressure190.0 barReference

Valves2 to 4Reference

Pump flow54.9 lpmReference

Rear TypeIIReference

Controlposition control and top-link draft sensingReference

Rear lift (at ends)3299 kgReference

Rear PTOindependentReference

ClutchmechanicalReference

Clutchelectro-hydraulicReference

Rear PTO Type540/1000Reference

Rear PTO Type540/540EReference

Engine RPM540@1890Reference

Engine RPM540E@1594Reference

Engine RPM1000@2074Reference

Dimensions

2WD Wheelbase224 cmReference

4WD Wheelbase239 cmReference

Weight7606 to 8113 poundsReference

Front tire10.00-16Reference

2WD Rear tire16.9R34Reference

2WD Standard tires (ag)Front: 10.00-16. Rear: 16.9R34Reference

4WD Standard tires (ag)Front: 13.6R24. Rear: 16.9R34Reference

2WD Length395 cmReference

4WD Length405 cmReference

Width217 cmReference

Height (cab)270 cmReference

Height (cab)254 cmReference

2WD Weight3450 kgReference

4WD Weight3680 kgReference

2WD Front tread140 to 161 cmReference

4WD Front tread130 to 181 cmReference

Rear tread140 to 211 cmReference

Electrical

Charging systemalternatorReference

Battery volts12Reference

General

Make & ModelMassey FergusonReference

SCV controlJoystickReference

Rollover protective structureTwo-post ROPS platform model availableReference

Capacities

Capacity268.5 ciReference

Power

Max Power86.5 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Engine Speed on Rear PTO speed1,000@2,074 RPMReference

Steering & brakes

Brakeshydraulic wet discReference

Steering typepowerReference

Hydraulics

Pump Rated Output (total)14.5 gpmReference

Maximum operating pressure2,756 psiReference

Remote Valves2 to 4 valvesReference

Rear Hitch category (SAE designation)Category IIReference

Rear Hitch maximum lift capacity3,299.9 kgReference

Rear Hitch Sensing Typeposition control and top-link draft sensingReference

Dimensions & weight

Wheelbase239 cmReference

Height Over Cab270 cmReference

Overall Length405.9 cmReference

Overall Width217.9 cmReference

Overall weight3,680 kgReference

Wheels & tyres

Rear Wheel Type16.9R34Reference

Rear wheel tread range55.5 to 83.1 inchesReference

Front Wheel Type10.00-16Reference

Front Wheel tread range51.2 to 71.5 inchesReference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
