Tractor · 2004Unverified

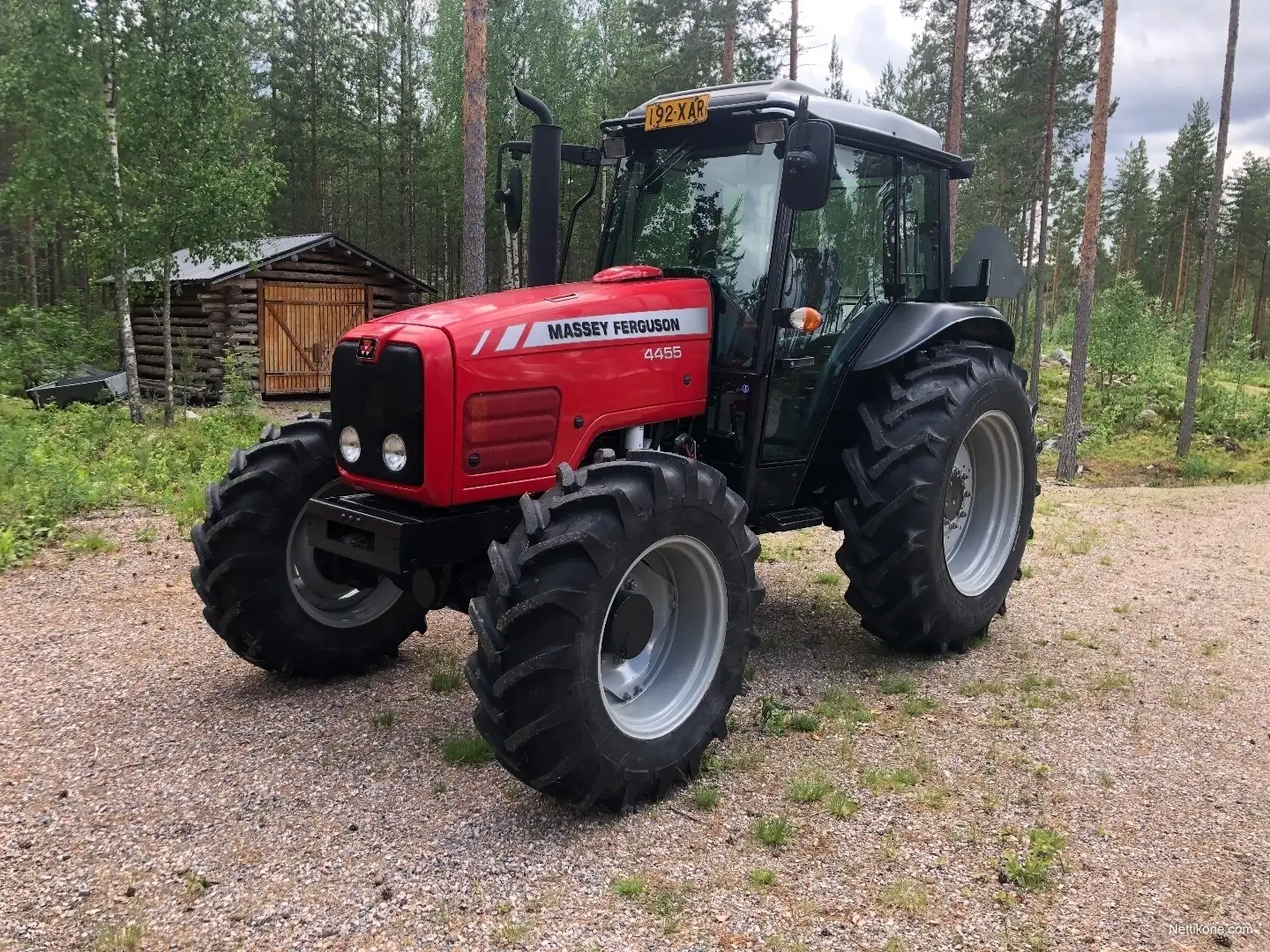

Massey Ferguson 4455
Massey Ferguson 4455 — Utility tractor · 100 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
100 hp
Weight
7606 to 8113 pounds
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Utility tractorReference
Drive4x2 2WDl 4x4 MFWD 4WDReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Cab standard with heat. Air-conditioning optional. Two-post ROPS platform model available.Reference
Engine
SISU 4.4L 4-cyl dieselReference
Fuel tank70.0 LReference
Fuel tank95.0 LReference
Engine74.5 kWReference
SISU 44DTAReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke108 x 120 mmReference
Power74.5 kWReference
Air cleanerdryReference
Rated RPM2270Reference
Torque359.3 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed mechanical shuttleReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Clutch295mm dry discReference
Four gears in three ranges with a mechanical shuttle. Optional push-button power clutch.Reference
PTO & Hydraulics
Pressure190.0 barReference
Valves2 to 4Reference
Pump flow54.9 lpmReference
Rear TypeIIReference
Controlposition control and top-link draft sensingReference
Rear lift (at ends)3299 kgReference
Rear PTOindependentReference
ClutchmechanicalReference
Clutchelectro-hydraulicReference
Rear PTO Type540/1000Reference
Rear PTO Type540/540EReference
Engine RPM540@1890Reference
Engine RPM540E@1594Reference
Engine RPM1000@2074Reference
Dimensions
2WD Wheelbase224 cmReference
4WD Wheelbase239 cmReference
Weight7606 to 8113 poundsReference
Front tire10.00-16Reference
2WD Rear tire16.9R34Reference
2WD Standard tires (ag)Front: 10.00-16. Rear: 16.9R34Reference
4WD Standard tires (ag)Front: 13.6R24. Rear: 16.9R34Reference
2WD Length395 cmReference
4WD Length405 cmReference
Width217 cmReference
Height (cab)270 cmReference
Height (cab)254 cmReference
2WD Weight3450 kgReference
4WD Weight3680 kgReference
2WD Front tread140 to 161 cmReference
4WD Front tread130 to 181 cmReference
Rear tread140 to 211 cmReference
Electrical
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
