Tractor · 2011Unverified

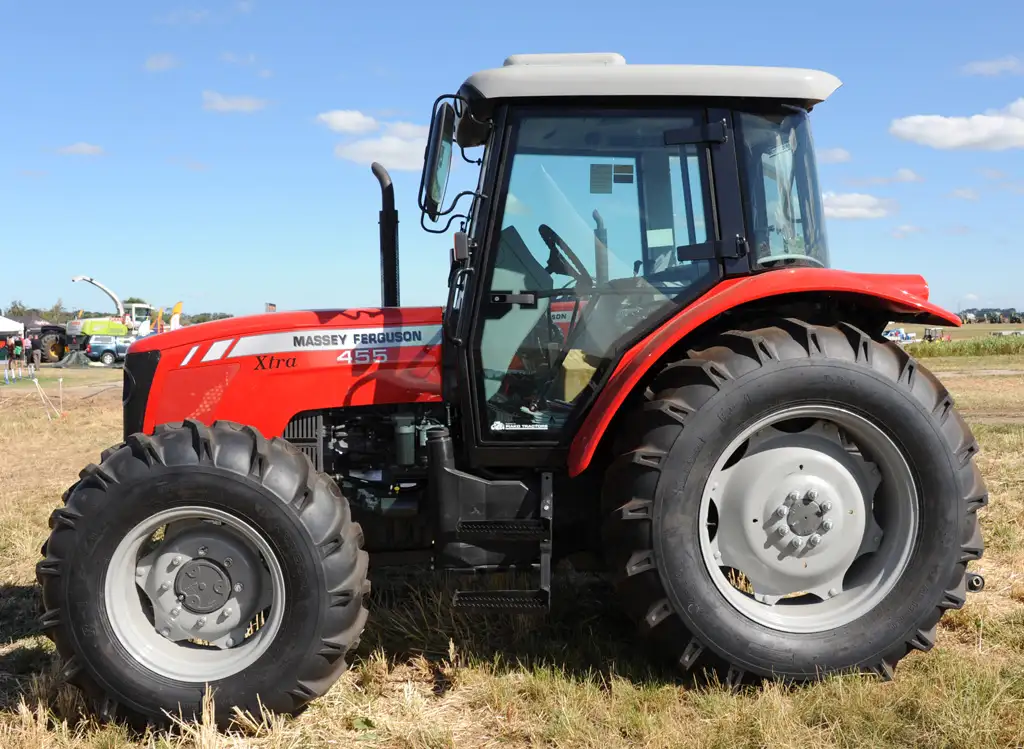

Massey Ferguson 455 Xtra

Name: Massey Ferguson 455 Xtra
Brand: Massey Ferguson

Massey Ferguson 455 Xtra — 400 Xtra Series · 100 hp. Reference specifications; pending source verification.

The Massey Ferguson 455 Xtra is a tractor with a power rating of approximately 100 hp, categorised as a mid-range model. It was produced in 2011. The tractor features a 4-cylinder turbocharged diesel liquid-cooled engine, coupled with mechanical front-wheel drive and a hydrostatic transmission. It has a listed operating weight of 4070 kg and is suitable for operations spanning 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

100 hp

Max power

100 hp

Weight

4070 kg

Catalogue coverage

Variants represented

Richest spec table

78 rows

Recorded power

100 hp

Recorded weight

4070 kg

Transmissions

12-speed synchromesh

Production years

2011-2011

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Utility tractorReference

Built in Canoas, BrazilReference

Drive4x2 2WDReference

Drive4x4 MFWD 4WD (optional)Reference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Two-post ROPS. Cab optional.Reference

Engine

Perkins 4.4L 4-cyl dieselReference

Engine74.6 kWReference

Perkins 1104.4CReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.4 LReference

Bore/Stroke105 x 127 mmReference

EmissionsTier IIReference

Power74.6 kWReference

Fuel systemdirect injectionReference

Torque415.1 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Oil capacity8.0 LReference

Fuel TypedieselReference

No of Cylinders4 cylindersReference

Emissions complianceTier IIReference

Engine torque at rated speed138.8 kgReference

Bore and stroke4.134x5.00 inchesReference

Cooling systemliquid-cooledReference

Transmission

12-speed synchromeshReference

TypesynchromeshReference

Gears12 forward and 4 reverseReference

Oil capacity46.0 LReference

Transmission TypeSync ShuttleReference

forward and reverse optionsSynchromesh : 12 F and 4 RReference

Wheel Drive4WDReference

Capacities

Fuel99.9 LReference

Fuel tank99.9 LReference

Crankcase oil volume8.5 qtsReference

PTO & Hydraulics

Hydraulic system46.2 LReference

Capacity46.2 LReference

Pressure170.0 barReference

Valves1 (ROPS)Reference

Valves2 (cab)Reference

Pump flow42.0 lpmReference

Rear lift3800 kgReference

Rear PTOliveReference

Rear PTOindependent (optional)Reference

Rear PTO Type540Reference

Rear PTO Type540/1000 (optional)Reference

Dimensions

Wheelbase236 cmReference

Weight4070 kgReference

Front tire9.00-16Reference

Rear tire18.4-34 (2WD)Reference

Standard tires (ag)Front: 9.00-16. Rear: 18.4-34 (2WD)Reference

Standard tires (ag)Front: 14.9-24. Rear: 18.4-34 (4WD)Reference

Length426 cmReference

Height (exhaust)263 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

General

Make & ModelMassey FergusonReference

Rollover protective structureTwo-post ROPS.Reference

Country of manufacturerBrazilReference

Power

Max Power100 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

BrakesHydraulic Wet DiscReference

Steering typeHydrostatic PowerReference

Hydraulics

Maximum operating pressure2,466 psiReference

Remote Valves1 (ROPS) | 2 (cab)Reference

Rear Hitch maximum lift capacity3,800.2 kgReference

Dimensions & weight

Overall Height263.9 cmReference

Overall Length427 cmReference

Overall weight4,070.1 kgReference

Wheels & tyres

Rear Wheel Type18.4-34 (2WD) | 18.4-34 (4WD)Reference

Front Wheel Type9.00-16.(2WD) | 14.9-24. (4WD)Reference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
